Triple play Fiber gateway with four 10/100Base-TX ports, BiDi single strand uplink, WiFi 11g AP, two
Product description

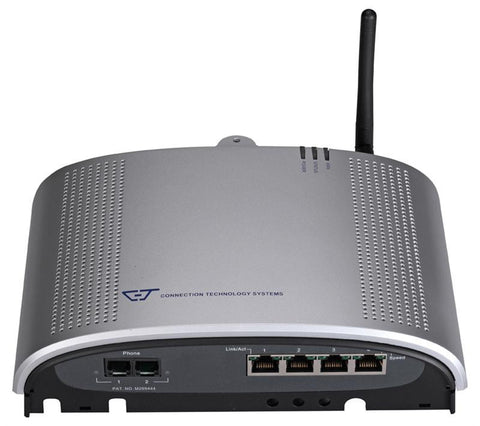

VRG21412-WFG-W2A is the most powerful Fiber Gateway designed for Fiber-To-The-Home (FTTH) applications. Unit provides 100Mbps of full duplex connection for subscribers through its single strand single-mode WDM fiber up-link port. Gateway has four Fast Ethernet RJ45 10/100Base-TX copper ports for local networking and also provides an 802.11g embedded WiFi Access Point and two FXS type VoIP based phone lines. The unit supports remote provisioning and management. Bandwidth control features allow Service Providers to better manage their network load and QoS Features. 802.1Q VLAN support allow deployment of future triple play services.
Features
- VRG-21412-WF-G supports NAT/Bridge hybrid mode to intelligently prioritize transported video/voice/data traffic and optimize the service performance as well as utilization of limited IP resource for service providers
- Offers Auto-MDI/MDI-X and 10/100Mbps auto-sensing support and WiFi 802.11g embedded Access Point
- Two FXS phone line ports offer telephony through VoIP based services (optional life-line function is available)
- Provides either DHCP auto provision or TR-069 option for scale deployment and reduced OPEX of device maintenance for service providers
- Popular SNMP trap message to rapidly identify network fault due to power outage and reduce truck rollls to save OPEX for service providers
- Built-in Cable Tray - keep excessive fiber inside the box. Save extra cost of buying a separate cable tray as well as saving installation space
Technical Specifications
|
|
|
|
|
Hardware Technical Specifications
LAN Interfaces: | Four RJ45 copper IEEE 802.3u 10/100Base-TX and 802.11g WiFi AP |
WAN interface: | Single-mode single strand WDM transceiver Tx:1310nm/Rx:1550nm |
Back LEDs: | PWR, WAN, Speed, Link, WiFi, Status |
Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug |
Temperature: | 0 5°C (Operating); -2°C 7°C (Storage) |
Humidity: | 20 80% non condensing (Operating); 0 90% (Storage) |
Consumption: | 7W |
Dimensions(WxDxH): | 210mm x 147mm x 50mm |
Management: | SNMP, web based mgmt |
Compliance: | CE, FCC Class A |
MTBF: | 55,000 hours |
Product Sheet:
