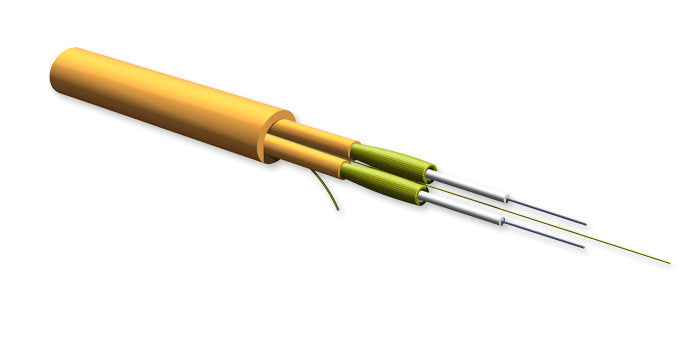

Fan-Out Cable, Riser, 2 F, 2.0 mm Subunits, 62.5/125 µm multimode (OM1)
General Specifications
| Environment | Indoor |
|---|---|
| Application | General Purpose Horizontal, Vertical Riser |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Flame Rating | Riser (OFNR) |
| Fiber Category | 62.5 µm MM (OM1) |
Standards
| Approval and Listings | National Electrical Code (NEC) OFNR, CSA FT-4, ICEA S-83-596 |
|---|---|
| Flame Resistance | UL-1666 (for riser and general building applications) |
Cable Design
| Central Element | Yarn |
|---|---|
| Fiber Count | 2 |
| Tight Buffer Color | White |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Subunit Jacket Material | Flame-retardant |
| Subunit Color | Orange |
| Number of Subunits | 2 |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Number of Ripcords | 1 |
| Outer Jacket Material | Flame-retardant |
| Outer Jacket Color | Orange |
| Subunit Diameter | 2.0 mm |
Temperature Range
| Storage | -40 øC to 70 øC (-40 øF to 158 øF ) |
|---|---|
| Installation | -10 øC to 60 øC (14 øF to 140 øF ) |
| Operation | -20 øC to 70 øC (-4 øF to 158 øF ) |
Mechanical Characteristics Cable
| Weight | 28 kg/km (19 lb/1000 ft) |
|---|---|
| Nominal Outer Diameter | 5.9 mm (0.2 in) |
| Max. Tensile Strengths, Short-Term | 660 N (150 lbf) |
| Max. Tensile Strengths, Long-Term | 200 N (45 lbf) |
| Min. Bend Radius Installation | 89 mm (3.5 in) |
| Min. Bend Radius Operation | 59 mm (2.3 in) |
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Optical Characteristics (cabled)
| Fiber Core Diameter | 62.5 µm |
|---|---|
| Fiber Type | Multimode |
| Fiber Category | OM1 |
| Fiber Code | K |
| Performance Option Code | 30 |
| Wavelengths | 850 nm / 1300 nm |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz*km / 500 MHz*km |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz*km / - MHz*km |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - m |
