Freedm One Riser Cables, Single-Mode (OS2), 6 Strands

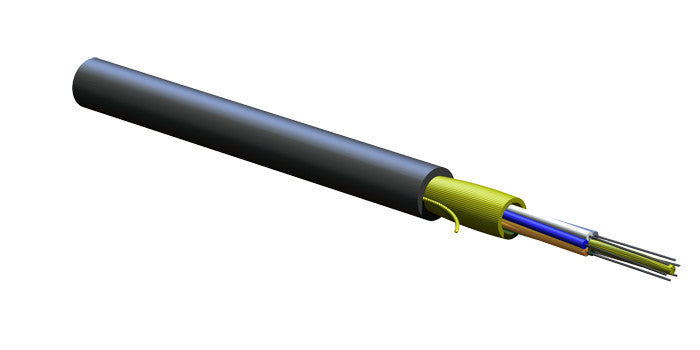

Move your mouse over image or click to enlarge

Freedm One Riser Cables, Single-Mode (OS2), 6 Strands

Corning Part No.: 006E8F-31131-29

  • $ 0.72 or
  • per foot


General Specifications

Environment Indoor/Outdoor Cables
Application Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser
Cable Type Tight-Buffered
Product Type Dielectric
Flame Rating Riser (OFNR)
Fiber Category Single-mode (OS2)

Standards

Approval and Listings National Electrical Code (NEC) OFNR, FT-4
Design and Test Criteria ICEA S-104-696

Cable Design

Central Element Dielectric
Fiber Count 6
Tight Buffer Color Blue, Orange, Green, Brown, Slate, White
Tensile Strength Elements and/or Armoring - Layer 1 Water-swellable strength members
Number of Ripcords 1
Outer Jacket Material Flame-Retardant, UV-Resistant
Outer Jacket Color Black

Temperature Range

Storage -40 øC to 70 øC (-40 øF to 158 øF )
Installation -10 øC to 60 øC (14 øF to 140 øF )
Operation -40 øC to 70 øC (-40 øF to 158 øF )

Mechanical Characteristics Cable

Weight 26 kg/km (18 lb/1000 ft)
Nominal Outer Diameter 5.5 mm (.22 in)
Min. Bend Radius Installation 83 mm (3.2 in)
Min. Bend Radius Operation 28 mm (1.1 in)
Max. Tensile Strengths, Short-Term 675 N (150 lbf)
Max. Tensile Strengths, Long-Term 200 N (45 lbf)

Chemical Characteristics

RoHS Free of hazardous substances according to RoHS 2002/95/EG

Optical Characteristics (cabled)

Fiber Type Single-mode
Fiber Core Diameter 8.2 æm
Fiber Category OS2
Fiber Code E
Performance Option Code 31
Wavelengths 1310 nm / 1383 nm / 1550 nm
Maximum Attenuation 0.65 dB/km / 0.65 dB/km / 0.5 dB/km
Serial 1 Gigabit Ethernet 5000 m / - m / - m
Serial 10 Gigabit Ethernet 10000 m / - m / 40000 m
