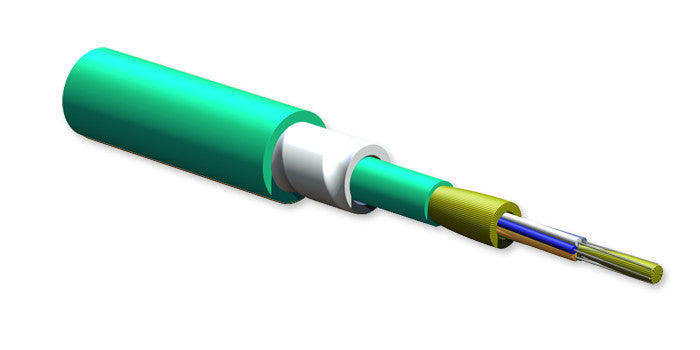

MIC DX Armored Cable, Plenum, 6 F, Laser-Optimized 50/125 µm multimode (OM3)
Move your mouse over image or click to enlarge

MIC DX Armored Cable, Plenum, 6 F, Laser-Optimized 50/125 µm multimode (OM3)

Corning Part No.: 006T88-31180-D3

  • $ 2.67 or
  • per foot


General Specifications

Environment Indoor
Application General Purpose Horizontal, Plenum
Cable Type Tight-Buffered
Product Type Dielectric armor
Flame Rating Plenum (OFNP)
Fiber Category 50 ‘m MM (OM3)

Standards

Approval and Listings National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596
Flame Resistance NFPA 262 (for plenum, riser and general building applications)

Cable Design

Fiber Count 6
Tight Buffer Color Blue, Orange, Green, Brown, Slate, White
Tensile Strength Elements and/or Armoring - Layer 1 Dielectric strength members
Inner Jacket Material Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 3 Dielectric armor
Outer Jacket Material Flame-retardant
Outer Jacket Color Aqua

Temperature Range

Storage -40 C to 70 C (-40 F to 158 F )
Installation 0 C to 60 C (32 F to 140 F )
Operation 0 C to 70 C (32 F to 158 F )

Mechanical Characteristics Cable

Nominal Inner Cable Diameter 4.4 mm (0.17 in)
Nominal Outer Diameter 10.5 mm (0.41 in)
Weight 123.9 kg/km (83.3 lb/1000 ft)
Max. Tensile Strengths, Short-Term 890 N (200 lbf)
Max. Tensile Strengths, Long-Term 444 N (100 lbf)
Min. Bend Radius Installation 158 mm (6.2 in)
Min. Bend Radius Operation 105 mm (4.1 in)

Optical Characteristics (cabled)

Fiber Type Multimode
Fiber Core Diameter 50 ‘m
Fiber Category OM3
Fiber Code T
Performance Option Code 80
Wavelengths 850 nm / 1300 nm
Maximum Attenuation 2.8 dB/km / 1 dB/km
Min. Overfilled Launch (OFL) Bandwidth 1500 MHz*km / 500 MHz*km
minimum Effective Modal Bandwidth (EMB) 2000 MHz*km / - MHz*km
Serial 1 Gigabit Ethernet 1000 m / 600 m
Serial 10 Gigabit Ethernet 300 m / - m
Induced Attenuation @ 7.5 mm Radius < 30 dB up to 80 dB
