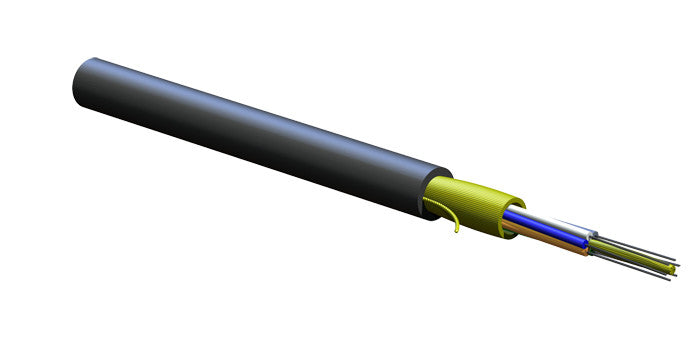

Freedm One Riser Cables, Laser-optimizes 50/125 Multimode (Pretium 300/OM3), 6 Strands
General Specifications
| Environment | Indoor/Outdoor Cables |
|---|---|
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser, Plenum |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric |
| Flame Rating | Plenum (OFNP) |
| Fiber Category | Single-mode (OS2) |
Standards
| Approval and Listings | National Electrical Code (NEC) OFNP, CSA FT-6 |
|---|---|
| Design and Test Criteria | ICEA S-104-696 |
Cable Design
| Central Element | Dielectric |
|---|---|
| Fiber Count | 24 |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White*, Red*, Black*, Yellow*, Violet*, Rose*, Aqua* |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable strength members |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Outer Jacket Color | Black |
Temperature Range
| Storage | -40 øC to 70 øC (-40 øF to 158 øF ) |
|---|---|
| Installation | 0 øC to 60 øC (32 øF to 140 øF ) |
| Operation | -40 øC to 70 øC (-40 øF to 158 øF ) |
Mechanical Characteristics Cable
| Weight | 65 kg/km (44 lb/1000 ft) |
|---|---|
| Nominal Outer Diameter | 8.0 mm (.31 in) |
| Min. Bend Radius Installation | 120 mm (4.7 in) |
| Min. Bend Radius Operation | 40 mm (1.6 in) |
| Max. Tensile Strengths, Short-Term | 1350 N (300 lbf) |
| Max. Tensile Strengths, Long-Term | 400 N (90 lbf) |
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Optical Characteristics (cabled)
| Fiber Type | Single-mode |
|---|---|
| Fiber Core Diameter | 8.2 æm |
| Fiber Category | OS2 |
| Fiber Code | E |
| Performance Option Code | 31 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Maximæm Attenuation | 0.65 dB/km / 0.65 dB/km / 0.5 dB/km |
| Serial 1 Gigabit Ethernet | 5000 m / - m / - m |
| Serial 10 Gigabit Ethernet | 10000 m / - m / 40000 m |
