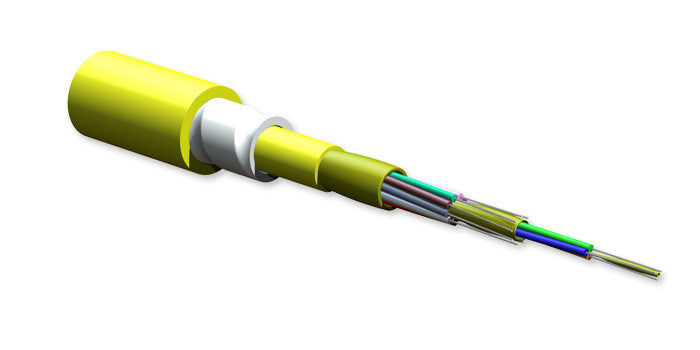

MIC DX Armored Cable, Plenum, 12 F, 8.3/125 Single-mode (OS2)
General Specifications
| Environment | Indoor |
|---|---|
| Application | General Purpose Horizontal, Plenum |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric armor |
| Flame Rating | Plenum (OFNP) |
| Fiber Category | Single-mode (OS2) |
Standards
| Approval and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
|---|---|
| Flame Resistance | NFPA 262 (for plenum, riser and general building applications) |
Cable Design
| Fiber Count | 12 |
|---|---|
| Tight Buffer Color | Blue, Orange, Green |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tight Buffer Color, Layer 2 | Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 3 | Dielectric armor |
| Outer Jacket Material | Flame-retardant |
| Outer Jacket Color | Yellow |
Temperature Range
| Storage | -40 øC to 70 øC (-40 øF to 158 øF ) |
|---|---|
| Installation | 0 øC to 60 øC (32 øF to 140 øF ) |
| Operation | 0 øC to 70 øC (32 øF to 158 øF ) |
Mechanical Characteristics Cable
| Nominal Inner Cable Diameter | 5.6 mm (0.22 in) |
|---|---|
| Nominal Outer Diameter | 11.5 mm (0.45 in) |
| Weight | 143.3 kg/km (96.3 lb/1000 ft) |
| Max. Tensile Strengths, Short-Term | 1000 N (225 lbf) |
| Max. Tensile Strengths, Long-Term | 593 N (133 lbf) |
| Min. Bend Radius Installation | 173 mm (6.8 in) |
| Min. Bend Radius Operation | 115 mm (4.5 in) |
Optical Characteristics (cabled)
| Fiber Type | Single-mode |
|---|---|
| Fiber Core Diameter | 8.2 æm |
| Fiber Category | OS2 |
| Fiber Code | E |
| Performance Option Code | 31 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Maximæm Attenuation | 0.65 dB/km / 0.65 dB/km / 0.5 dB/km |
| Serial 1 Gigabit Ethernet | 5000 m / - m / - m |
| Serial 10 Gigabit Ethernet | 10000 m / - m / 40000 m |
