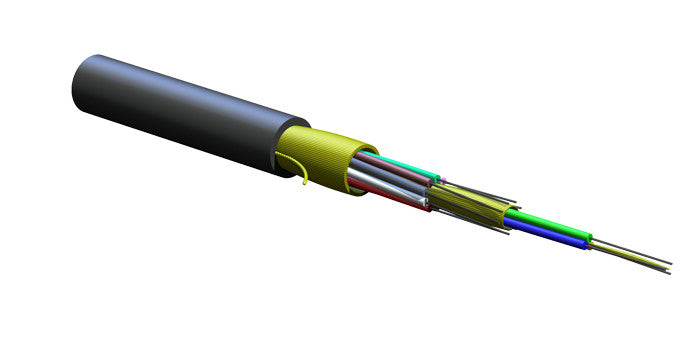

Freedm One Riser Cables, Laser-optimizes 50/125 Multimode (Pretium 300/OM3), 12 Strands
General Specifications
Environment | Indoor/Outdoor Cables |
---|---|
Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
Cable Type | Tight-Buffered |
Product Type | Dielectric |
Flame Rating | Riser (OFNR) |
Fiber Category | 50 µm MM (OM3) |
Standards
Approval and Listings | National Electrical Code (NEC) OFNR, FT-4 |
---|---|
Design and Test Criteria | ICEA S-104-696 |
Cable Design
Central Element | Dielectric |
---|---|
Fiber Count | 12 |
Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable strength members |
Number of Ripcords | 1 |
Outer Jacket Material | Flame-Retardant, UV-Resistant |
Outer Jacket Color | Black |
Temperature Range
Storage | -40 øC to 70 øC (-40 øF to 158 øF ) |
---|---|
Installation | -10 øC to 60 øC (14 øF to 140 øF ) |
Operation | -40 øC to 70 øC (-40 øF to 158 øF ) |
Mechanical Characteristics Cable
Weight | 36 kg/km (24 lb/1000 ft) |
---|---|
Nominal Outer Diameter | 6.5 mm (.26 in) |
Min. Bend Radius Installation | 98 mm (3.8 in) |
Min. Bend Radius Operation | 33 mm (1.3 in) |
Max. Tensile Strengths, Short-Term | 675 N (150 lbf) |
Max. Tensile Strengths, Long-Term | 200 N (45 lbf) |
Chemical Characteristics
RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
---|
Optical Characteristics (cabled)
Fiber Type | Multimode |
---|---|
Fiber Core Diameter | 50 µm |
Fiber Category | OM3 |
Fiber Code | T |
Performance Option Code | 80 |
Wavelengths | 850 nm / 1300 nm |
Maximum Attenuation | 2.8 dB/km / 1 dB/km |
Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - MHz*km |
Serial 1 Gigabit Ethernet | 1000 m / 600 m |
Serial 10 Gigabit Ethernet | 300 m / - m |
Induced Attenuation @ 7.5 mm Radius | < 30 dB up to 80 dB |
