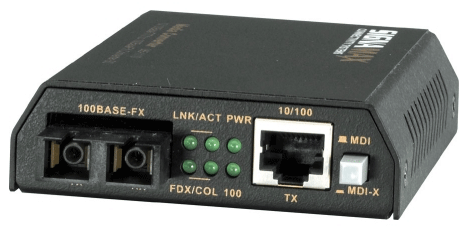

Signamax Media Converter SC Singlemode 10/100 Base T/TX to 100 Base FX 15km

SignaMax Part No.: 065-1120

  • $ 435.00 or

Signamax Media Converter SC Singlemode 10/100 Base T/TX to 100 Base FX 15km

  • DIP switch configuration for link fault signaling, fiber auto/force mode, and SFP speed
  • Built-In 10/100BaseT/TX Switch utilizes store-and-forward architecture
  • Supports wall mounting, DIN-rail mounting, or use with media converter rack mount chassis
  • LEDs for functions, links, and activity
  • Limited lifetime warranty

The Signamax 10/100 to 100FX Media Converters with Link Fault Signaling provides the means for an SNMP-managed switch to recognize a failure on a fiber channel or twisted-pair connection, enabling the switch to automatically route to a backup path if the connected switch is equipped with Spanning Tree Algorithm. This intelligence maximizes the power of managed switches and enables fail-safe design solutions for complex networks. These converters also extend the maximum single mode fiber distance, spanning over 46 miles with certain options.

The built-in 10/100 switch enables the fiber cable connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network while remaining completely 100BaseFX standard-compliant. Fiber connection can also operate in full-duplex mode whether the RJ-45 port is connected to a full-duplex switch or a half-duplex hub, with the built-in switch providing the network segmentation that permits the maximum fiber distance.



Sold Out
