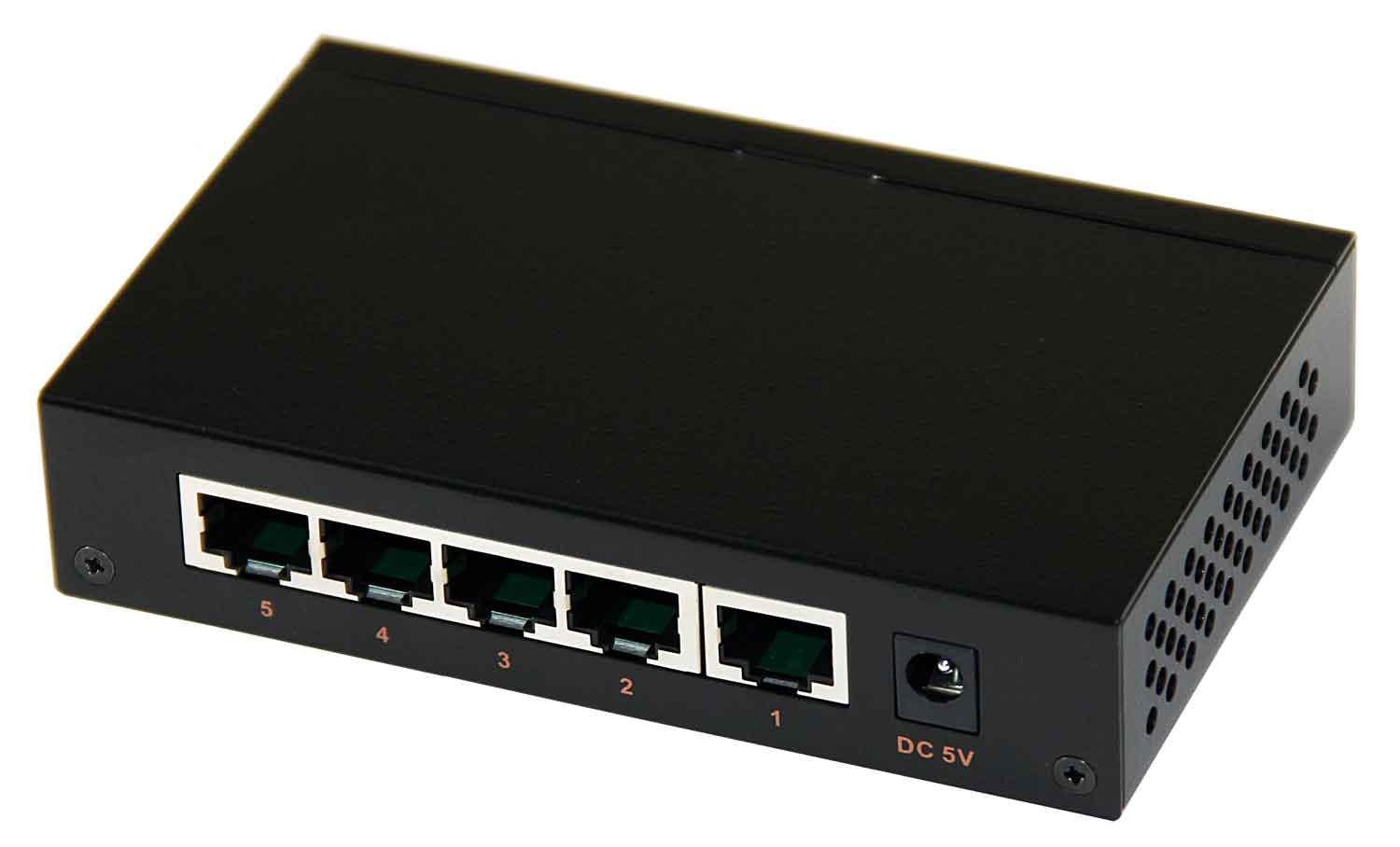

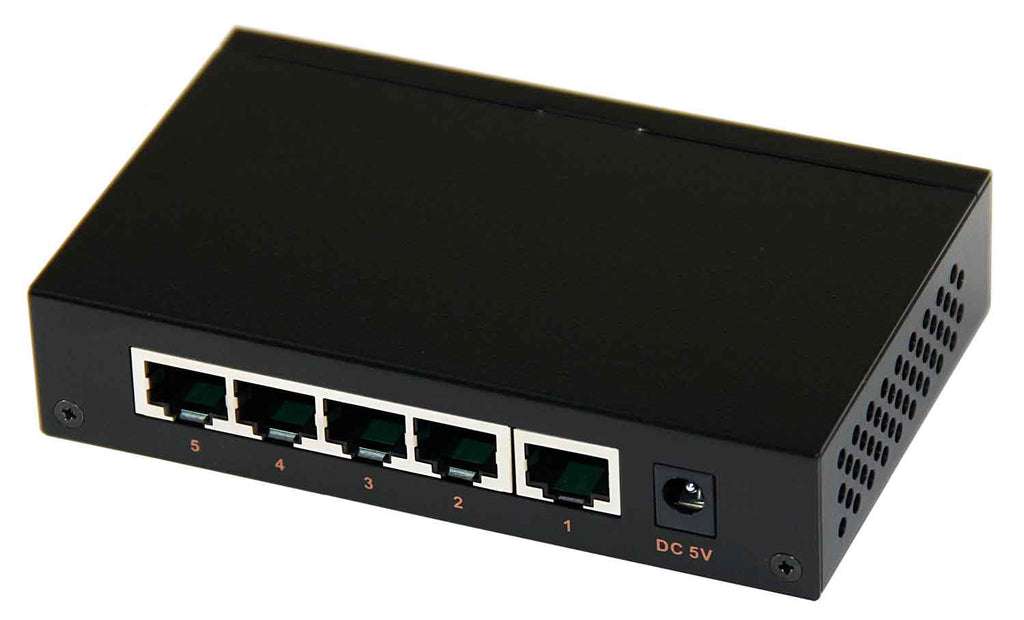

5-port 10/100 Unmanaged Desktop Switch
Move your mouse over image or click to enlarge

5-port 10/100 Unmanaged Desktop Switch

SignaMax Part No.: 065-7007A

  • $ 34.55 or


5-port 10/100 Unmanaged Desktop Switch.

KEY FEATURES

  • Full/Half Duplex to Each Port
  • Segment & Interconnect Networks
  • 10/100 Mbps Auto Sensing
  • Plug n Play - No Software Needed
  • Auto-MDIX on All Ports for Easy Uplink Capability
  • Mini-Sized Metal Case
  • NWAY Auto Negotiation
  • Five Year Performance Warranty

Product Sheet:

SPECIFICATIONS

  • APPLICABLE STANDARDS

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3x Flow Control

ANSI/IEEE 802.3 NWay Auto-negotiation

  • PORTS

Model 065-7007A: 5 - RJ-45 10/100BaseT/TX Auto-MDI ports (IEEE 802.3 Type 10BaseT; 802.3u Type 100BaseTX)

  • LED STATUS INDICATORS

Per Switch: Power

Per Port: Link/Activity, 100BaseTX speed selected

  • PERFORMANCE

Throughput: 148,809 pps (64-byte packets)

Switch Fabric Speed:

Model 065-7007A: 1.0 Gbps

Model 065-7012A: 1.6 Gbps

Address Table Size (both models): 1,024 entries

  • PHYSICAL CHARACTERISTICS

Dimensions & Weight:

Model 065-7007A: 4.72"W x 2.95"D x 0.9"H (120 mm x 75 mm x 23 mm), 0.55 lbs. (250 g.)

  • POWER

External power supply, 5 V DC, 0.6 A, center contact positive

  • WARRANTY

Five years manufacture warranty, including power supply
