24-Port 10/100/1000BaseT/TX Unmanaged Switch with 2-1000Base SFP Ports
Move your mouse over image or click to enlarge

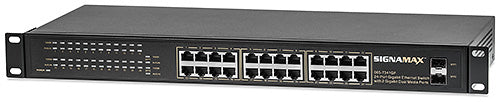

24-Port 10/100/1000BaseT/TX Unmanaged Switch with 2-1000Base SFP Ports

SignaMax Part No.: 065-7341GF

  • $ 333.95 or



The Signamax 24-Port 10/100/1000 Unmanaged Switch with two SFP Ports is designed to provide Gigabit Ethernet power in a simple plug-and-play switch sized for office or work group environments. This rack mountable form is equipped with 24 10/100/1000BaseT/TX RJ-45 ports, plus two Gigabit SFP receptacles.

As an unmanaged switch, this model has no requirement for manual configuration — just plug and go. The option is rugged, cost-effective, and is the easy answer for Gigabit Ethernet deployment.

  • Gigabit Ethernet power in a simple plug-and-play switch
  • IEEE 802.3x Flow Control for full duplex operation support
  • LED indicators for port status activity.
  • Fanless design for silent operation

APPLICABLE STANDARDS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3 Auto-Negotiation
IEEE802.3x Flow Control

PORTS
24 – RJ-45 10/100/1000BaseT/TX Auto-Negotiation, Auto-MDI/MDIX ports, plus
2 Gigabit SFP ports

LED STATUS INDICATORS
Per Switch: Power
Per Port: Link/Activity, 1000 Mbps

PERFORMANCE
Latency: <4.3 μs (FIFO)
Throughput, per port: @ 10Base: 14,880 pps; @ 100Base: 148,810 pps; @ 1000Base: 1,488,100 pps (64-byte packets)
Switch Fabric Speed: 48.0 Gbps (non-blocking, wire speed performance)
MAC Address Capacity: 8K

ELECTRICAL CHARACTERISTICS
AC Input Range: 100 – 240 V AC, 50/60 Hz internal universal power supply

ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Operating Humidity: 10% to 90% (non-condensing)

PHYSICAL CHARACTERISTICS
Dimensions: 17.4” W x 7.09” D x 1.73” H (442 mm x 180 mm x 44 mm)
19 in rack mounting hardware included.
Weight: 5.28 lb (2.4 kg)

CERTIFICATIONS
CE, FCC, ROHS, VCCI Class A

WARRANTY
Five years (Including power supply)
