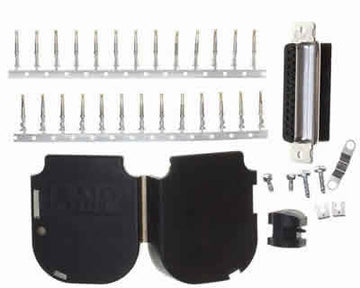

Db25 Crimp Female Kit With Plastic Shell Hood Contacts And Hardware RoHS

TE Connectivity Part No.: 1-749812-1

  • $ 16.30 or



Features:

    • Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
    • Industry Standards.Lead Free Solder Processes: Not relevant for lead free process
    • Body Features.number of Positions: 25
    • Packaging Features.Packaging Method: Bulk
    • Housing Features.UL Flammability Rating: UL 94V-0
    • Housing Features.Housing Color: Black
    • Housing Features.Connector Style: Receptacle
    • Product Type Features.Product Type: Connector
    • Contact Features.Contact Type: Socket
    • Product Type Features.Shell Size: 3
    • Packaging Features.Packaging Quantity: 100
    • Body Features.Cable Exit Angle: Straight(180)/120
    • Contact Features.Preloaded: Yes
    • Electrical Characteristics.Shielded: No
    • Product Type Features.Grade: Standard
    • Product Type Features.Grommets: Without
    • Product Type Features.Cable Clamp Type: One-Piece Quick Snap
    • Body Features.Cable Insulation Diameter (mm [in]): 4.57 11.68 [0.180 0.460]
    • Housing Features.Housing Material: Nylon, Polyester GF
    • Product Type Features.Product Series: HDP-20 (Crimp Snap)
    • Product Type Features.Shell Type: Full Metal Shell
    • Termination Features.Solder Tail Contact Plating: Tin over Nickel
    • Contact Features.Contact Base Material: Phosphor Bronze
    • Product Type Features.Mating Connector Lock Type: Mounting Screws, Retainer Clip
    • Product Type Features.Mating Connector Lock: With
    • Contact Features.Contact Plating, Mating Area, Material: Gold Flash
    • Product Type Features.Screw Material: Steel
    • Mechanical Attachment.Mounting Screw Material: Steel
    • Mechanical Attachment.Screw Plating: Zinc
    • Product Type Features.Retainer Clip Material: Stainless Steel
    • Product Type Features.Screws and Retainer Clips: With
    • Product Type Features.Strain Relief Clip Material: Stainless Steel
    • Body Features.Wire Range (mm [AWG]): 0.2 - 0.56 [24-20]
    • Mechanical Attachment.Mounting Screw Plating: Zinc
    • Product Type Features.Cover Material: Polypropylene
    • Body Features.Cable Gate Plug Material: Polypropylene

Product Sheet:
