Overview

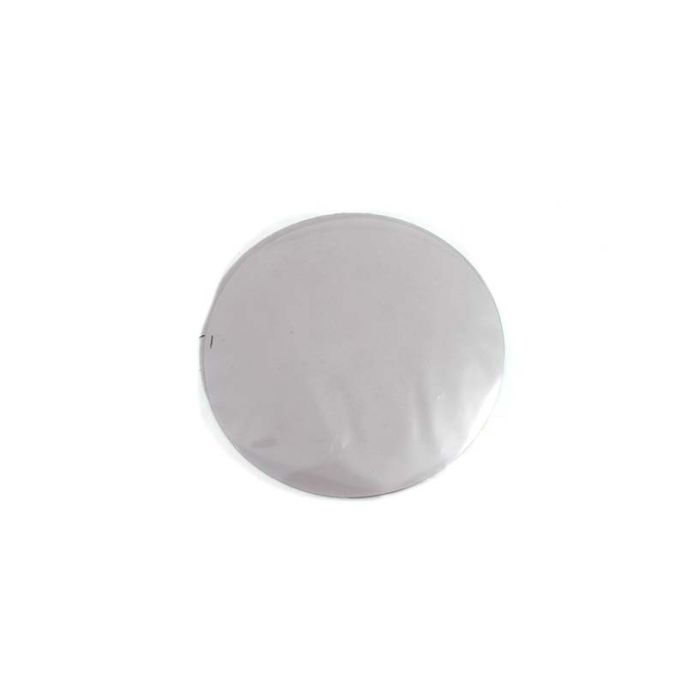

This 1µm diamond lapping film is specifically engineered for precision machine polishing of fiber optic connector end faces. These 4-inch discs provide a consistent and controlled abrasive surface, essential for achieving the industry-standard finishes required for high-performance optical connections.
Designed for compatibility with standard fiber optic polishing machines, this film features a 3 mil backing for structural stability during the polishing cycle. The violet color coding allows for quick identification of the 1µm grit size in a multi-step polishing process, ensuring reliability in data center and telecommunications environments.
Key Features
-
1µm Grit Size
Provides precise material removal and surface smoothing for high-quality connector end face geometry. -
4-inch Diameter
Standard sizing ensures compatibility with common fiber optic machine polishing equipment. -
Violet Color Coding
Enables instant visual identification to prevent mix-ups during multi-stage polishing sequences. -
3 mil Backing
Offers optimal rigidity and durability during intensive mechanical polishing cycles. -
Plain Back Design
Constructed without Pressure Sensitive Adhesive (PSA), allowing for versatile use on various machine platens. -
10-Pack Quantity
Supplied in a convenient volume for routine maintenance and small-scale production runs.
Applications
- Fiber optic connector end face polishing
- Machine-based fiber termination
- Optical component manufacturing
- Data center cable assembly maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F101071DD10 |
| Grit Size | 1µm |
| Disc Diameter | 4 inches |
| Color | Violet |
| Backing Material | 3 mil |
| Adhesive | Plain (No PSA) |
| Package Quantity | 10 Sheets |
Frequently Asked Questions
Is this film compatible with PSA-based machines?
This version features a plain back (no PSA). Please verify if your machine requires adhesive or a non-adhesive attachment method.
What is the primary use for 1µm grit film?
1µm diamond film is typically used in the intermediate or fine polishing stages to refine the end-face finish after initial material removal.
Are these discs suitable for hand polishing?
These are designed for machine polishing to ensure consistent pressure and uniform results, though they can be used for manual processes depending on your specific requirements.
