Overview

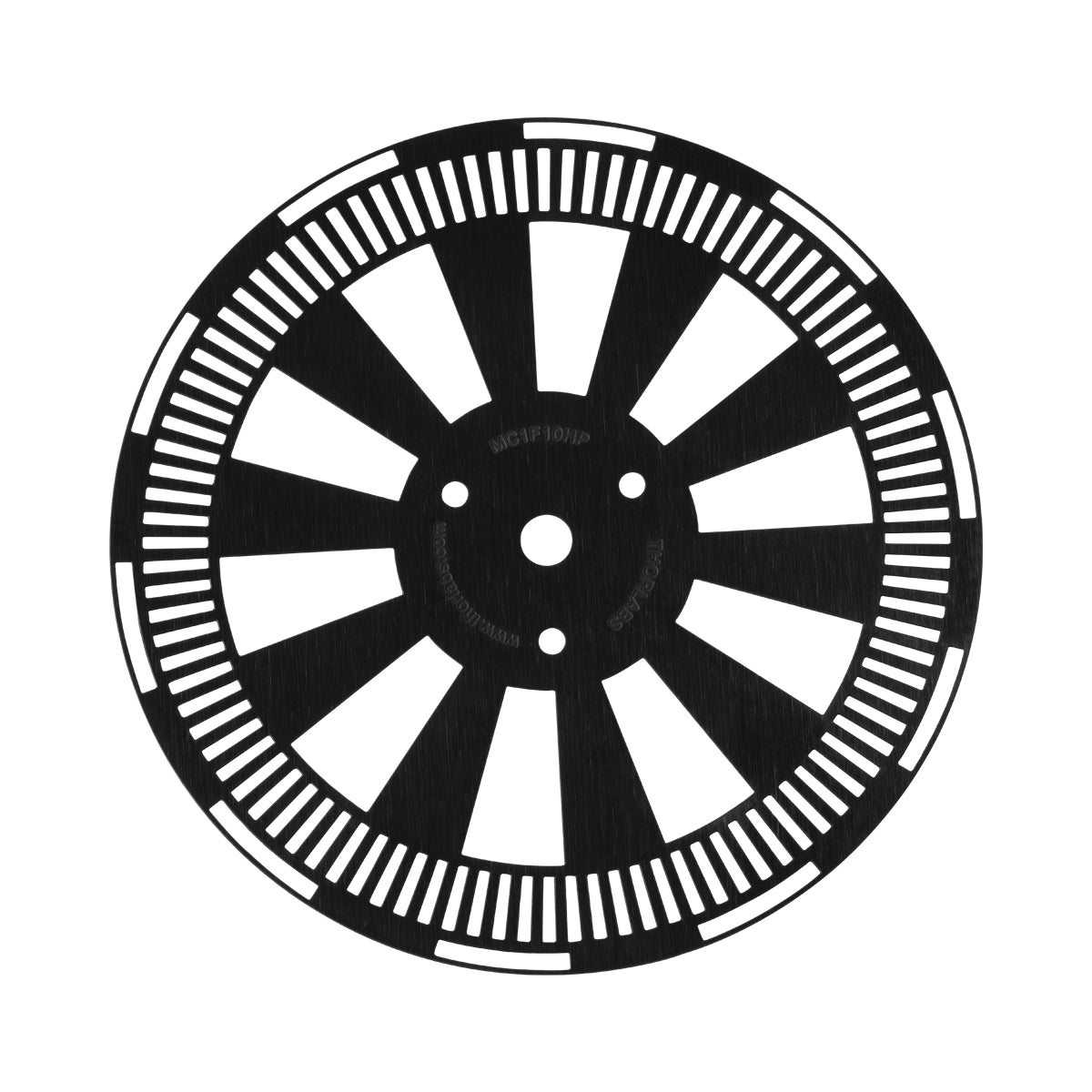

The MC1F10HP is a high-precision dual-frequency chopper blade designed for use with optical chopper systems. This blade features a dual-slot configuration, offering both 10-slot and 100-slot sections to provide a wide frequency range from 20 Hz to 10 kHz.
Engineered for stability and precise light modulation, the blade is constructed to maintain performance across varied experimental setups. It is intended for laboratory environments where accurate mechanical light chopping is required for signal recovery and lock-in detection applications.
Key Features
-
Dual-Slot Configuration
Features both 10-slot and 100-slot patterns, providing users with a versatile frequency range of 20 Hz to 10 kHz. -
High Precision Design
Manufactured to high-precision standards to ensure consistent modulation and reduced jitter during operation. -
Modular Compatibility
Designed specifically for integration with standard optical chopper systems, simplifying setup within existing optical chains. -
Durable Construction
Engineered for long-term use in research and metrology laboratory environments. -
Broad Frequency Range
Supports operation from 20 Hz up to 10 kHz, accommodating a diverse set of signal processing requirements. -
Standardized Mechanical Fit
Engineered for precise alignment with compatible chopper heads to ensure immediate operational readiness.
Applications
- Optical signal modulation
- Lock-in amplification experiments
- Laser beam intensity control
- Signal-to-noise ratio enhancement
- Spectroscopy and light analysis systems
Technical Specifications
| Specification | Value |
|---|---|
| Model | MC1F10HP |
| Slot Configuration | 10 / 100 Slots |
| Frequency Range | 20 Hz to 10 kHz |
| Precision | High Precision |
| Weight | 0.07 lbs |
| Warranty | Two years |
Frequently Asked Questions
What is the primary function of the MC1F10HP blade?
It is a high-precision dual-frequency blade used to modulate light beams within an optical chopper system.
What frequency range does this blade cover?
It supports frequencies from 20 Hz to 10 kHz, depending on the slot selection.
Is this blade compatible with all chopper systems?
This blade is designed for the Thorlabs Optical Chopper System series; please refer to your specific chopper head documentation for compatibility confirmation.
What does the dual frequency mean?
The blade includes two different slot counts (10 and 100), allowing the operator to switch between frequency ranges for specific experimental needs.
Does the blade come with a warranty?
Yes, it includes a two-year manufacturer warranty.
