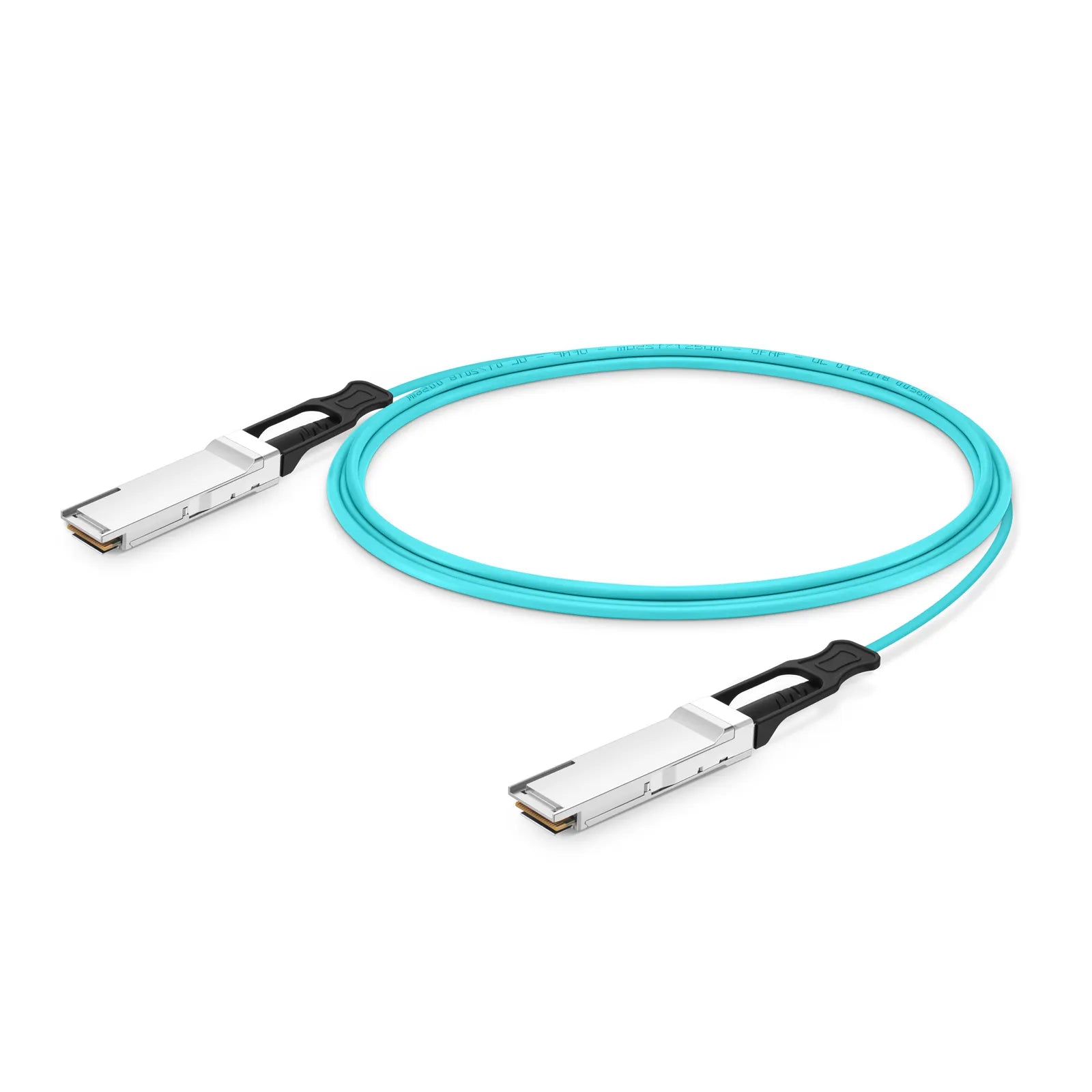

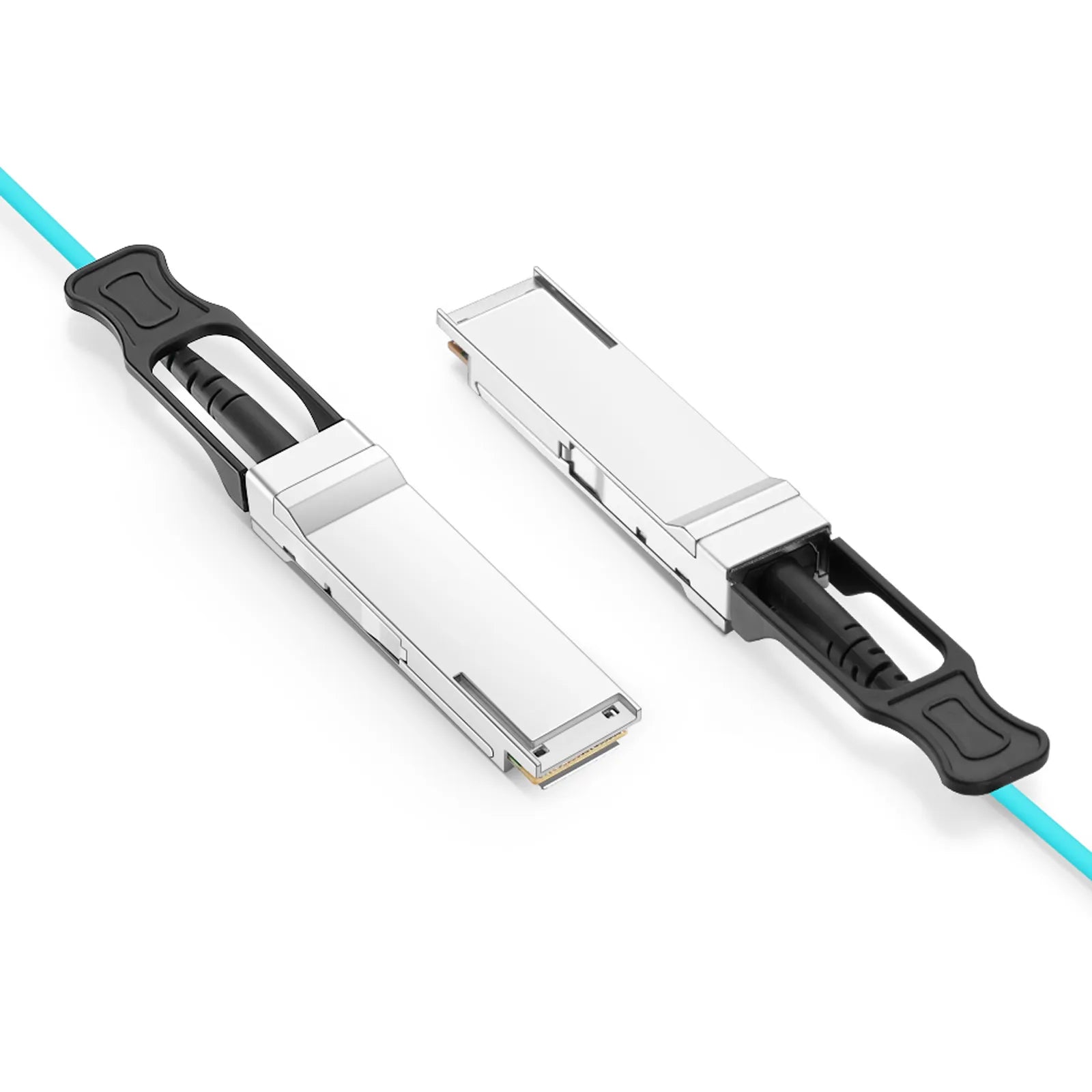

10m (33ft) NVIDIA/Mellanox Compatible 400G QSFP112 InfiniBand NDR Active Optical Cable for ConnectX-7 HCA

The FS-QSFP-400G-AO10 active optical cable is an 4-channel, pluggable, parallel, fiber optic 400G QSFP112 AOC. This active optical cable is compliant with QSFP112 MSA and IEEE 802.3 ck-400GAUI-4.

Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability.

Specifications

• Part Number: FS-QSFP-400G-AO10

• Form Factor: FS-QSFP112 to FS-QSFP112

• Max. Data Rate: 400Gbps

• Cable Length: 10m (33ft)

• Cable Type: AOC

• Wavelength: 850nm

• Minimum Bend Radius: 30mm

• Transmitter Type: VSCEL

• Receiver Type: PIN

• Power Consumption: ≤10W Per End

• Jacket Material: OFNP

• CDR (Clock and Data Recovery): TX & RX Built-in CDR

• Modulation Format: 4x 100G-PAM4

• DDM/DOM: Supported

• Temperature Range: 0 to 70°C (32 to 158°F)

• Protocols: CMIS 4.0, IEEE 802.3 ck-400GAUI-4, QSFP112 MSA

• Warranty: 5 Years

Product Highlights

• Max. Power Consumption 10W Per End

• Tested in Targeted Switches for Superior Performance, Quality, and Reliability

• Increased Reliability-VCSEL, No MPO Connectors, Low BER

• Thin and Light Weight Fiber with High Air Flow for Flexible Routing

• OFNP-rated, Resistant to High Temperature and Corrosion

• High-speed Electrical Compliant to IEEE 802.3ck

• 4x100G PAM4 Retimed 400GAUI-4 Electrical Interface

• Hot Pluggable QSFP112 MSA Compliant

• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
• Cable Type: AOC
• Max. Data Rate: 400Gbps
• Form Factor: QSFP112 to QSFP112
• Cable Length: 1-30m (3ft-98ft)
• Modulation: 4x 100G-PAM4
• Minimum Bend Radius: 30mm
• Power Consumption: ≤10W Per End
• Jacket Material: OFNP
• Temperature: 0 to 70°C (32 to 158°F)
