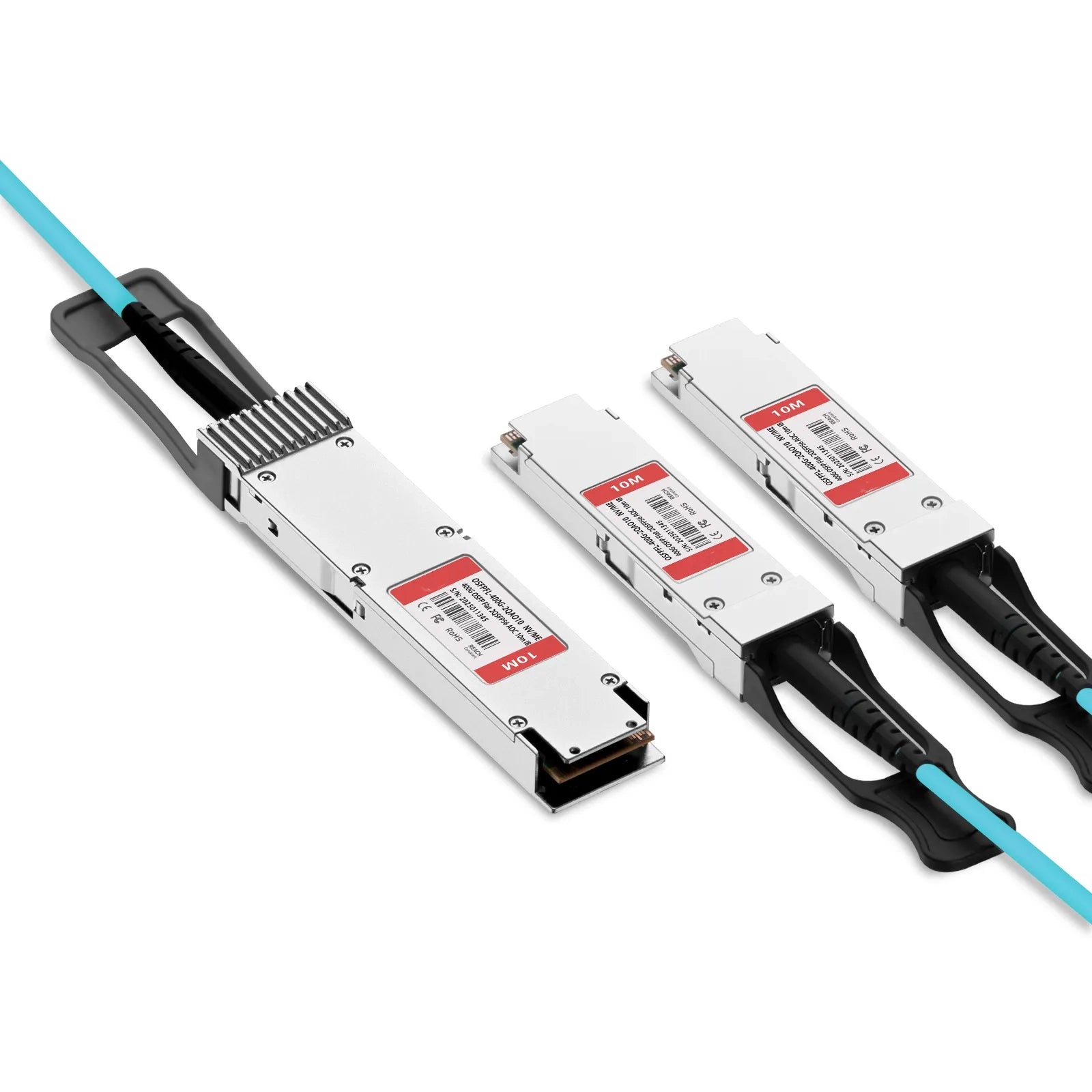

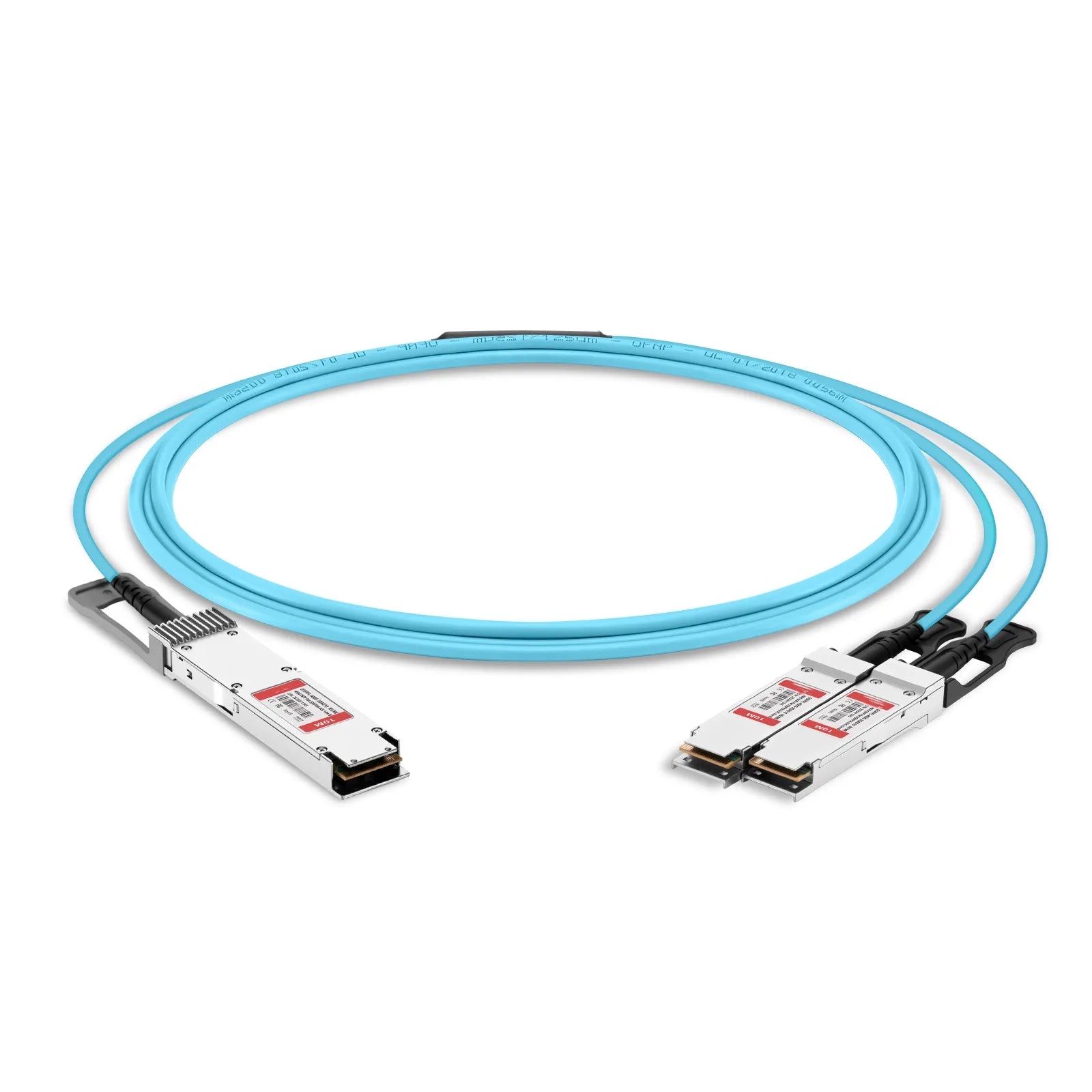

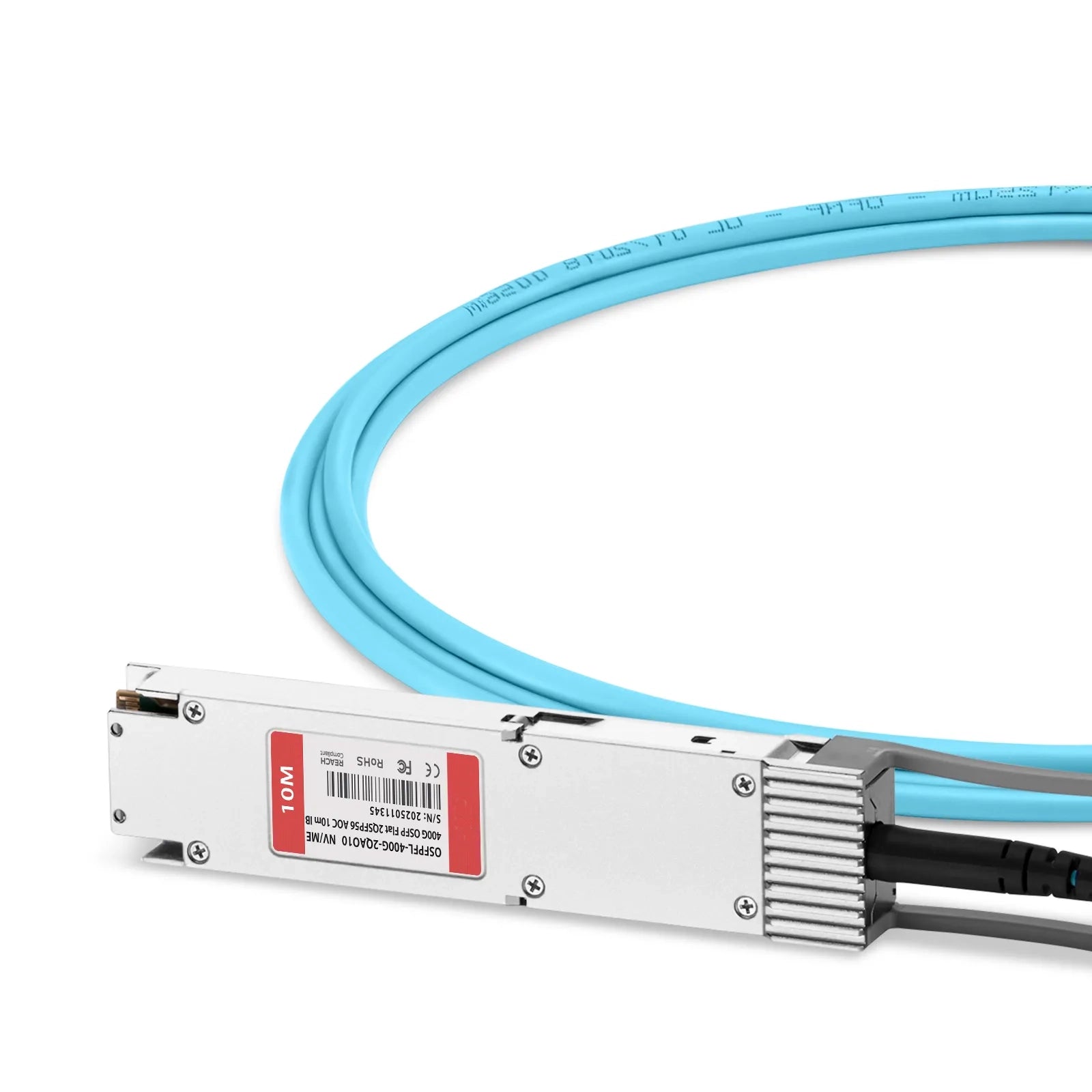

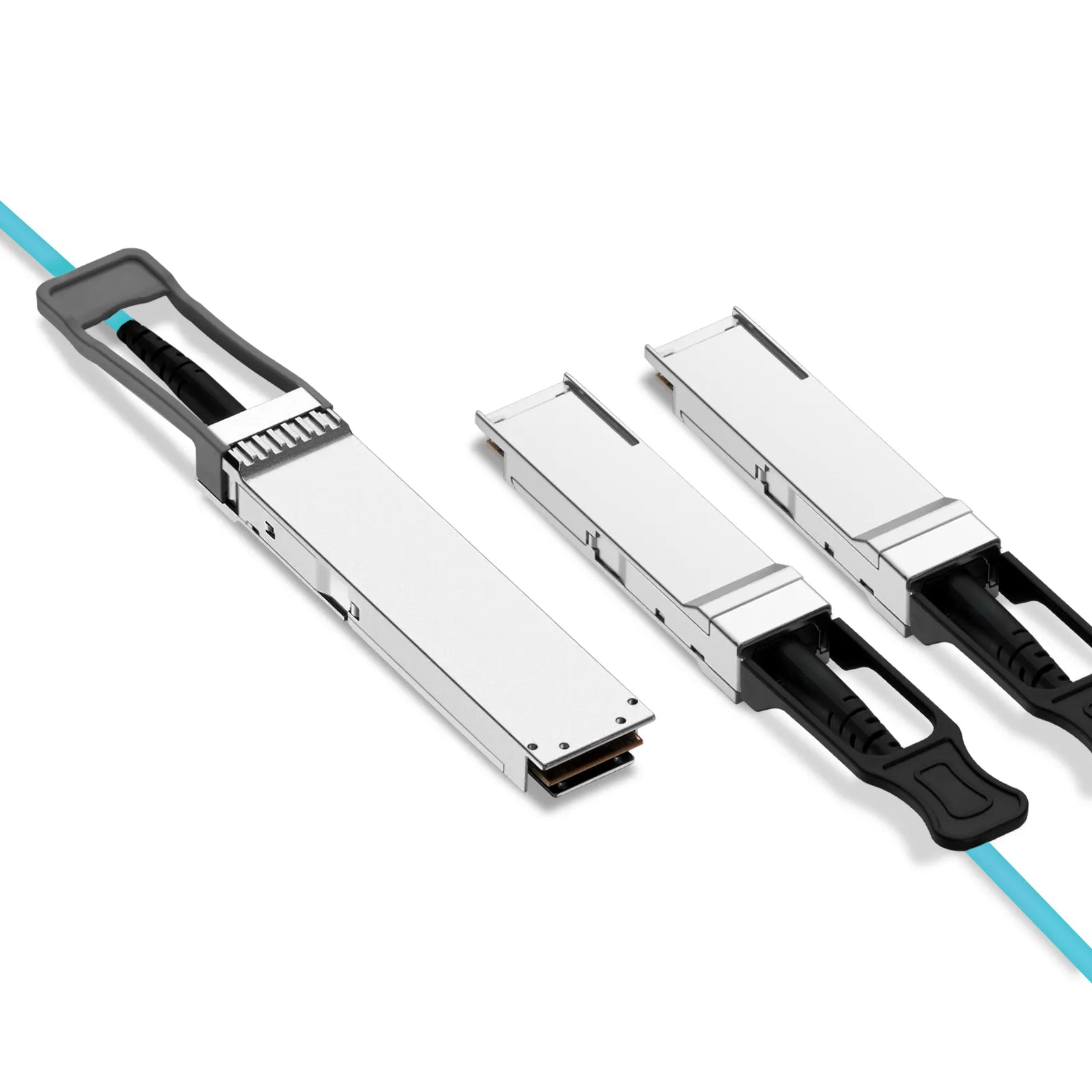

10m (33ft) NVIDIA/Mellanox MFA7U10-H010-FLT Compatible 400G OSFP Flat Top to 2 x 200G QSFP56 InfiniBand HDR Active Optical Breakout Cable for Quantum Switches and ConnectX-7 HCA

The OSFPFL-400G-2QAO10 active optical cable is an 8-channel, pluggable, parallel, fiber optic 400G OSFP-RHS to 2 x 200G QSFP56 AOC. It integrates 8 data lanes in each direction at OSFP end and 4 data lanes in each direction at QSFP end.

These modules are designed to work in management and storage networks.

This active optical cable is compliant with IEEE 802.3 bs-2*200GAUI-4, IEEE 802.3 bs-200GAUI-4, OSFP MSA, and SFF-8661.

Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability.

Specifications

• NVIDIA/Mellanox InfiniBand Compatible: MFA7U10-H010-FLT

• Form Factor: OSFP (Flat Top) to 2x QSFP56

• Max. Data Rate: 400Gbps

• Cable Length: 10m (33ft)

• Cable Type: Breakout AOC

• Wavelength: 850nm

• Minimum Bend Radius: 30mm

• Transmitter Type: VSCEL

• Receiver Type: PIN

• Power Consumption: OSFP ≤10W, QSFP56 ≤5.5W

• Jacket Material: OFNP

• CDR (Clock and Data Recovery): TX & RX Built-in CDR

• Modulation Format: 8x 50G-PAM4 to Dual 4x 50G-PAM4

• DDM/DOM: Supported

• Temperature Range: 0 to 70°C (32 to 158°F)

• Protocols: CMIS 4.0, SFF-8636，IEEE 802.3 bs-2*200GAUI-4, IEEE 802.3 bs-200GAUI-4, OSFP MSA, SFF-8679, SFF-8661

• Warranty: 5 Years

Product Highlights

• Max. Power Consumption 10W (OSFP End)/5.5W (QSFP56 End)

• Tested in Targeted Switches for Superior Performance, Quality, and Reliability

• Increased Reliability-VCSEL, No MPO Connectors, Low BER

• Thin and Light Weight Fiber with High Air Flow for Flexible Routing

• Ideal for Storage and Management Network

• OFNP-rated, Resistant to High Temperature and Corrosion

• Supports 400G to 2x 200G Interoperability

• High-speed Electrical Compliant to IEEE 802.3bs

• 8x50G PAM4 Retimed 2*200GAUI-4 Electrical Interface

• 4x50G PAM4 Retimed 200GAUI-4 Electrical Interface

• Hot Pluggable OSFP MSA and SFF-8661 Compliant

• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
• Cable Type: Breakout AOC
• Max. Data Rate: 400Gbps
• Form Factor: OSFP (Flat Top) to 2x QSFP56
• Cable Length: 3-30m (10ft-98ft)
• Modulation: 8x 50G-PAM4 to Dual 4x 50G-PAM4
• Minimum Bend Radius: 30MM
• Power Consumption: OSFP ≤10W, QSFP56 ≤5.5W
• Jacket Material: OFNP
