Overview

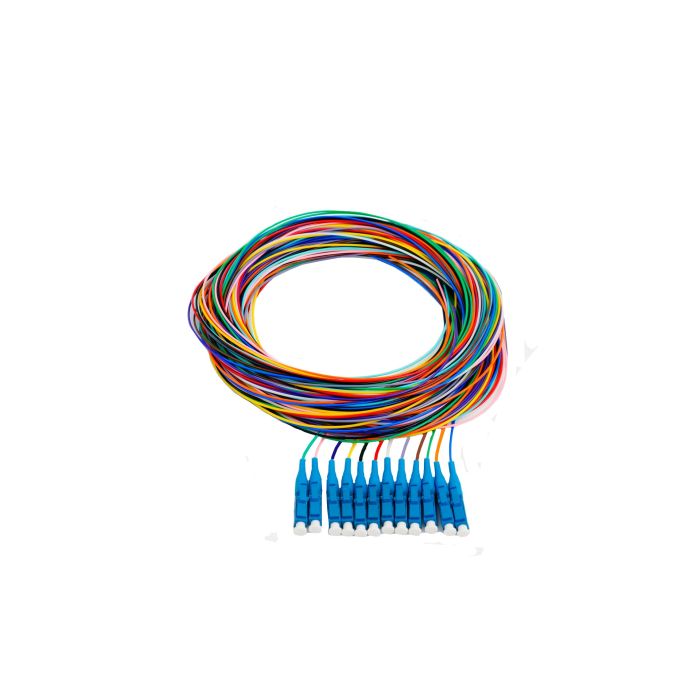

This 12-fiber singlemode pigtail pack is designed for high-density fusion splicing applications in data centers, telecommunications rooms, and enterprise networks. Each pigtail features a 900um tight-buffered design, facilitating ease of handling and termination during cable management installations.
The pigtails are manufactured with premium Corning® optical fiber and terminated with LC/UPC connectors. They are factory-tested to ensure low insertion loss and consistent performance. The fibers are color-coded to industry standards, allowing for quick and accurate identification during the splicing process.
Key Features
-
12-Fiber Configuration
Designed for efficient, high-count fiber management and rapid deployment in splice trays. -
Corning® Tight Buffered Fiber
Constructed with high-quality 900um fiber for durability and stripping performance. -
LC/UPC Termination
Features industry-standard LC connectors for high-density port compatibility. -
Low Insertion Loss
Provides a typical insertion loss of 0.4dB max, ensuring signal integrity. -
Color-Coded Buffering
Follows standard industry color coding for rapid, error-free identification. -
3 Meter Length
Standardized length provides sufficient slack for routing within most patch panels and enclosures.
Applications
- Fiber optic distribution frames
- Fusion splicing in OSP or indoor enclosures
- Data center cross-connects
- Telecommunications switching centers
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode |
| Connector Type | LC/UPC |
| Buffer Size | 900um |
| Length | 3 Meters |
| Typical Insertion Loss | 0.4dB Max |
Frequently Asked Questions
What color coding is used for this 12-pack?
The pigtails follow industry-standard color coding, which includes Blue, Orange, Green, Brown, Slate, and White for the first six fibers.
Are these pigtails suitable for fusion splicing?
Yes, they are specifically designed for high fiber count fusion splicing applications.
Can I order custom lengths?
Yes, please contact us for inquiries regarding custom fan-out lengths and specialized configurations.
What is the buffer material?
These utilize Corning® 900um tight-buffered optical fiber.
Are these compatible with standard LC adapters?
Yes, they feature LC/UPC connectors that are compatible with all standard LC-style adapters.
