Overview

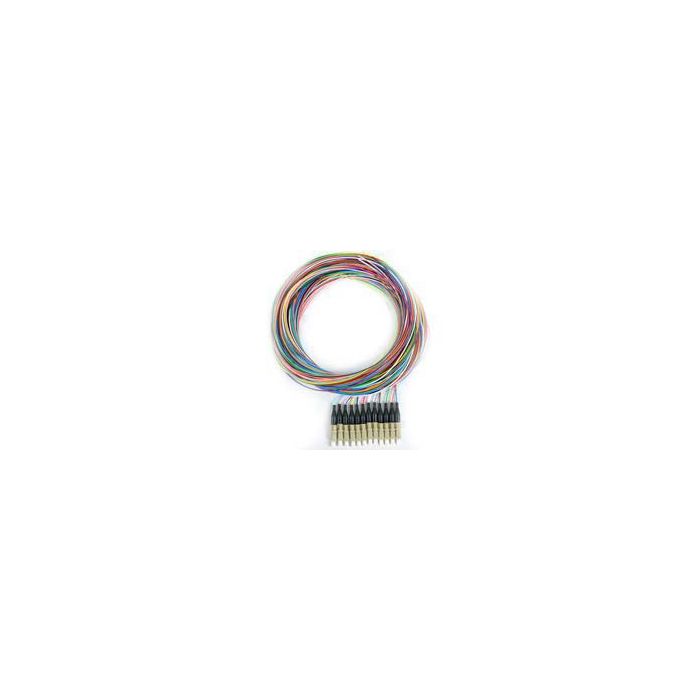

This 12-fiber pigtail pack is engineered for high-density fusion splicing applications in network environments. Each pigtail features a 900um tight-buffered fiber construction, providing robust protection while maintaining the flexibility required for routing within splice trays and enclosures.
Designed to support efficient fiber management, these pigtails utilize standard industry color-coding to ensure quick and accurate termination. The assembly is built using high-quality multimode 50um OM2 optical fiber, terminating in LC/PC connectors with black boots, making it an ideal choice for data centers, telecommunications rooms, and enterprise network infrastructure.
Key Features
-
High-Density Design
Features a 12-fiber configuration designed specifically for high fiber count splicing environments. -
Industry Color Coding
Fibers are color-coded to industry standards (Blue, Orange, Green, Brown, Slate, White) to simplify installation and cable management. -
Tight-Buffered Construction
Uses 900um tight-buffered optical fiber for enhanced protection and durability during handling. -
Low Insertion Loss
Optimized for performance with a typical maximum insertion loss of 0.4dB. -
Standard Length
Supplied in 3-meter lengths to accommodate most standard patch panel and rack requirements. -
LC/PC Connector Interface
Standard LC/PC connectors ensure compatibility with widely used network hardware.
Applications
- High-density fiber optic fusion splicing
- Data center cable management
- Telecommunications distribution frames
- Premise network installations
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 50um OM2 |
| Connector Type | LC/PC |
| Cable Length | 3 Meters |
| Buffer Diameter | 900um |
| Insertion Loss | 0.4dB (Max) |
| Boot Color | Black |
Frequently Asked Questions
Are these pigtails compatible with standard fusion splicers?
Yes, these 900um pigtails are designed for standard fusion splicing into existing cable plants.
What are the fiber colors used in this 12-pack?
The pack follows standard industry color-coding for identification: Blue, Orange, Green, Brown, Slate, and White.
Can I order custom lengths?
Yes, custom fan-out lengths and configurations are available upon request.
Are these pigtails available with different connectors?
Yes, these pigtail packs can be provided with various connector types including SC or ST upon request.
Does the insertion loss meet industry standards?
Yes, all pigtails are manufactured with a maximum insertion loss of 0.4dB.
