Overview

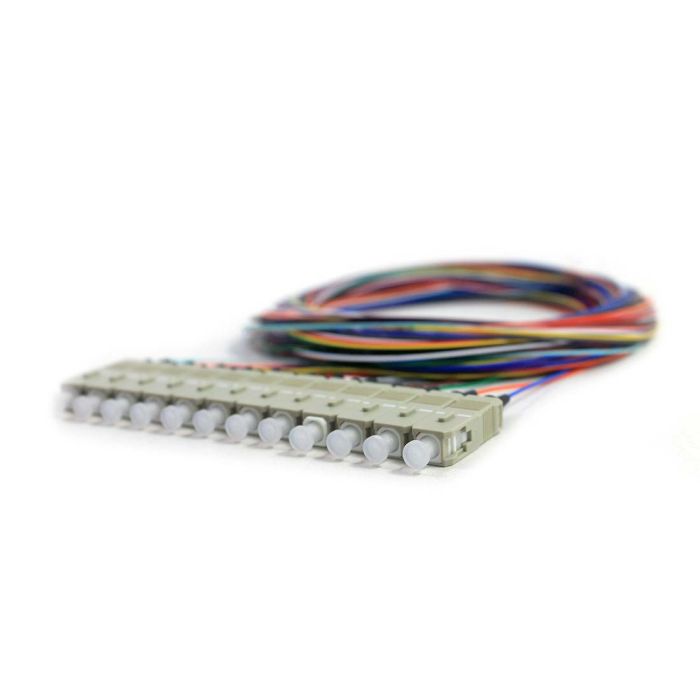

This 12-fiber pigtail assembly is designed for high-density fiber splicing applications. Each pigtail features a 900um tight-buffered optical fiber construction using high-quality Corning fiber, ensuring compatibility with standard fusion splicing equipment and techniques.
The assembly is factory-terminated with SC/PC connectors, providing a reliable interface for patching into rack-mount enclosures or fiber management systems. The pigtails are color-coded to industry standards, facilitating efficient installation and organization in enterprise networks and data centers.
Key Features
-
12-Fiber Count
Provides twelve individual pigtails for efficient high-density splicing in patch panels. -
Corning Tight-Buffered Fiber
Utilizes high-quality glass for low signal attenuation and consistent optical performance. -
900um Buffer
Standard tight-buffer construction simplifies stripping and splicing during installation. -
SC/PC Connectors
Common connector type for secure, stable physical contact connections. -
Industry Standard Color Coding
Follows standard TIA color sequences to eliminate errors during fiber identification. -
3 Meter Length
Provides sufficient slack for routing within standard rack enclosures and splice trays.
Applications
- Data Center Infrastructure
- Telecommunications Networks
- Enterprise Local Area Networks
- Fiber Optic Splicing Enclosures
- Rack-Mount Fiber Distribution Units
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 50um OM2 |
| Connector Type | SC/PC |
| Boot Color | Black |
| Buffer Size | 900um |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
Frequently Asked Questions
What is the standard color sequence for these pigtails?
The 12-fiber pigtails follow industry-standard color coding: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, and Aqua.
Can these be used for fusion splicing?
Yes, these are specifically designed for high fiber count fusion splicing applications.
Are these pigtails OM2 or OM3?
This specific part number (SP12SCMM50BLK) is designed for 50um OM2 multimode fiber applications.
What is the maximum insertion loss for this assembly?
The typical insertion loss is 0.4dB maximum.
What connector type is used?
These pigtails are factory-terminated with SC connectors featuring PC (Physical Contact) polish.
