Overview

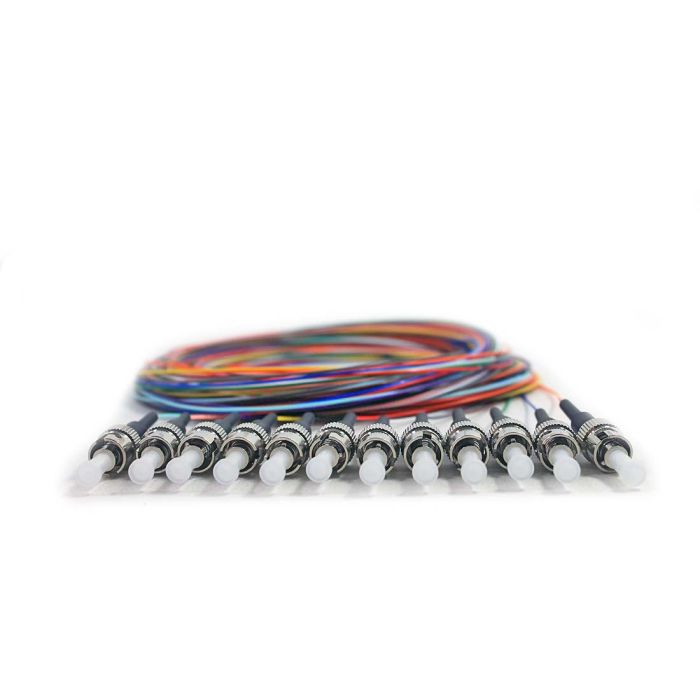

The 12-fiber 900um pigtail set is specifically engineered for high-density fusion splicing applications in data centers and telecommunications infrastructure. Each pigtail utilizes high-quality Corning tight-buffered optical fiber, ensuring consistent performance and long-term durability in critical network environments.
Designed for rapid termination, these pigtails feature color-coded 900um buffered fibers that adhere to industry standards, simplifying the organization and identification process during installation. With a factory-terminated ST connector and a 3-meter length, they are suitable for use within patch panels, wall-mount enclosures, and rack-mount fiber management systems.
Key Features
-
Corning Fiber Construction
Manufactured with high-grade Corning tight-buffered fiber for superior signal integrity and reliability. -
Industry-Standard Color Coding
Fiber strands are color-coded (Blue, Orange, Green, Brown, Slate, White) to ensure rapid and error-free splicing. -
High-Precision Termination
Features factory-polished ST/PC connectors to provide consistent low insertion loss. -
Low Insertion Loss
Rated at a maximum of 0.4dB to minimize optical power degradation across the connection. -
Optimized for Splicing
Designed for high fiber count management within enclosures, enabling efficient field termination. -
Durable Black Boots
Includes reinforced black strain-relief boots to protect fiber integrity at the connector interface.
Applications
- Telecommunications infrastructure
- Data center fiber management
- Enterprise network splicing
- Rack and wall-mount distribution panels
- FTTX distribution systems
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um (OM2) |
| Connector Type | ST/PC |
| Buffer Diameter | 900um |
| Length | 3 Meter |
| Maximum Insertion Loss | 0.4dB |
| Fiber Manufacturer | Corning |
Frequently Asked Questions
What is the standard color sequence for these 12-fiber pigtails?
The pigtails follow standard industry color coding (Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua).
Are these pigtails suitable for fusion splicing?
Yes, they are specifically designed for high fiber count fusion splicing applications.
What does 900um refer to?
This refers to the diameter of the tight-buffered coating on the individual fiber strands, which provides mechanical protection.
Can I order custom lengths?
Yes, please contact our support team for custom fan-out lengths and configurations.
Are these OM2 or OM3/OM4?
This specific part is OM2 (50um).
