Overview

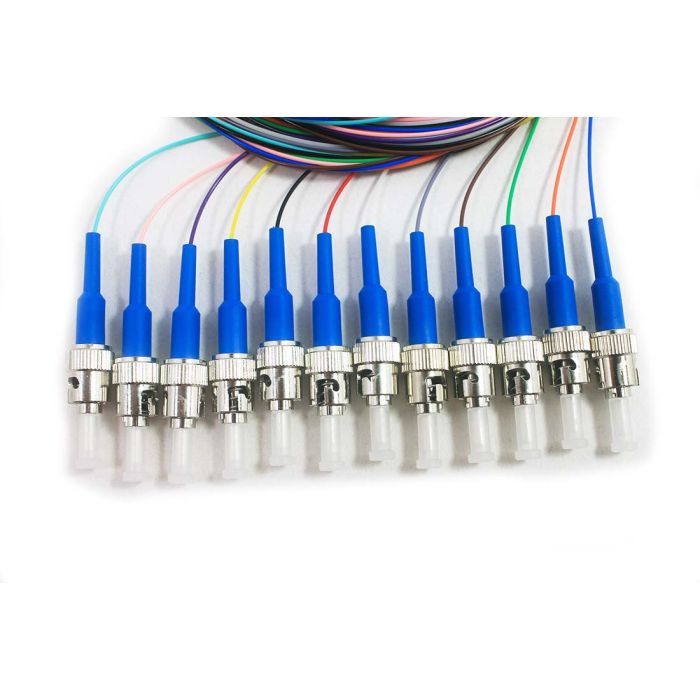

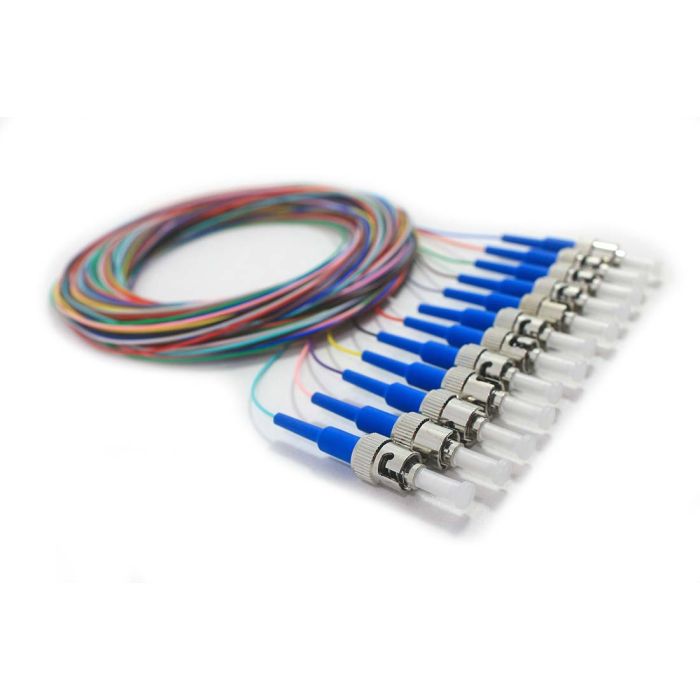

This 12-fiber pigtail assembly features 900um tight-buffered singlemode fiber, designed for high-density fiber splicing applications. Each assembly is factory-terminated with ST/UPC connectors, providing a consistent, low-loss interface for network terminations.
The fibers are color-coded according to industry standards, facilitating efficient installation and management within fiber optic enclosures and patch panels. These pigtails are constructed with high-quality Corning fiber, ensuring reliable optical performance in indoor patching and splice environments.
Key Features
-
12-Fiber Configuration
Features a 12-fiber count for high-density connectivity and organized splicing requirements. -
Corning Fiber Technology
Utilizes Corning 900um tight-buffered fiber for consistent transmission quality and durability. -
Standard Color Coding
Industry-standard color coding (Blue, Orange, Green, Brown, Slate, White) ensures easy identification and efficient installation. -
ST/UPC Connectivity
Factory-terminated ST/UPC connectors provide a stable, reliable physical connection. -
Low Insertion Loss
Designed for a typical insertion loss of 0.4dB maximum, ensuring efficient signal transmission. -
3-Meter Length
Optimized length for versatile use within standard rack-mount and wall-mount enclosures.
Applications
- High-density fiber optic splice trays
- Network distribution hubs
- Data center rack-mount enclosures
- Wall-mount fiber distribution boxes
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode |
| Fiber Coating | 900um Tight Buffered |
| Connector Type | ST/UPC |
| Insertion Loss | 0.4dB Max |
| Length | 3 Meters |
| Boot Color | Blue |
Frequently Asked Questions
Are these pigtails color-coded?
Yes, they follow industry-standard color coding for easy identification during the splicing process.
What is the maximum insertion loss?
The typical maximum insertion loss is 0.4dB.
Can I use these for outdoor splicing?
These are 900um tight-buffered pigtails primarily designed for indoor splicing within enclosures.
What fiber brand is used?
These pigtails are manufactured using Corning 900um tight-buffered optical fiber.
What is the length of these pigtails?
The standard length for this product is 3 meters.
