Overview

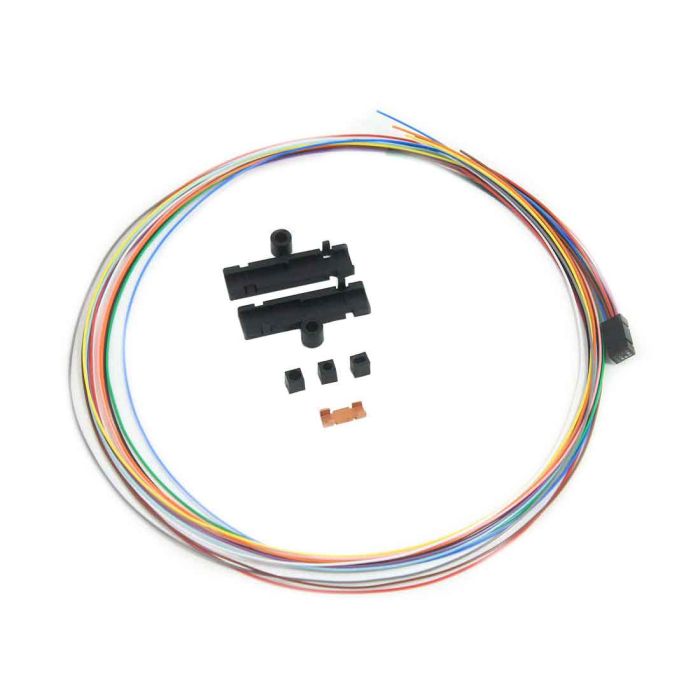

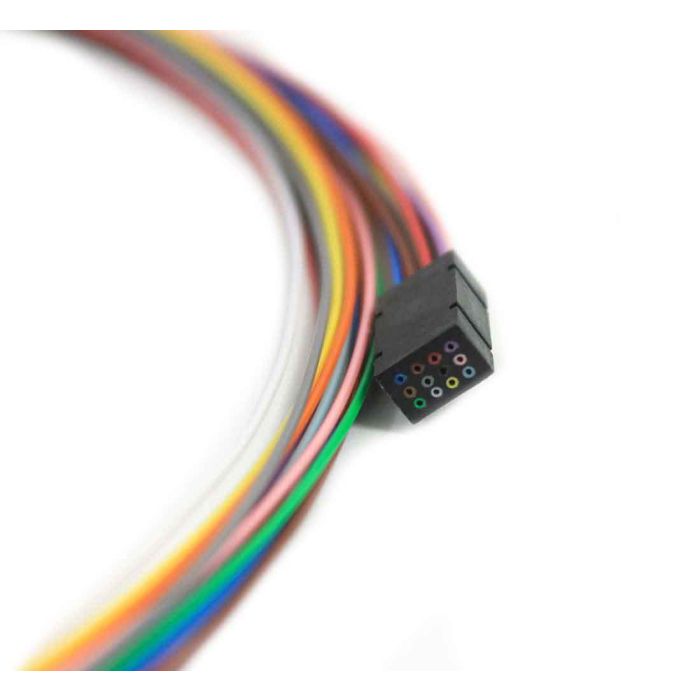

The 12 Fiber Buffer Tube/Ribbon Fan-Out Kit provides a robust and efficient method for transitioning 250µm fibers from loose buffer tubes or ribbon cables into manageable 900µm protected fibers. This kit is specifically designed to facilitate easier fiber handling and termination during installation in data centers and telecommunications networks.
Featuring a durable, snap-together housing, this kit allows for simple installation and easy reentry if adjustments are required. The kit comes pre-configured with 25-inch lengths of Hytrel tubing, color-coded to industry standards to ensure accurate fiber identification and organized routing within enclosures or distribution panels.
Key Features
-

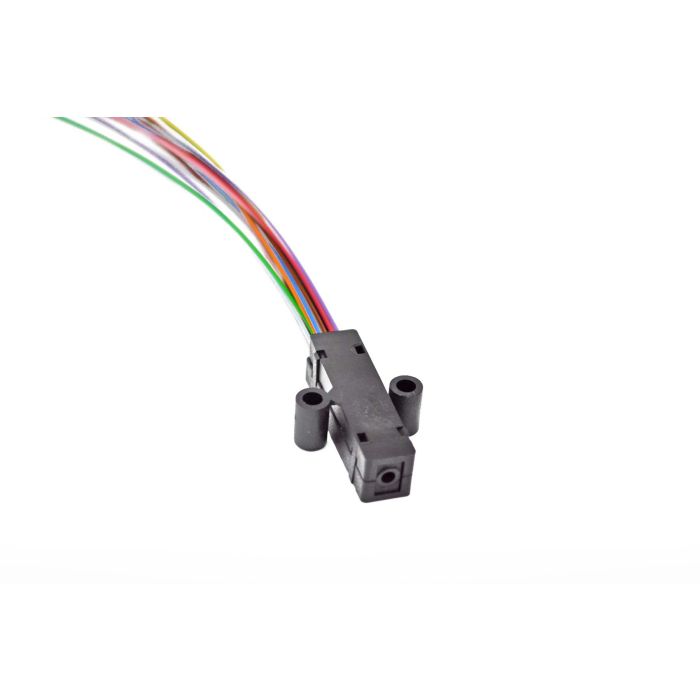

Snap-Together Housing
Allows for quick assembly and provides the flexibility for reentry when necessary. -
Industry Standard Color Coding
Ensures accurate identification of each fiber for rapid and error-free terminations. -
900µm Hytrel Tubing
Provides protection for delicate 250µm fibers while maintaining flexibility for routing. -
Universal Cable Compatibility
Includes adapters to accommodate various round cable configurations, including loose buffer tubes and ribbon cables. -
Simplified Breakout
Streamlines the process of transitioning small-diameter fibers into a standard patchable format. -
Pre-Configured Design
Supplied with pre-cut 25-inch tubing lengths to save valuable time in the field.
Applications
- Data center fiber management
- Telecommunications distribution points
- Fiber-to-the-X (FTTX) installations
- Transitioning ribbon or loose tube cables for connectorization
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Tubing Length | 25 inches |
| Tubing Material | Hytrel |
| Tubing Outer Diameter | 900µm |
| Accepts Fiber Size | 250µm |
| Design | Snap-together / Re-enterable |
Frequently Asked Questions
What type of cable can this kit be used with?
This kit is designed for round cable configurations, specifically standard buffer tubes and ribbon cables.
Is the kit reusable?
Yes, the snap-together design allows for the unit to be opened and reentered if adjustments are needed.
Does the kit include the tubing?
Yes, it includes 12 color-coded 25-inch lengths of 900µm Hytrel tubing.
What is the fiber count capacity?
This specific kit is configured for 12-fiber applications.
What size fiber does this accept?
It is designed to accept 250µm diameter fibers.
