Overview

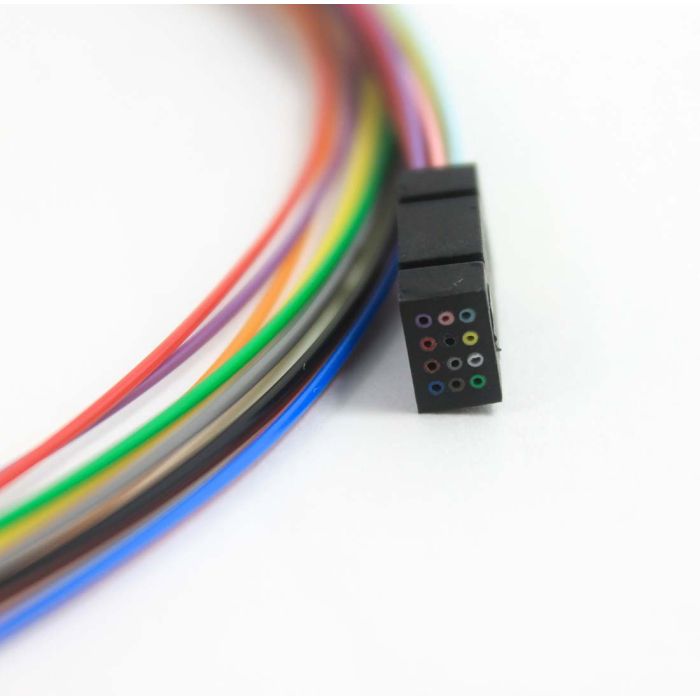

The 12 Fiber Buffer Tube/Ribbon Fan-Out Kit is a professional-grade solution designed to provide a simple, efficient breakout process from standard buffer tubes or ribbon cables. It is specifically engineered to transition 250μm fibers into protected 900μm furcation tubing, facilitating easier termination and connection.

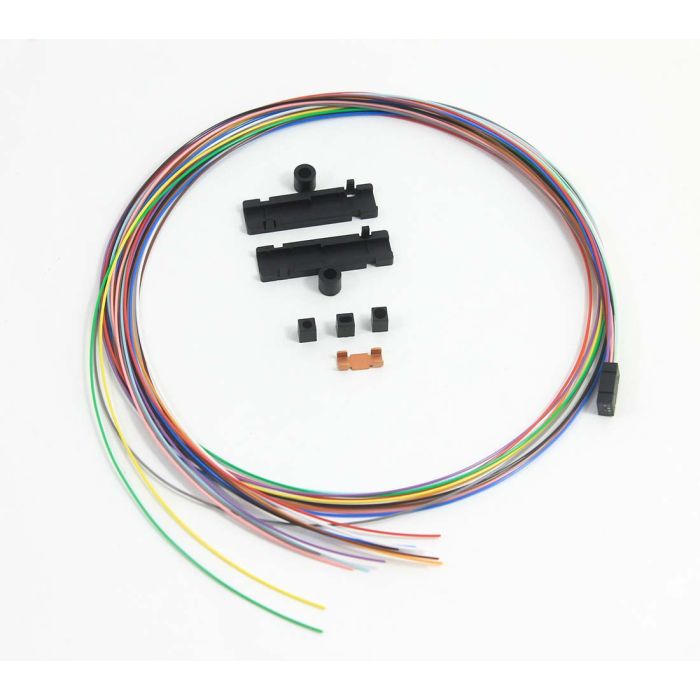

Constructed with a snap-together housing, this kit allows for easy reentry if maintenance or reconfiguration is required. The kit includes versatile adapters that accommodate various round cable configurations, making it a flexible choice for field technicians and data center operators working with different cabling infrastructures.
Key Features
-
Snap-Together Design
Allows for quick assembly and provides the ability to reopen the unit for future reentry if necessary. -
Universal Compatibility
Includes adapters to accommodate both buffer tube and ribbon cable configurations. -
Industry Standard Color Coding
The 900μm Hytrel tubing follows standard color codes to ensure accurate fiber identification and mapping during termination. -
Simplified Breakout
Reduces installation time by providing a structured path for fibers transitioning from protected cables. -
Accepts 250μm Fibers
Designed specifically to accept and protect standard 250μm fibers. -
Pre-Configured Length
Supplied with 36-inch tubing to provide sufficient slack for termination in patch panels or enclosures.
Applications
- Data center fiber management
- Fiber optic patch panel termination
- Breakout of loose tube or ribbon cables
- Telecommunications infrastructure upgrades
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Tubing Length | 36 inches |
| Tubing Material | Hytrel |
| Tubing Outer Diameter | 900μm |
| Fiber Compatibility | 250μm |
| Design | Snap-together (re-enterable) |
Frequently Asked Questions
Is this kit compatible with both buffer tubes and ribbon cables?
Yes, the kit includes specific adapters to accommodate both round buffer tube and ribbon cable configurations.
Can I open the unit after it has been installed?
Yes, the unit features a snap-together design that allows for easy reentry.
What size fiber does this kit accept?
The kit is designed to accept 250μm fibers.
What is the length of the furcation tubing provided?
This specific kit comes with 36-inch lengths of tubing.
Are the tubes color-coded?
Yes, the tubing follows industry-standard color coding for easy fiber identification.
