Overview

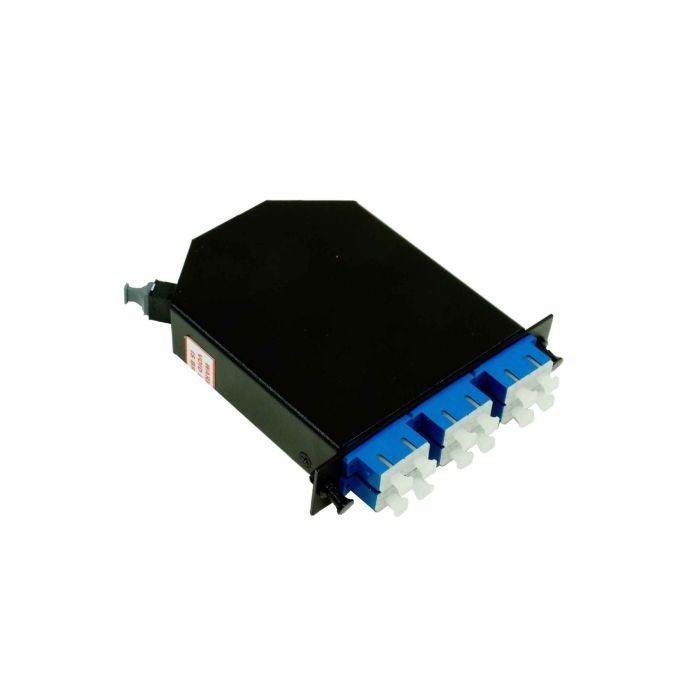

The 12-fiber MPO cassette is a high-density modular component designed to provide a seamless transition between MTP/MPO backbone trunk cables and standard individual fiber connectors. This cassette facilitates rapid deployment in data center environments, telecommunications rooms, and enterprise networks where quick, reliable fiber patching is required.
Engineered for OS2 singlemode applications, this unit features a rear-mounted MTP male interface and six front-facing SC/APC duplex ports. The modular design enables efficient space utilization in rack-mount enclosures, simplifying fiber management and reducing installation time compared to traditional field termination methods.
Key Features
-
High-Density Connectivity
Provides 12 fibers in a compact cassette form factor to maximize rack space efficiency. -
Factory Terminated
Ensures consistent optical performance and eliminates the need for field splicing or termination. -
Singlemode OS2 Compatibility
Optimized for low-loss, high-bandwidth singlemode transmission requirements. -
MTP Interface
Uses a high-performance MTP male connector on the rear for fast, plug-and-play trunk connectivity. -
SC/APC Duplex Front Ports
Standard SC/APC interface provides low back-reflection for sensitive high-speed networking equipment. -
Modular Design
Supports simple installation and future expansion within standard rack-mount chassis.
Applications
- Data Centers
- Telecommunications distribution frames
- Enterprise backbone cabling
- High-density fiber cross-connects
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Singlemode OS2 |
| Rear Connector | MTP Male |
| Front Connector | 6 x SC/APC Duplex |
| Wiring Type | Type A |
Frequently Asked Questions
What is the purpose of an MPO cassette?
An MPO cassette acts as an interface between MPO/MTP backbone cabling and standard duplex patch cords, allowing for quick installation in high-density environments.
Does this cassette support multimode fiber?
No, this model is specifically designed for OS2 singlemode fiber applications.
What does 'Type A' wiring mean?
Type A wiring refers to the polarity configuration of the internal fibers, ensuring consistent signal path mapping between the MTP input and the front-facing ports.
Are SC/APC connectors required for this cassette?
Yes, the front ports are pre-configured for SC/APC duplex connectors.
Is this unit compatible with existing rack mount enclosures?
This cassette is designed to fit industry-standard modular rack-mount enclosure systems.
