Overview

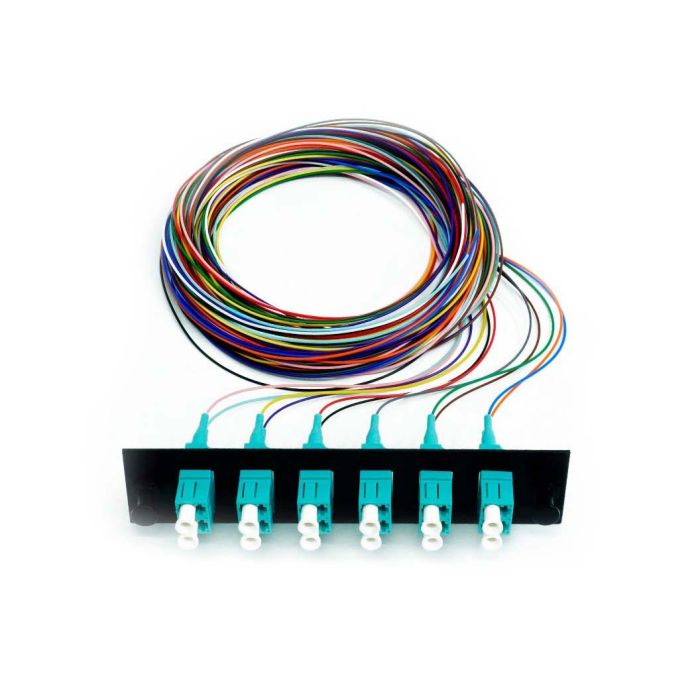

The 12-fiber Multimode 50um OM3 Snap Pack provides a pre-terminated connectivity solution for fiber distribution frames. Designed to accelerate installation, this unit integrates an LGX-compatible adapter plate pre-loaded with pigtails to minimize on-site splicing time and ensure consistent optical performance.
These assemblies feature Corning 900um tight-buffered fiber for high signal integrity. The pigtails are organized and protected by flexible spiral wrap tubing, allowing for easy cable management within rack or wall-mount enclosures. This solution is well-suited for high-density data center and enterprise network environments requiring reliable, modular fiber connectivity.
Key Features
-
12-Fiber Configuration
Provides high-density connectivity for demanding network environments. -
OM3 Multimode Fiber
Optimized for high-speed data transmission and 10GbE network applications. -
LGX Adapter Plate
Ensures compatibility with standard industry fiber distribution frames and enclosures. -
Corning Fiber
Utilizes high-quality glass for consistent signal transmission and durability. -
Flexible Spiral Wrap
Protects and organizes pigtails while allowing for simple cable routing. -
LC/PC Duplex Connectors
Standard interface for efficient, high-density patch connectivity. -
Pre-Terminated Design
Eliminates the need for field termination, reducing installation time and labor costs. -
Low Insertion Loss
Typical 0.4dB maximum insertion loss ensures efficient signal transmission.
Applications
- Fiber distribution frames
- Data center cross-connects
- Enterprise networking
- Server room cable management
- Local Area Network (LAN) infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1LC6DLM50GSPNBLK |
| Fiber Count | 12 |
| Fiber Type | Multimode 50um OM3 |
| Connector Type | LC/PC Duplex |
| Adapter Plate Style | LGX, Black |
| Fiber Construction | 900um Tight Buffered (Corning) |
| Insertion Loss | 0.4dB Max |
| Cable Length | 3 Meters |
Frequently Asked Questions
Are these Snap Packs compatible with all LGX-style enclosures?
Yes, they are designed to fit standard LGX-compatible distribution frames and wall-mount/rack-mount enclosures.
What color coding is used for the fibers?
The fibers are standard color-coded in 6-fiber sets: Blue, Orange, Green, Brown, Slate, and White.
Is the protective spiral wrap removable?
Yes, the flexible spiral wrap is designed to be easily removable for simplified fiber management.
Can I order a custom length or configuration?
Yes, contact customer support for custom Snap Pack requests, including different lengths, fiber types, or connector configurations.
What type of fiber is used inside these units?
These units are manufactured using Corning 900um tight-buffered multimode fiber.
