Overview

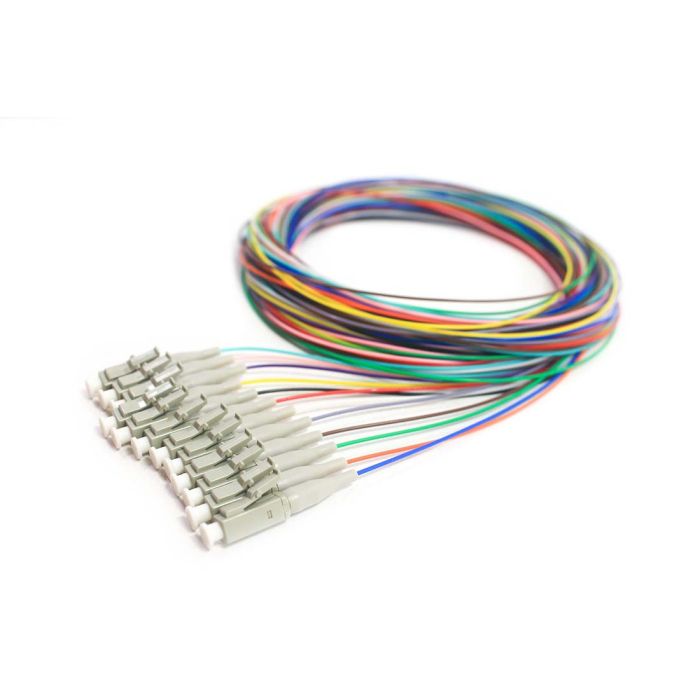

This 12-fiber pigtail assembly is designed for high fiber count splicing applications in data centers, telecommunications rooms, and enterprise networks. It utilizes 62.5um OM1 multimode optical fiber for reliable data transmission over shorter distances.
Constructed with high-quality Corning® tight-buffered fiber, these pigtails feature color-coded buffers to simplify installation and cable management. Each assembly is factory-terminated with LC/PC connectors, ensuring consistent performance and ease of integration into standard patch panels and splice trays.
Key Features
-
12-Fiber Configuration
Designed for efficient, high-density splicing tasks in multi-fiber environments. -
62.5um OM1 Fiber
Optimized for legacy multimode network infrastructure and local area network deployments. -
Corning® Tight-Buffered Fiber
Provides enhanced protection and handling stability during termination. -
Factory Terminated LC/PC Connectors
Ensures precision alignment and reduced installation time in the field. -
Industry Standard Color Coding
Simplifies fiber identification for rapid, accurate splicing. -
Low Insertion Loss
Maintains signal integrity with a typical maximum insertion loss of 0.4dB.
Applications
- High fiber count fusion splicing
- Patch panel termination
- Data center fiber management
- Enterprise network infrastructure
- FTTX installations
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5um (OM1) |
| Connector Type | LC/PC |
| Fiber Construction | 900um Tight Buffered |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
| Boot Color | Beige |
Frequently Asked Questions
What is the standard fiber color coding used for these 12-fiber pigtails?
The pigtails follow industry-standard color coding: Blue, Orange, Green, Brown, Slate, and White (used for 6-fiber sets).
Can these be used for fusion splicing?
Yes, these 900um pigtails are specifically designed for high fiber count fusion splicing applications.
What is the typical insertion loss for these connectors?
The connectors have a typical maximum insertion loss of 0.4dB.
Is the fiber used in these pigtails Corning branded?
Yes, these pigtails are manufactured using Corning® tight-buffered optical fiber.
Are these pigtails available in custom lengths?
Please contact our support team for information regarding custom fan-out lengths, specifications, or bulk pricing.
