Overview

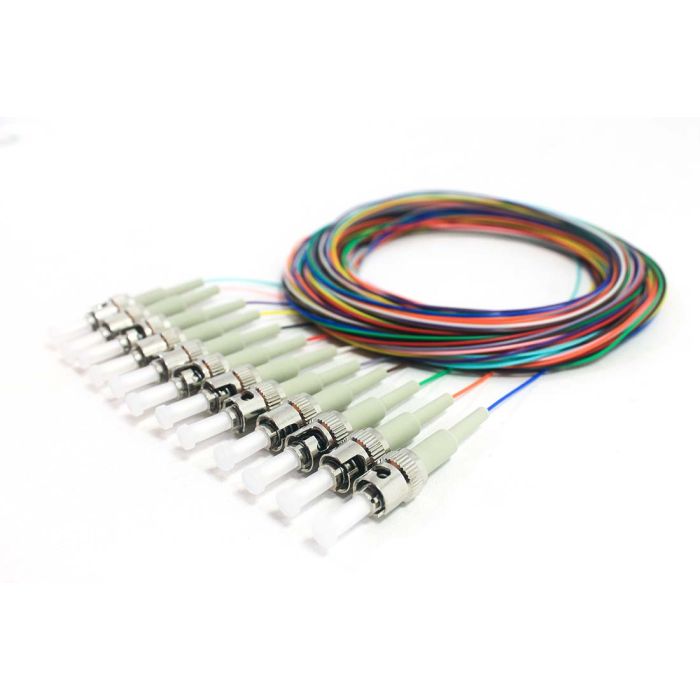

This 12-fiber pigtail pack is designed for high-density fiber optic splicing applications, providing a reliable transition from bulk cables to termination equipment. Each pigtail features 900um tight-buffered fiber for ease of handling and protection during the fusion splicing process.
Constructed with high-quality multimode 62.5um OM1 fiber, these pigtails are factory-terminated with ST/PC connectors. The assembly is color-coded to industry standards, facilitating efficient identification and installation in enclosures, patch panels, and splice trays. The 3-meter length provides sufficient slack for management within standard telecommunications cabinets and racks.
Key Features
-
12-Fiber Configuration
Optimized for high fiber count splicing environments to increase installation efficiency. -
62.5um OM1 Multimode Fiber
Utilizes Corning fiber for consistent optical characteristics in legacy multimode networks. -
900um Tight Buffered Construction
Provides a robust protective layer that simplifies stripping and handling during splicing. -
ST/PC Termination
Features industry-standard ST connectors with PC polish for effective physical contact and signal transmission. -
Factory-Polished Endfaces
Ensures low insertion loss and reliable performance, reducing the need for field polishing. -
Industry Color Coding
Follows standard color schemes to ensure accurate fiber identification and simplify complex cable management.
Applications
- Fusion splicing in fiber optic enclosures
- Patch panel termination
- Building and campus backbone cabling
- Central office and data center fiber management
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode (OM1) 62.5um |
| Connector Type | ST/PC |
| Buffer Size | 900um |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
| Boot Color | Beige |
Frequently Asked Questions
What is the typical insertion loss for these pigtails?
The maximum insertion loss is 0.4dB.
Are these pigtails color-coded?
Yes, they are color-coded to industry standards (Blue, Orange, Green, Brown, Slate, and White for 6-packs).
Can I order these in custom lengths?
Yes, please contact our support team for custom fan-out lengths and specific configurations.
What fiber glass is used in these assemblies?
These pigtails are manufactured using high-quality Corning fiber.
Are these suitable for fusion splicing?
Yes, the 900um tight-buffered design is specifically engineered for high-count splicing applications.
