Overview

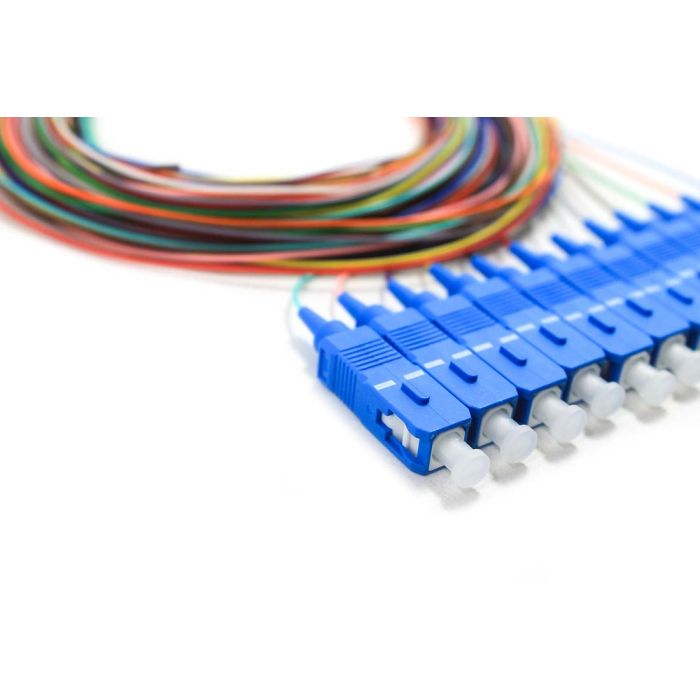

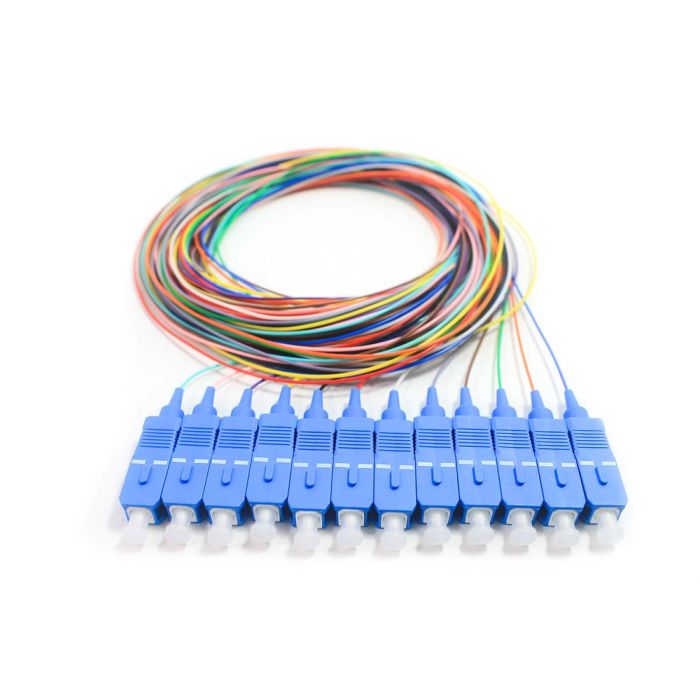

These 12-fiber singlemode pigtails are designed for high fiber count splicing applications. Each pigtail features 900um tight-buffered optical fiber, manufactured with high-quality Corning optical glass to ensure consistent transmission performance and durability in critical network installations.
The assembly is terminated with SC/UPC connectors, providing low insertion loss and low back reflection performance. These pigtails are color-coded to industry standards to simplify identification during the fiber splicing process within fiber management enclosures or patch panels.
Key Features
-
Standardized Color Coding
Features industry-standard color identification, which reduces errors during high-density fiber splicing. -
Low Insertion Loss
Designed for a typical maximum insertion loss of 0.4dB, ensuring efficient signal transmission. -
High-Quality Fiber
Constructed using Corning 900um tight-buffered optical fiber for optimal compatibility and performance. -
Precision Termination
Factory-terminated with SC/UPC connectors to maintain consistent optical integrity. -
Application Ready
The 3-meter length is suitable for standard rack-mount and wall-mount enclosure configurations. -
High Fiber Count Design
Specifically engineered for applications requiring 12-fiber grouping and efficient, organized termination.
Applications
- High-density fiber optic enclosures
- Fusion splicing applications
- Data center fiber management
- Telecommunications distribution frames
- FTTx network installations
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 Fibers |
| Fiber Type | Singlemode |
| Connector Type | SC/UPC |
| Buffer Size | 900um Tight Buffered |
| Cable Length | 3 Meters |
| Maximum Insertion Loss | 0.4dB |
Frequently Asked Questions
What is the typical insertion loss for these pigtails?
The typical maximum insertion loss for these pigtails is 0.4dB.
Are these pigtails color-coded?
Yes, they are color-coded to industry standards to facilitate easy identification during installation.
What type of fiber is used?
These pigtails are manufactured using Corning tight-buffered optical fiber.
What is the connector type?
These pigtails are terminated with SC/UPC connectors.
What is the total length of the pigtail?
The length is 3 meters.
