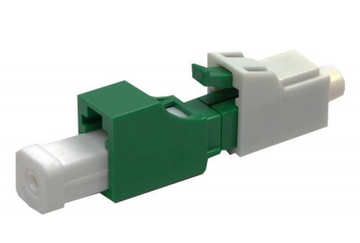

LC/APC 1650nm FBG Reflector
The FBG reflector is a standard SC/LC type connector structure, which package a special FBG in the ceramic ferrule.

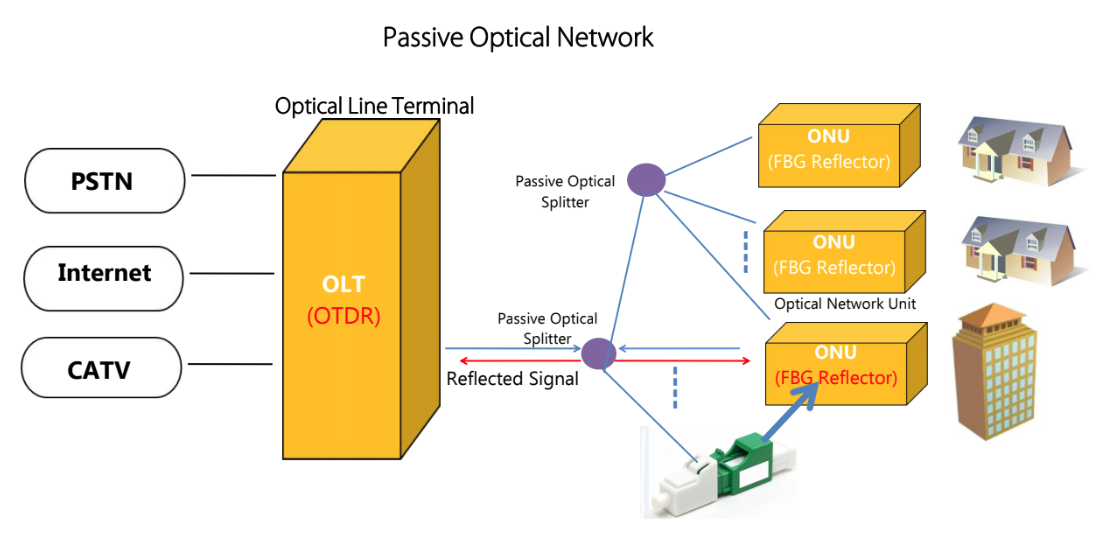

The fiber bragg grating reflector is a low-cost specific band reflector mounted on
the optical network unit (ONU) side. It can reflect light pulses (1650 +/- 5nm) from the OTDR on the fiber line terminal (OLT) side nearly 100%, while the working bands of the passive optical network (PON) are transmitted normally.
The OTDR can determine whether the fiber line is normal by detecting the signal reflected by the fiber grating reflector. When the reflected signal is lower than the normal value, the line loss is too large; when the reflection value is 0, the optical fiber line is broken.
Therefore, we can maintain the fiber line in time by the real-time monitoring of the fiber line.
- High stability and reliability
- Remove real-time detection
- Low insertion loss
- Easy connection for adapter structure
- Compliant with Telcordia GR-326-CORE, Telcordia GR-1221-CORE
- Compliant with RoHS
- Detection and maintenance of Passive Optical Network lines (applied to FTTx).
The FBG reflector adopts a standard LC connector structure, and it is external dimensions as below:
