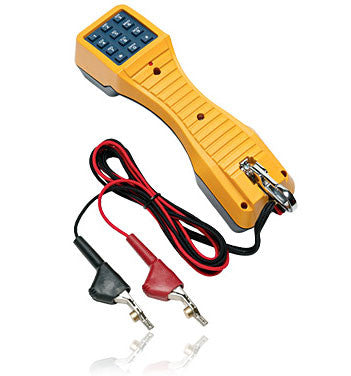

Fluke Networks TS19 Butt Test Set with Alligator Clips
Move your mouse over image or click to enlarge

Fluke Networks TS19 Butt Test Set with Alligator Clips

Fluke Networks Part No.: 19800003

  • $ 160.00 or

Fluke Networks TS†19 Butt Test Sets with Alligator Clips

TS19 test set with banana jacks to alligator clips. The Fluke Networks TS19 Test Set combines all the essential test set features at an affordable price.

This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines.

Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.

Download Product Spec Sheet:

Product Features:

  • High impedance DataSafeTM operation in monitor mode
  • Talk/Monitor capabilities
  • Tone (DTMF) and pulse operation
  • Last number redial
  • Polarity indication in talk mode


Loop Limit

2.4 k‰µmaximum at 48 VDC (nominal 15 mA minimum loopcurrent)

DC Resistance (Talk Mode)

150 ‰typical at 80 mA current

AC Impedance (Monitor Mode)

Low impedance (Ring position) 600 ‰at 1 KHz typical
High impedance (HI Z position) 100 k‰µminimum at 1 KHz

Rotary Dial Output

10 pps .5 pps

Pulsing Rate 60 % †ñ 2 %
Percent Break 800 ms typical

Interdigit Interval Leakage During Break

> 50 k‰

DTMF Output

†ñ1 % maximum

Tone Frequency Error Level per Tone Pair

dBm maximum, - dBm minimum

High versus Low Tone Difference

4 dB maximum



8.75 in (22.2 cm)


2.375 in (6.03 cm)


3.375 in (8.57 cm)


10.8 oz (.307 kg) maximum



Operating: -5 †­C to †­C
Storage: -40 †­C to †­C


1 meter, 4 times


To 3,000 meters (10,000 feet) maximum

Relative humidity

10 %to 80 % (non-condensing)

Regulatory Standards Used

47 CFR Part 15, Subpart B
ICES-003 Issue 3
AS/NZS 3548
EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3
LV Directive 73/23/EEC, EN 610010.1 (1993)

Certifications and Compliance

Conformit Europenne. Conforms to relevant European Union directives.
CAN/CSA-C22.2 No. 60950-1-03
CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
