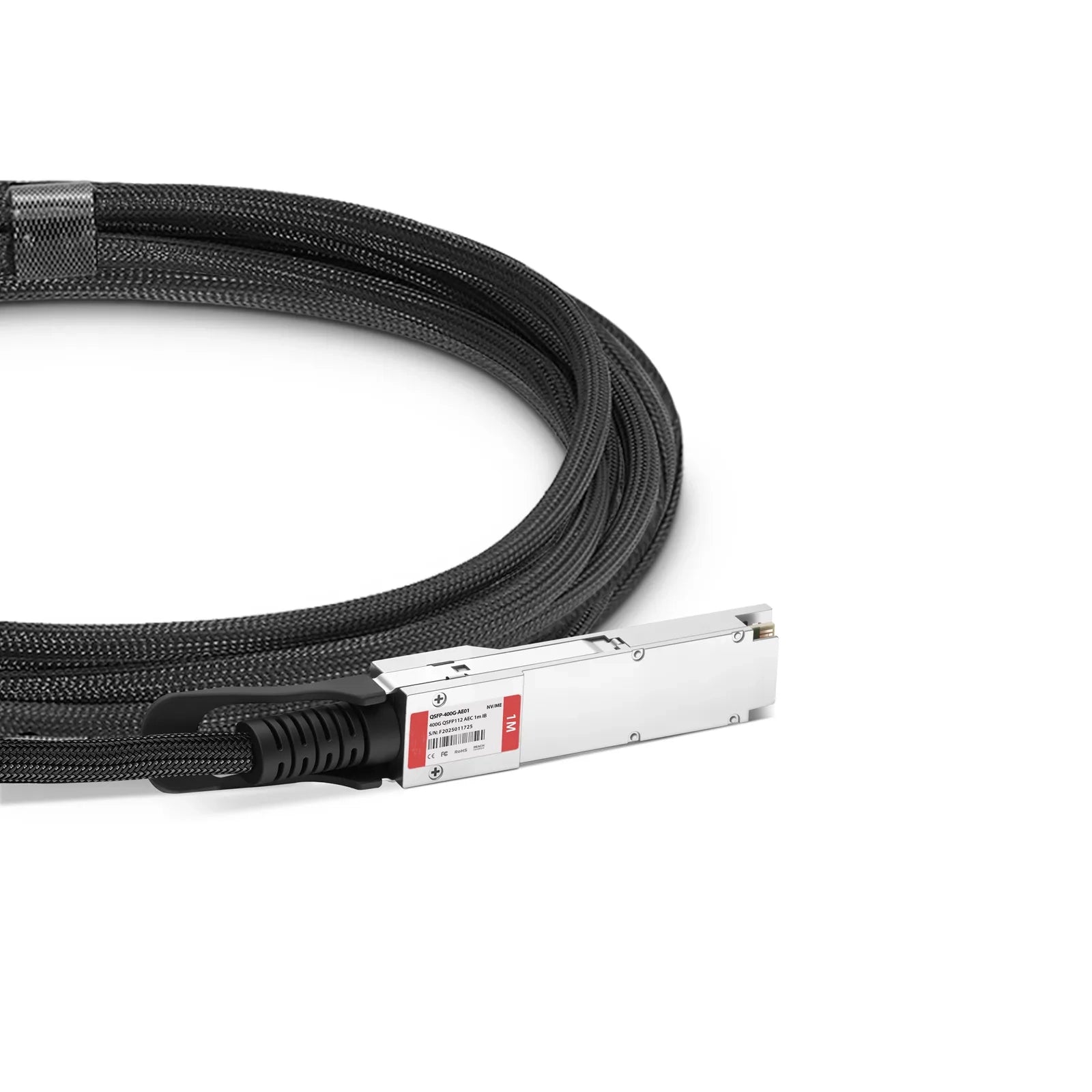

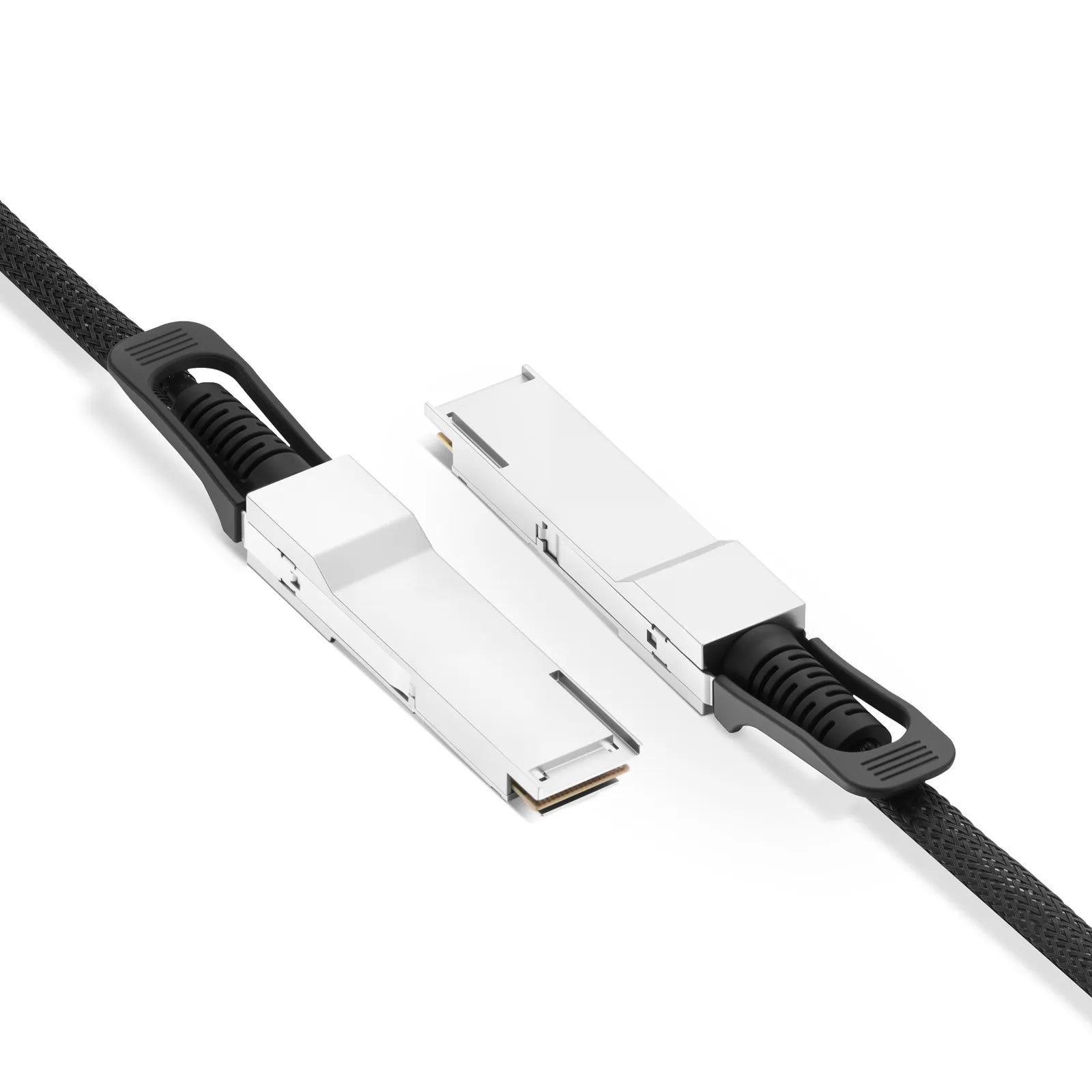

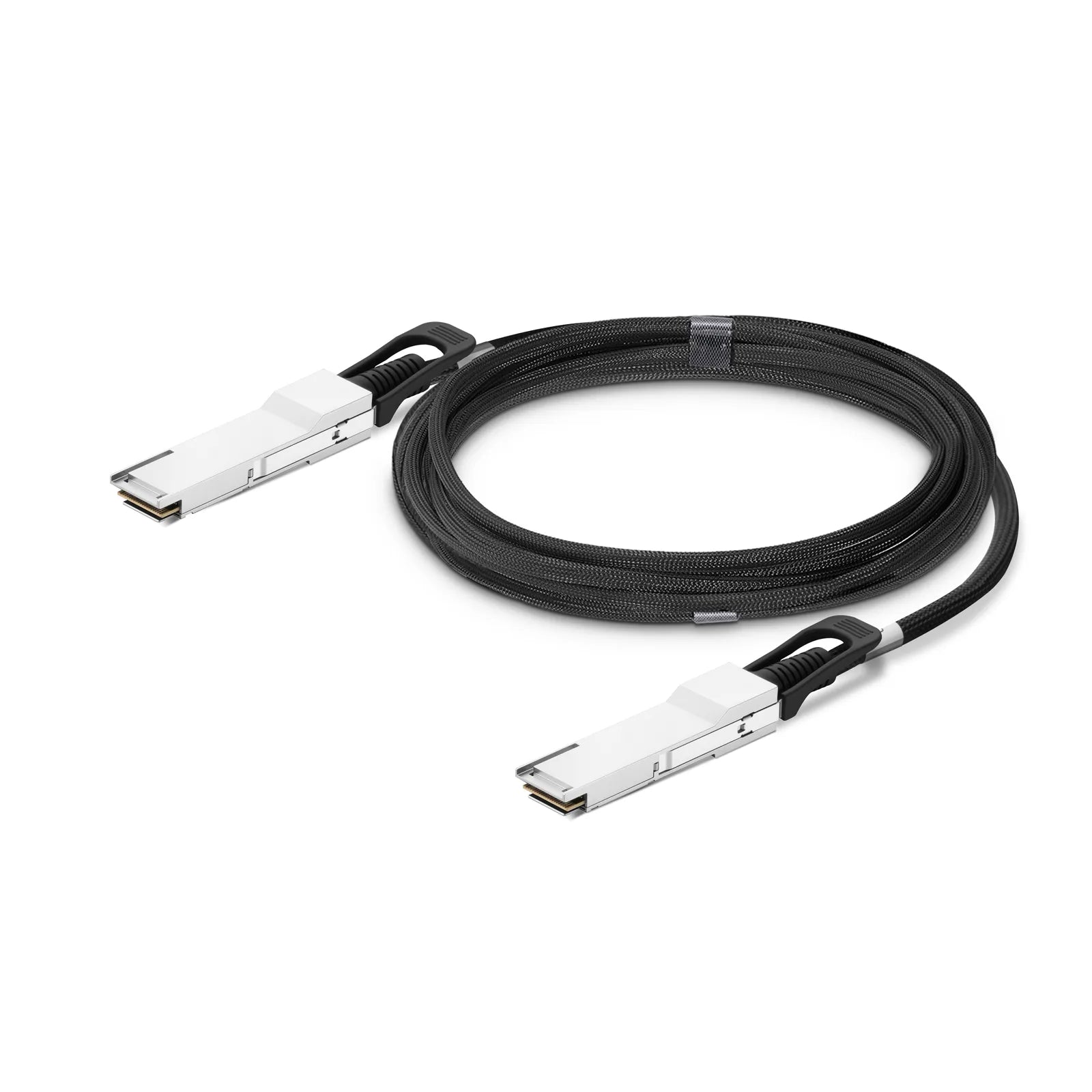

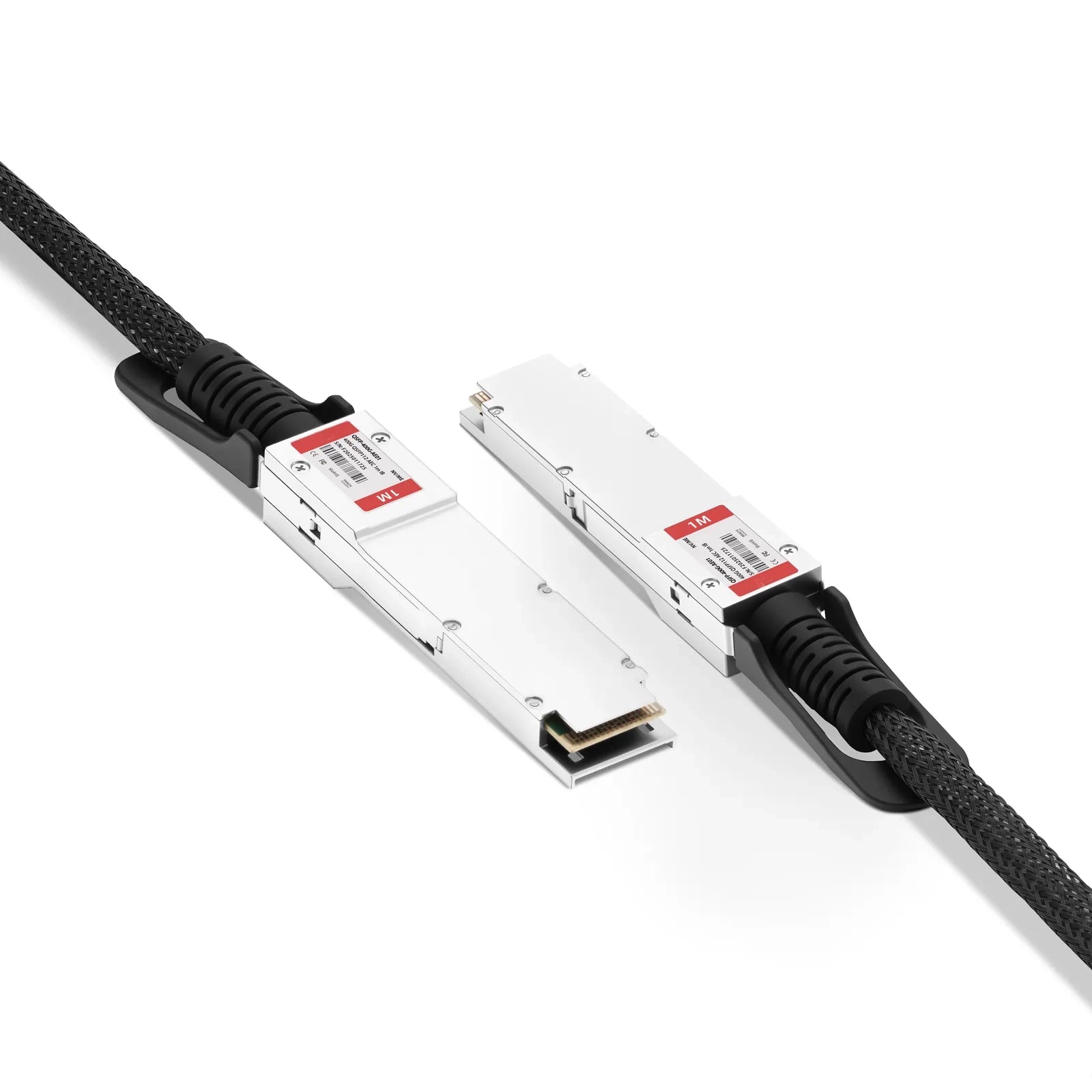

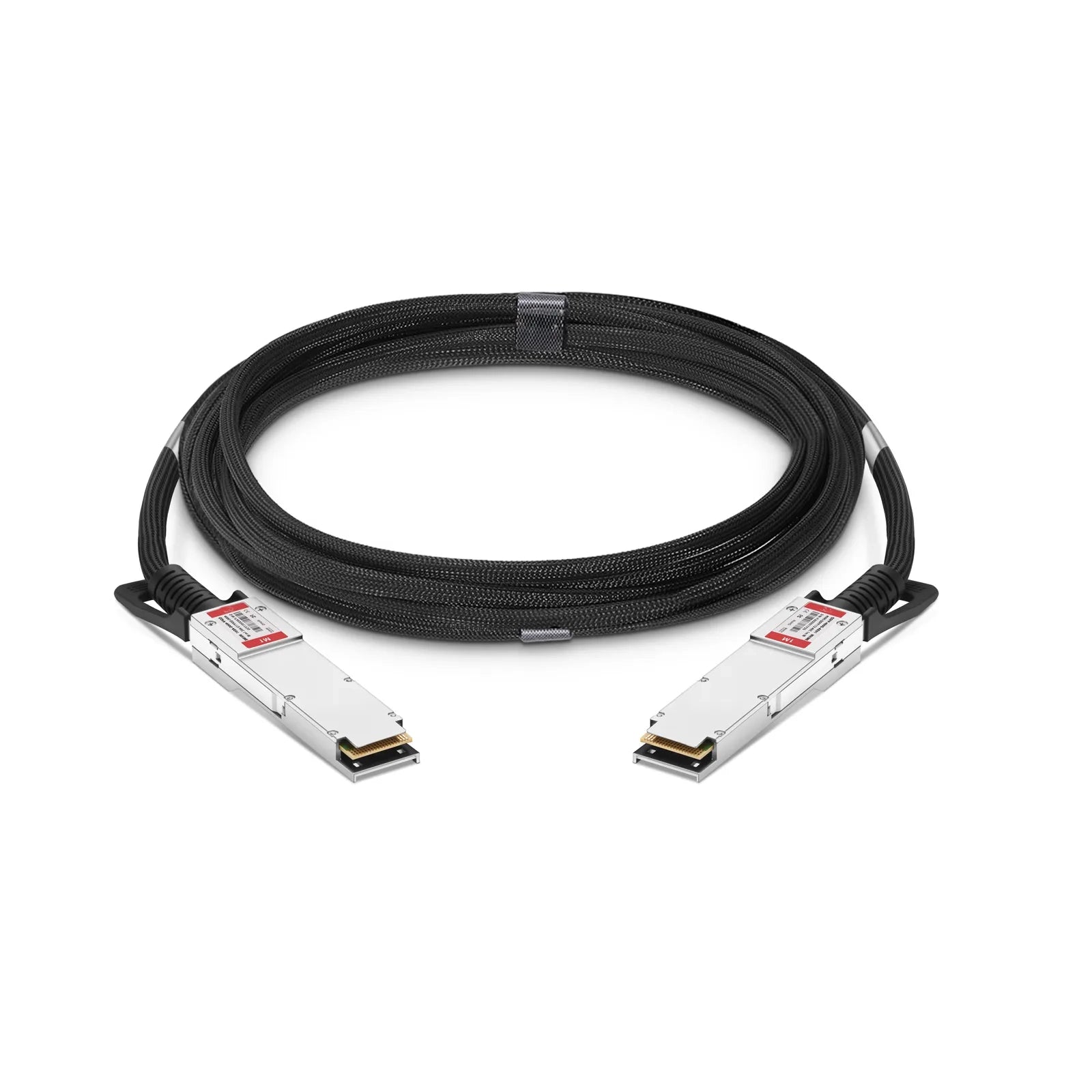

1m (3ft) NVIDIA/Mellanox Compatible 400G QSFP112 InfiniBand NDR Active Electrical Cable

The 400G QSFP112 Active Electrical Cable is copper cable with retimer chip at both ends for complete signal integrity and is designed for use in 400G Ethernet. AEC can solve the technical barriers of data loss in PAM4 signal transmission.

Compared with traditional passive copper cables, 400Gbps AEC cable can achieve long-distance transmission of 5m without significantly increasing signal attenuation.

The active electrical cable can be used in QSFP-DD(4x 100G) switches, ConnectX-7/QSFP112 adapters or BlueField-3/QSFP112 DPUs, and it is compliant with the QSFP112 MSA (Multi-Source Agreement), IEEE 802.3ck 400GBase-CR4, and CMIS 5.0 standards.

With the advantages of easy installation, high-speed performance and cost-effectiveness, the cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.

Specifications

• Part Number: FS-QSFP-400G-AE01

• Form Factor: QSFP112 to QSFP112

• Max. Data Rate: 400Gbps

• Media: Copper

• Cable Type: Active DAC (AEC)

• Minimum Bend Radius: 26.5mm

• Wire AWG: 32AWG

• Cable Length: 1m (3ft)

• Jacket Material: PET

• Power Consumption: <8W Per End

• Modulation Format: 4x 100G-PAM4

• DDM/DOM: Supported

• Temperature Range: 0 to 70°C (32 to 158°F)

• Protocols: QSFP112 MSA, IEEE 802.3ck 400GBase-CR4, CMIS 5.0

• Warranty: 5 Years

Product Highlights

• Qualified for InfiniBand NDR End-to-End Systems

• Built-in Marvell Chip, Max. Power Consumption 8W Per End

• Tested in Targeted Switches for Superior Performance, Quality, and Reliability

• High-speed Connectivity Compliant to IEEE 802.3ck 400GBase-CR4 and CMIS 5.0

• 4x 100G PAM4 Retimed 400GAUI-4 Electrical Interface

• Simplifies Patching and Offers a Cost-effective Way for Short Links

• Hot Pluggable QSFP112 MSA Compliant

• For High-density Cabinets and Narrow Channel Deployment
• Form Factor: QSFP112 to QSFP112
• Media: Copper
• Minimum Bend Radius: 26.5mm
• Cable Length: 1m (3ft)
• Power Consumption: <8W Per End
• DDM/DOM: Supported
• Protocols: QSFP112 MSA, IEEE 802.3ck 400GBase-CR4, CMIS 5.0
• Modulation: 4x 100G-PAM4
