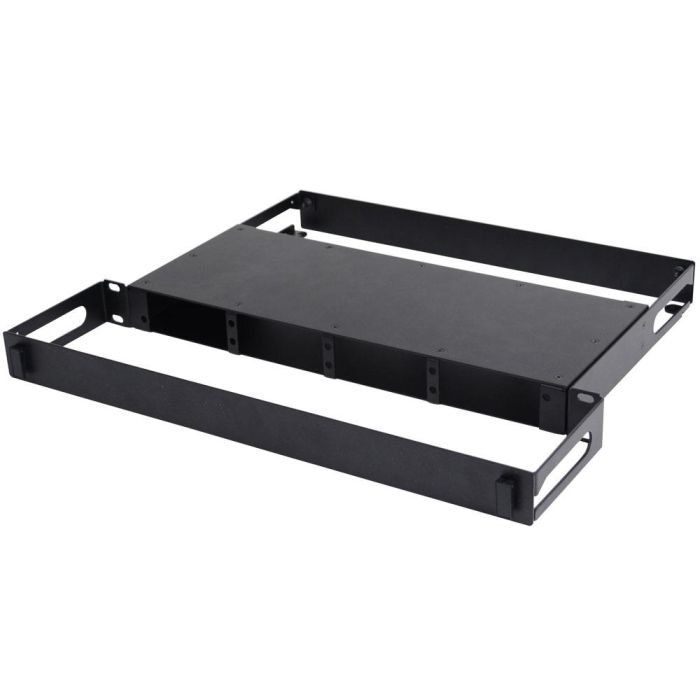

1RU 4X SHD Breakout Cassette Enclosure, Unloaded, Black
Overview
The 1RU 4X SHD Breakout Cassette Enclosure is a high-density, modular platform engineered for data center infrastructure. It serves as a centralized breakout point to transition multi-fiber MPO trunk cables into duplex LC patch cabling. Designed for use with up to (4) 4X SHD Breakout Cassettes, this unit supports a total capacity of 96 fibers within a single rack unit. The enclosure is constructed for mounting in standard 19-inch telco racks and features removable front and rear doors to provide unobstructed access for termination and cable management.
Key Features
- Accommodates up to (4) 4X SHD adapter plates, modules, or cassettes for a total capacity of 96 fibers.
- Features integrated mounting adapter brackets that extend beyond the front and back of the enclosure to facilitate fiber routing and organization.
- Compatible with standard 19-inch telco racks for integration into existing network environments.
- Includes a rear-mounted fiber lacing bar to provide support and organization for incoming trunk cables.
- Constructed from .095-inch cold-rolled steel and .064-inch aluminum to ensure structural stability.
- Finished with an electrostatically applied black powder coat for environmental protection.
Technical Specifications
| Product Type | 1RU 4X Slim High Density Enclosure |
| Dimensions | 17.18"L x 16.12"W x 1.72"H |
| Weight (Empty) | 4.0 lbs |
| Material | .095" C.R. Steel & .064" Aluminum |
| Color | Black (Electro Statically Applied Powder Coat) |
| Rack Compatibility | Standard 19" Telco Rack |
| Fiber Capacity | Up to 96 Fibers (using 4 cassettes) |
| Mounting | Integrated cable management brackets |
