Overview

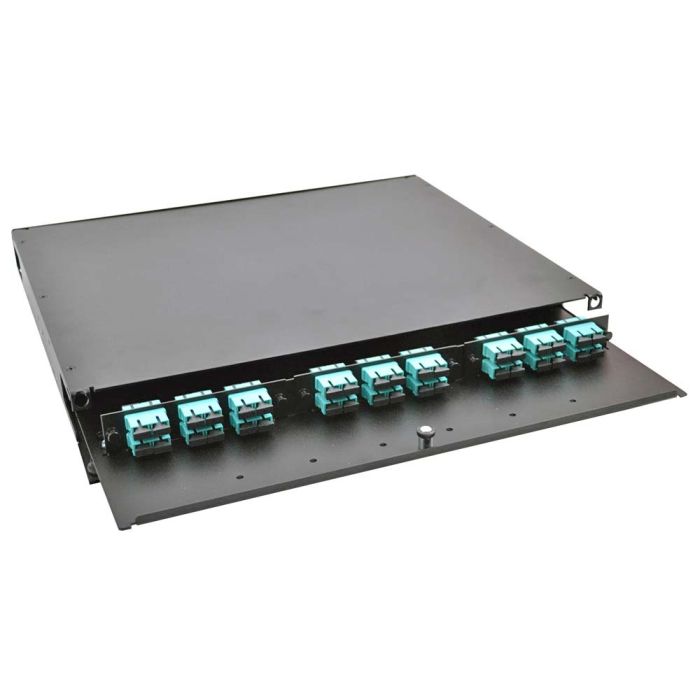

The 1RU Rack Mount Enclosure is a versatile, high-density fiber management solution designed for organized network termination and splicing. This pre-loaded unit is configured with three SC/PC OM3 adapter plates, integrated pigtails, and splice trays to support up to 36 fibers, making it an ideal choice for data centers and enterprise network environments.
Constructed from rugged 14-gauge aluminum with a black finish, this enclosure offers a durable housing for delicate fiber connections. It features hinged front and rear removable doors to ensure easy access for maintenance and cable management. Designed for flexibility, it is compatible with standard 19-inch racks and can be adapted for 23-inch mounting requirements.
Key Features
-
High-Density Capacity
Comes pre-loaded with three SC/PC OM3 adapter plates to support 36 fiber connections, saving installation time. -
Durable Construction
Manufactured from 14-gauge aluminum, providing a robust and lightweight protective housing. -
Optimized Cable Management
Includes multiple tie-downs and cable retention brackets to maintain proper bend radius and organization. -
Easy Accessibility
Hinged front and rear doors are fully removable, facilitating quick access for routine inspection and troubleshooting. -
Versatile Mounting
Standard 19-inch rack mounting allows for seamless integration into existing server cabinets. -
Fiber Protection
Integrated splice trays ensure fiber splices are secured and protected from environmental interference.
Applications
- Data Centers
- Enterprise Network Infrastructure
- Telecommunications Closets
- Local Area Networks (LAN)
Technical Specifications
| Specification | Value |
|---|---|
| Rack Height | 1RU |
| Fiber Count | 36 Fibers |
| Adapter Type | SC/PC (Duplex) |
| Fiber Mode | OM3 Multimode |
| Housing Material | 14 Gauge Aluminum |
| Dimensions | 17"W x 14"D x 1.75"H |
| Mounting Compatibility | 19" or 23" (23" requires optional brackets) |
Frequently Asked Questions
Is the rack mount kit included for 23-inch racks?
No, the 23-inch mounting brackets are sold separately.
What is the fiber capacity of this enclosure?
This specific unit is configured for 36 fiber terminations.
Are the doors removable?
Yes, the front and rear doors are hinged and fully removable for easy access.
What gauge aluminum is used?
The enclosure is constructed from rugged 14-gauge aluminum.
Does this unit include internal cable management?
Yes, it features integrated tie-downs and cable retention brackets.
