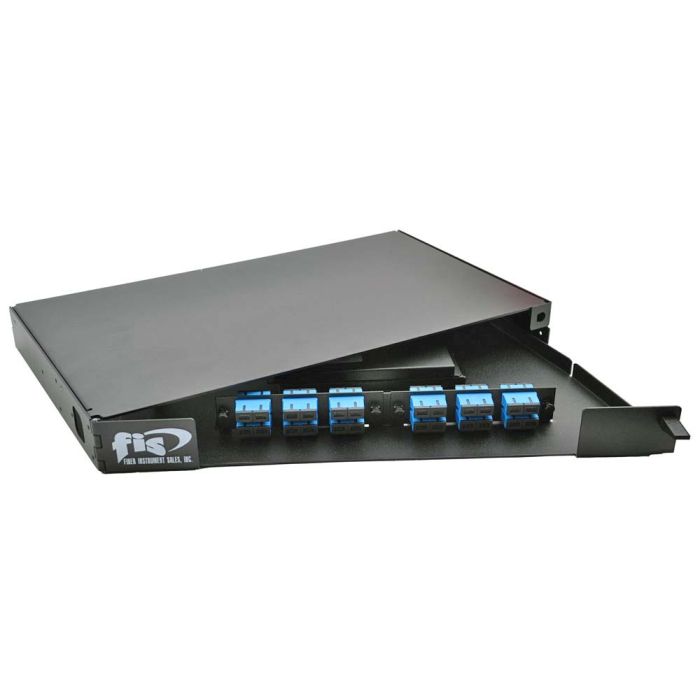

1RU Swing Out Rack Mount Enclosure Loaded with 2 Duplex SC/UPC Plates & Splice Trays Black

Overview

The 1RU Swing Out Patch Panel is a professional-grade fiber management enclosure designed for high and low-density patching and splicing applications. Engineered for standard 19-inch racks, this unit provides a versatile solution for housing fiber terminations and organizing fiber links within data centers and telecommunications environments.

Constructed from rugged 14-gauge aluminum and finished in black, the enclosure features a swing-out shelf that ensures easy, unobstructed access to the internal patch and splice bay. The unit includes comprehensive cable management features, including multiple tie-down points and cable retention brackets, allowing for organized routing and strain relief.

Key Features

• Swing Out Shelf
  The shelf mechanism pivots to allow quick, easy access to fiber splices and connectors.
• Rack Compatibility
  Designed for 19-inch rack mounting with optional 23-inch brackets available for broader infrastructure compatibility.
• Loaded Configuration
  Comes pre-loaded with two LGX adapter plates and two 12-position splice trays for immediate deployment.
• Integrated Cable Management
  Features multiple tie-down points and cable retention brackets to maintain clean, organized fiber routing.
• Flexible Mounting Options
  Supports both flush mounting and a 3.5-inch protrusion mounting style without needing extra accessories.
• Durable Construction
  Built from 14-gauge aluminum to provide a lightweight yet rugged housing for sensitive fiber connections.

Applications

• Data center fiber cross-connects
• Telecommunications distribution frames
• Local Area Network (LAN) fiber terminations
• High and low-density fiber splicing environments

Technical Specifications

Frequently Asked Questions

Can this unit be mounted in a 23-inch rack?
Yes, the enclosure is compatible with 23-inch racks, though the required mounting brackets must be purchased separately.

Does the unit come with splice trays?
Yes, this specific model comes pre-loaded with two 12-position splice trays.

Is the swing-out feature standard?
Yes, the swing-out shelf is a standard feature designed to provide easy access for maintenance and cable management.

What type of adapter plates are compatible?
The enclosure is designed to accommodate standard LGX footprint adapter plates.

Can the enclosure be flush-mounted?
Yes, the unit supports both flush mounting and 3.5-inch protrusion mounting without requiring additional accessories.
