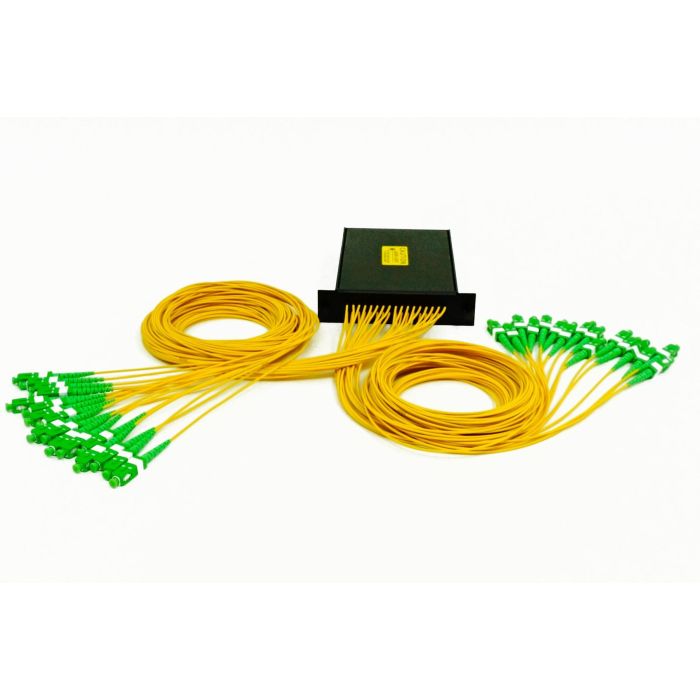

The 1x16 PLC (Planar Lightwave Circuit) Splitter Module is a high-performance component designed for reliable signal distribution in FTTx, PON (Passive Optical Network), and CATV network environments. This module features a compact, half-LGX footprint with a 0.875-inch height, making it ideal for high-density space management in network cabinets.
Engineered for precision, the unit includes 1.6mm jacketed 2-meter input and output leads terminated with SC/APC connectors. The APC (Angled Physical Contact) polish is specifically utilized to minimize back reflections, which protects sensitive transmission equipment and ensures signal integrity across the operating wavelength range of 1260nm to 1650nm.
Key Features
-
Planar Lightwave Circuit Technology
Utilizes advanced PLC technology to provide uniform signal splitting across all 16 ports. -
SC/APC Connectivity
Pre-terminated with industry-standard SC/APC connectors for rapid deployment and reduced installation time. -
Reduced Back Reflection
APC connector geometry significantly lowers return loss, protecting active transmission hardware. -
Wide Operating Wavelength
Supports a broad operational range from 1260nm to 1650nm, ensuring compatibility with standard PON systems. -
Compact Form Factor
Features a 1/2 LGX (0.875" height) footprint, maximizing space efficiency in modular rack systems. -
Jacketed Lead Protection
Equipped with 1.6mm jacketed leads to provide environmental protection and strain relief for fiber pigtails.
Applications
- FTTx Deployments
- Passive Optical Networks (PON)
- CATV Network Infrastructure
- Central Office/Headend Signal Distribution
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z116LGXSCA2HD |
| Configuration | 1x16 |
| Connector Type | SC/APC |
| Operating Wavelength | 1260 - 1650 nm |
| Lead Type | 1.6mm Jacketed |
| Lead Length | 2 Meters |
| Footprint | 1/2 LGX (0.875" H) |
Frequently Asked Questions
What is the primary benefit of the APC polish?
APC polish creates an angled end face that reduces back reflections, which is crucial for preventing damage to transmission equipment in high-speed networks.
Is this module compatible with standard LGX racks?
Yes, it is designed for an LGX footprint, specifically compatible with the XL Zeus Fiber Management Center.
What is the operating wavelength range?
The module is designed for operation between 1260nm and 1650nm.
Does this include test documentation?
Yes, test reports are provided at 1310nm and 1550nm.
Where should this splitter be installed?
This module is intended for use in PON cabinets.
