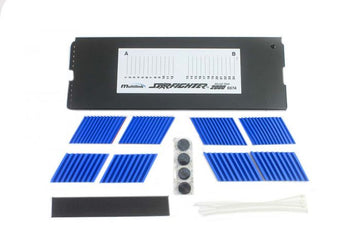

24-Position Fiber Optic Splice Tray (Starfighter Style, Aluminum Construction)

This 24-position fiber optic splice tray is designed for high-density splice organization and secure fiber routing within splice closures, wall-mount enclosures, and rack-mount patch and splice panels. The tray supports multiple splice types while maintaining proper fiber bend radius and structured buffer tube management.

The tray accommodates fusion, mechanical, or mass ribbon fiber splices and supports both in-line and butt configurations with buffer tube entry points on both ends. An all-aluminum base and lid provide excellent rigidity and long-term durability, with a black powder-coated finish suitable for demanding network environments. The tray is designed to meet Telecordia GR-769 requirements for splice organizer assemblies.

Download product spec sheet (PDF)

Specifications

• Holds up to 24 fusion splices

• Also supports 16 mechanical splices or 8 mass ribbon (12-fiber) splices

• Compatible with 40 mm or 60 mm splice protection sleeves

• Dual-ended buffer tube entry for in-line or butt configurations

• Maintains minimum fiber bend radius

• Base material: Aluminum

• Cover material: Aluminum

• Finish: Black powder coat

• Dimensions: 11.75" L x 4.0" W x 0.5" H

• Designed for installation in splice closures and wall or rack mount patch & splice enclosures

• Compliant with Telecordia GR-769 standards
