Overview

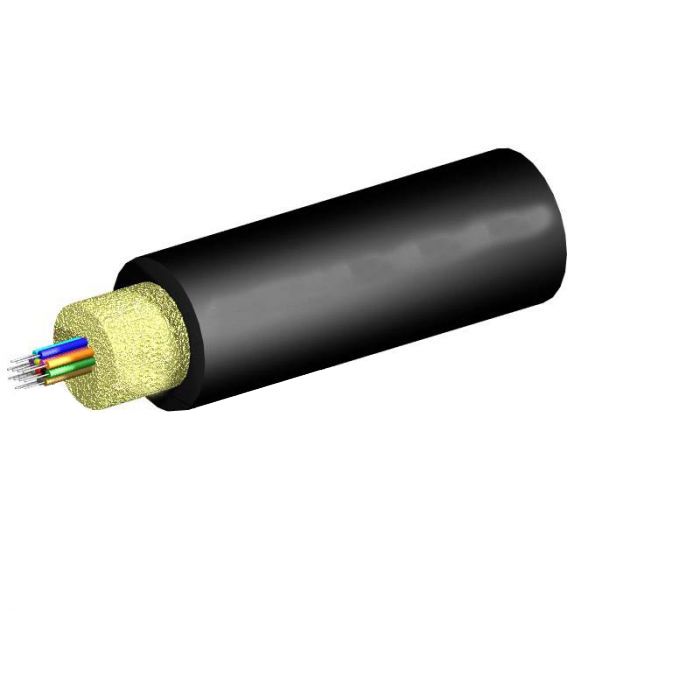

The 24-fiber Multimode 50um OM3 distribution cable is designed for high-density indoor networking applications requiring added physical protection. Featuring 900um tight-buffered fibers, this cable allows for efficient direct termination of connectors without the need for additional breakout kits, streamlining installation in data centers and enterprise environments.
The cable incorporates aluminum interlocking armor (AIA), providing superior crush resistance and mechanical durability suitable for high-traffic or demanding riser-rated spaces. This robust construction helps protect the integrity of the fiber links in critical distribution pathways.
Key Features
-
900um Tight Buffered Fibers
Facilitates faster and easier connector termination by eliminating the need for breakout kits. -
Aluminum Interlocking Armor (AIA)
Provides a high level of physical protection against crush and impact forces during deployment. -
OM3 Laser-Optimized Fiber
Supports high-speed data transmission requirements for 10 Gigabit Ethernet applications. -
Riser-Rated Jacket
Engineered for installation in vertical riser applications, meeting specific safety standards. -
Compact Distribution Design
Optimizes conduit space while ensuring protected, organized cable routing. -
Multi-Fiber Subunits
Fiber counts are grouped in subunits of 12 for improved cable management and identification.
Applications
- Data center backbone cabling
- Enterprise network distribution
- Horizontal indoor fiber runs
- High-density fiber optic patching
- Applications requiring mechanical protection in riser spaces
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Mode | Multimode (OM3) |
| Core Size | 50um |
| Buffer Size | 900um Tight Buffered |
| Armor Type | Aluminum Interlocking Armor (AIA) |
| Jacket Rating | Riser |
| Jacket Color | Aqua |
| Outer Diameter | 16.6mm |
Frequently Asked Questions
What does the AIA designation mean?
AIA stands for Aluminum Interlocking Armor, which is a spirally wrapped aluminum outer layer providing enhanced physical protection against crush and damage.
Do I need breakout kits for this cable?
No, because this cable features 900um tight buffered fibers, you can terminate connectors directly onto the fibers without extra kits.
Is this cable suitable for outdoor use?
No, this cable is designed for indoor riser applications. For outdoor environments, OSP-rated cables should be utilized.
How are the 24 fibers organized inside the cable?
The fibers are grouped into subunits of 12 fibers each to facilitate easier cable management and identification.
Can this cable be used for 10GbE?
Yes, the OM3 50um fiber is laser-optimized for 10 Gigabit Ethernet transmission over specified distances.
