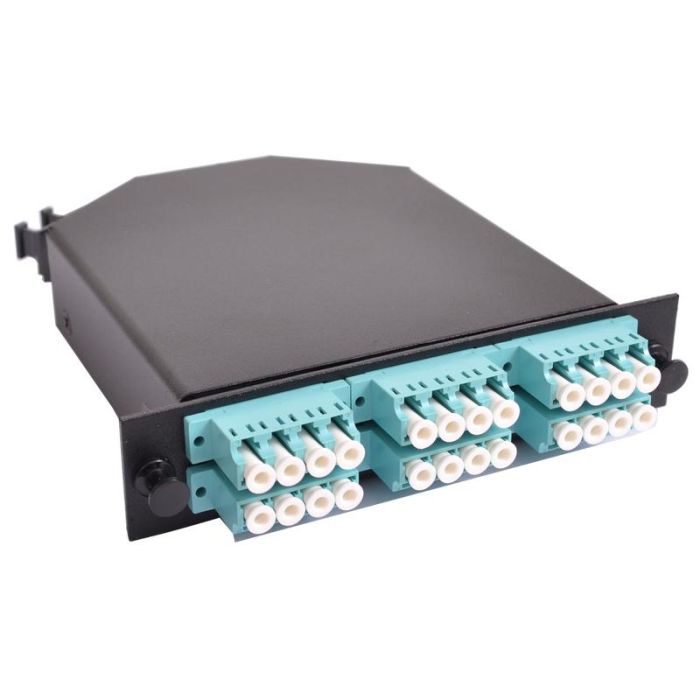

24 Fiber MPO Breakout Cassette, MM 50um OM3, MTP/PC Female LC/UPC, Type A
Overview
The 24 Fiber MPO Breakout Cassette is a pre-terminated, modular system designed to facilitate the transition from MPO backbone cabling to individual LC duplex connectors. This unit is constructed to fit within standard rack or wall mount enclosures that utilize an LGX mounting footprint, providing an organized interface for high-density fiber environments.
Key Features
- Pre-Terminated Interface: Eliminates the requirement for in-the-field fiber terminations, reducing installation labor and time.
- LGX Compatibility: Features a standard 4.6-inch pin-to-pin mounting dimension, ensuring compatibility with existing rack and wall mount enclosures.
- Type A Connectivity: Engineered with a Type A connectivity method to ensure proper link polarity when used with matching system components.
- High-Density Design: Manages 24 fibers in a single cassette, which assists in simplifying cable organization within high-density network racks.
- Durable Construction: Manufactured using powder-coated aluminum, providing a stable housing for sensitive fiber connections.
Technical Specifications
| Specification | Detail |
|---|---|
| Fiber Count | 24 Fibers |
| Fiber Type | Multimode 50um OM3 |
| Rear Interface | (2) 12F MPO Adapters, Female |
| Front Interface | (6) Duplex LC Adapters |
| Connectivity Method | Type A |
| Housing Material | Powder Coated Aluminum |
| Mounting Format | LGX Compatible |
| Mounting Pin to Pin | 4.6 inches |
| Front Plate Dimensions | 5.1 inches x 1.13 inches |
| Rear Chassis Dimensions | 4 inches wide x 5 inches deep x 1.13 inches thick |
