Overview

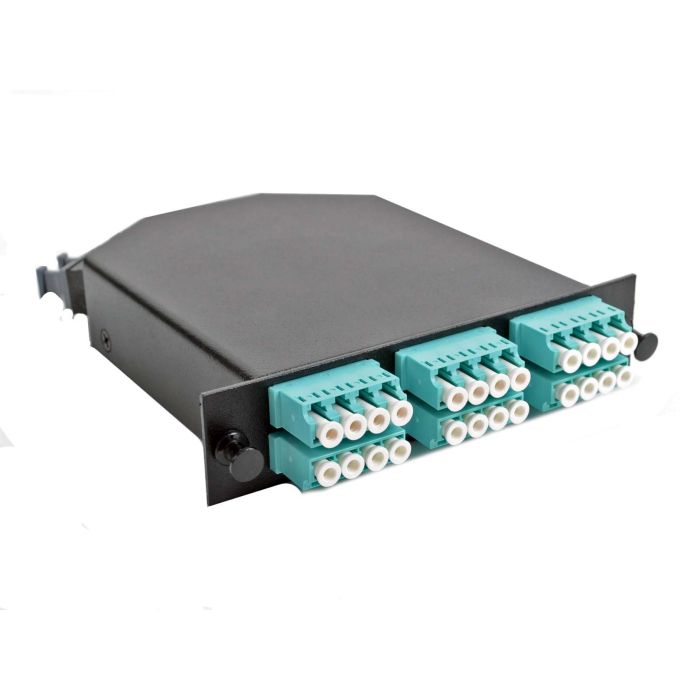

The 24 Fiber MPO Breakout Cassette is a pre-terminated, modular component designed for high-density fiber optic networks. It provides a reliable interface for transitioning MPO backbone cables to individual duplex LC connectors, facilitating faster deployment and simplified cable management in data centers and enterprise environments.
Constructed with an industry-standard LGX mounting footprint, this OM4 multimode cassette is compatible with standard rack and wall mount patch panels. Its factory-tested design ensures consistent performance and supports efficient network upgrades.
Key Features
-
High-Density Connectivity
Features 24 fibers in a compact footprint, maximizing rack space utilization. -
Pre-Terminated Interface
Factory-terminated and tested to reduce field installation time and minimize error rates. -
LGX Compatibility
Designed with the standard LGX form factor for seamless integration into existing modular enclosures. -
Type A Polarity
Maintains a Type A connectivity method to support standard network cabling architectures. -
OM4 Multimode Fiber
Supports high-bandwidth applications using 50/125um laser-optimized multimode fiber. -
LC/UPC to MTP/PC Interface
Provides reliable, low-loss connections for duplex LC patching and MPO trunking.
Applications
- Data center high-density patching
- Enterprise network backbone distribution
- Storage Area Networks (SAN)
- Telecommunications infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 Fiber |
| Fiber Type | Multimode 50um OM4 |
| Connector A (Back) | (2) 12F Elite MTP Adapters, Female |
| Connector B (Front) | (6) Quad LC/UPC Adapters |
| Connectivity Method | Type A |
| Mounting Footprint | LGX |
| Housing Color | Black |
Frequently Asked Questions
What is the connectivity method of this cassette?
This cassette is configured for Type A connectivity.
Is this cassette compatible with my existing rack panels?
It features a standard LGX mounting footprint and is compatible with most standard rack and wall mount panels.
Does this include the MPO trunk cables?
No, the cassette serves as the interface between the MPO backbone and LC patch cords; trunk cables are purchased separately.
What type of fiber is used?
It utilizes 50um OM4 multimode fiber.
Are the MTP adapters male or female?
This model uses female MTP adapters.
