Overview

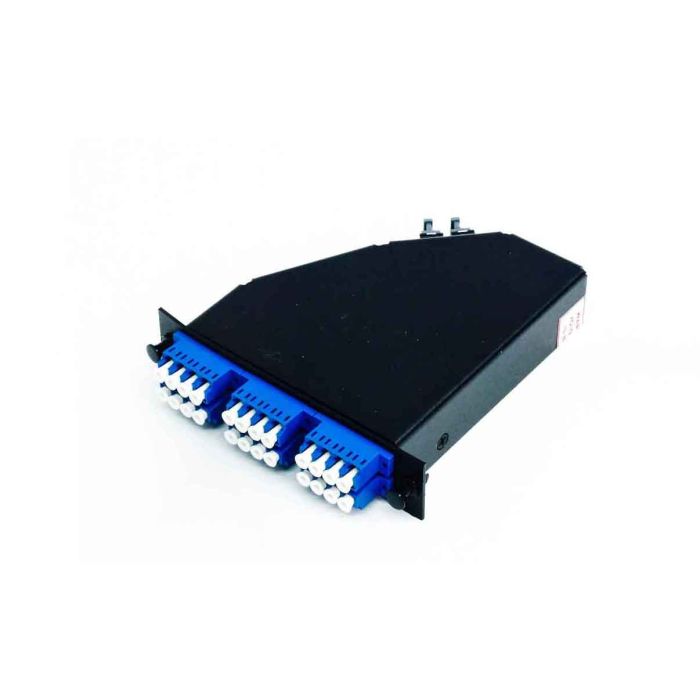

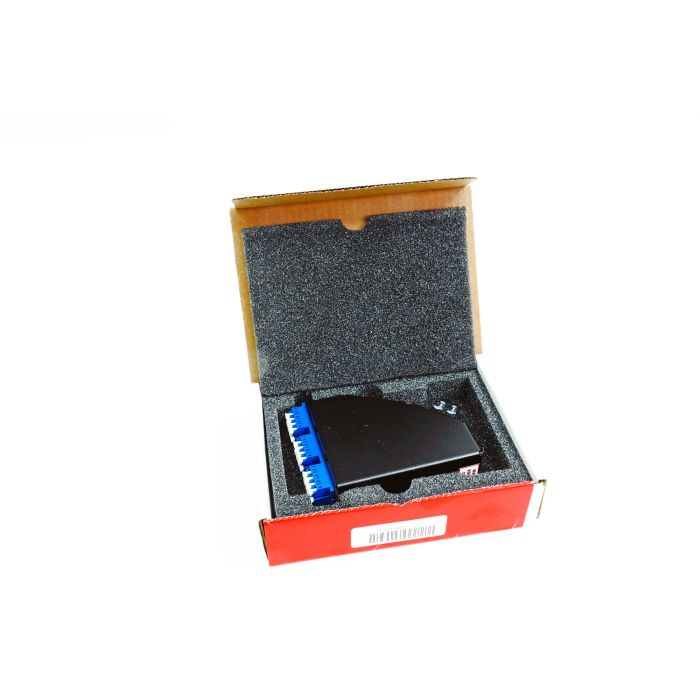

The 24 Fiber MPO Breakout Cassette is a pre-terminated, modular component designed to simplify fiber optic cable management in high-density environments. This cassette serves as an efficient access point for MPO backbone cables, allowing for the transition from high-density MPO trunk cables to individual duplex LC connectors.
Engineered for use in data centers and telecommunications networks, this cassette facilitates rapid deployment and streamlined network upgrades. The unit is housed in a standard LGX mounting footprint, ensuring compatibility with a wide range of rack and wall-mount patch panels.
Key Features
-
Pre-Terminated Design
Factory-terminated and tested, which significantly reduces installation time and minimizes the risk of field termination errors. -
High-Density Transition
Efficiently converts 24 fibers from MPO backbone connectivity to duplex LC connectivity, maximizing space in enclosures. -
LGX Compatibility
Features a universal LGX footprint, making it compatible with existing standard rack and wall-mount patch panels. -
Type A Connectivity
Utilizes a standardized Type A connectivity method to ensure consistent signal polarity throughout the fiber link. -
Singlemode Optimization
Designed for high-performance singlemode fiber networks, ensuring low insertion loss and high signal integrity. -
Robust Housing
Encased in a black, durable chassis that provides protection for internal fiber transitions while maintaining a professional appearance.
Applications
- Data center high-density cabling
- Telecommunications network cross-connects
- Rapid network deployment and expansion
- Enterprise backbone cable management
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 Fiber |
| Fiber Type | Singlemode (SM) |

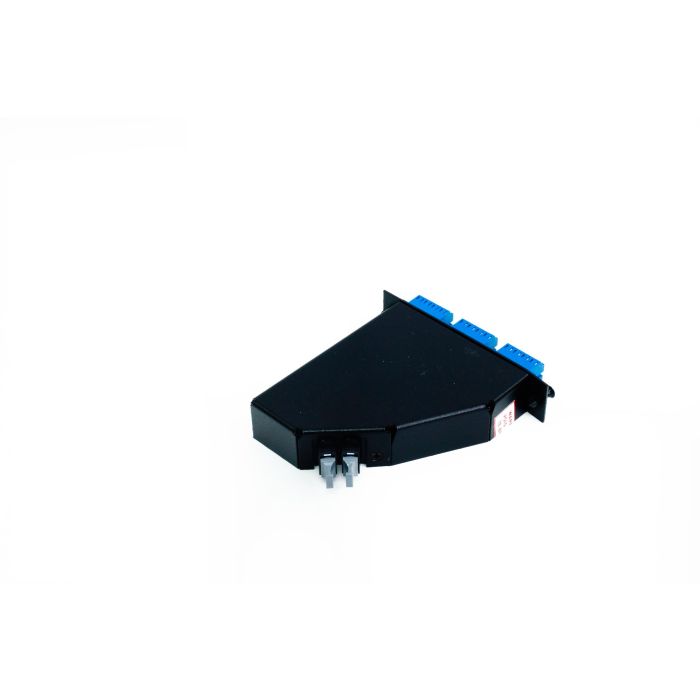

| Back Interface | (2) 12F MPO Adapters, Male |
| Front Interface | (6) Quad LC Adapters |
| Connector Type (Back) | MTP/APC |
| Connector Type (Front) | LC/UPC |
| Connectivity Method | Type A |
| Housing Style | LGX Compatible, Black |
Frequently Asked Questions
What does Type A connectivity mean?
Type A connectivity is a specific wiring method used in MPO systems that maintains the fiber sequence, ensuring that the fiber at position 1 in the trunk cable ends up at position 1 in the cassette.
Is this cassette compatible with all patch panels?
This cassette is designed for any patch panel that supports the standard LGX mounting footprint.
Does this cassette include the MPO cable?
No, this is an MPO breakout cassette only; MPO trunk cables are typically purchased separately.
Are these cassettes factory tested?
Yes, all cassettes are factory-tested prior to shipment to ensure performance standards are met.
Can I use this for multimode fiber?
No, this specific model is optimized for singlemode (SM) fiber applications.
