Overview

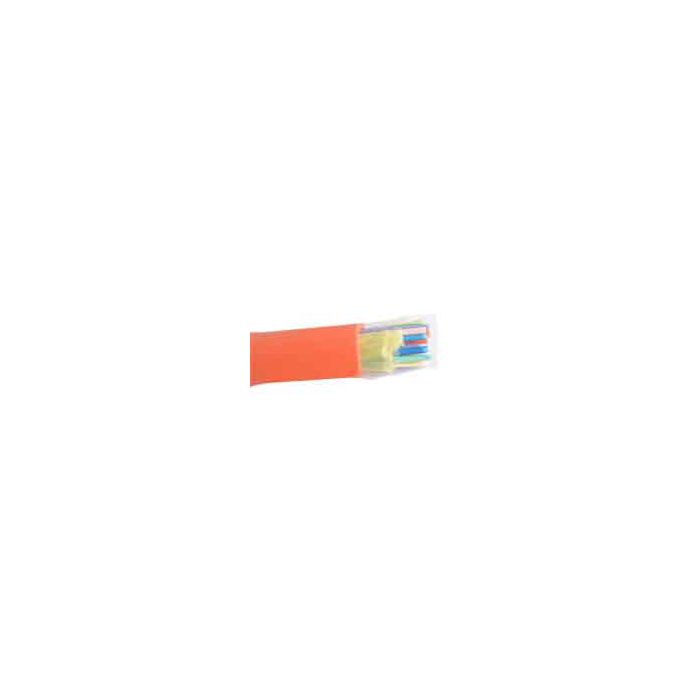

This 24-fiber multimode 50um OM2 distribution cable is engineered for high-density indoor networking applications. Featuring a riser-rated jacket and robust aluminum interlocking armor (AIA), it provides both physical protection and compliance with building safety codes for vertical installations. The cable is designed for environments requiring a balance of durability and efficient fiber management.
The distribution-style construction utilizes 900μm tight-buffered fibers, which allow for direct termination of connectors. This design simplifies installation by eliminating the need for separate breakout kits, saving time during termination. Pigtails can also be easily fusion-spliced to the backbone, making it a versatile choice for data center and enterprise backbones.
Key Features
-
900μm Tight Buffered Fibers
Enables faster termination as connectors can be applied directly without breakout kits. -
Aluminum Interlocking Armor (AIA)
Provides significant crush resistance and physical protection for the internal fibers. -
Riser-Rated Jacket
Compliant with safety standards for vertical cable runs in commercial buildings. -
24-Fiber Count
Provides high-density connectivity for enterprise network backbones. -
Multimode 50μm OM2 Fiber
Optimized for reliable data transmission over medium-distance campus or building backbones. -
Subunit Organization
Fibers are organized in 12-fiber subunits, improving organization and identification during splicing.
Applications
- Indoor building backbones
- Data center trunk cabling
- Enterprise LAN/WAN installations
- Vertical riser applications
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode (OM2) |
| Core Size | 50μm |
| Buffer Type | 900μm Tight Buffered |
| Jacket Rating | Riser (OFCR) |
| Protection | Aluminum Interlocking Armor (AIA) |
| Outer Diameter | 16.6mm |
| Jacket Color | Orange |
Frequently Asked Questions
Does this cable require a breakout kit?
No, the 900μm tight-buffered design allows for direct termination of connectors.
Is this cable suitable for outdoor use?
No, this cable is rated for indoor riser applications.
Can this be used for fusion splicing?
Yes, the fibers are compatible with standard fusion splicing processes for trunk or backbone connectivity.
How are the fibers organized within the cable?
The 24 fibers are arranged into 12-fiber subunits to facilitate cable management.
Is the aluminum armor flexible?
The aluminum interlocking armor provides a rugged, durable shell while maintaining sufficient flexibility for standard conduit installations.
