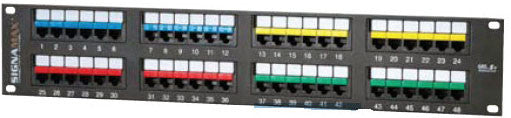

Cat 5e+ 24 port 1U
Move your mouse over image or click to enlarge

Cat 5e+ 24 port 1U

SignaMax Part No.: 24458MD-C5E

  • $ 100.15 or


Category 5e Patch Panels are designed to exceed ANSI/TIA-568-C.2 component, permanent link and channel performance specifica-tions providing usable bandwidth beyond 155 MHz. These high-density panels are available in 12- through 48-port versions and fea-ture enhanced front and rear labeling features for easy circuit identification. Category 5e panels support both T568A and T568B wir-ing schemes using an easy-to-read color-coded wiring label.

Panels are constructed for maximum strength and durability and feature a fully enclosed, modular design, which provides flexibility and protection of printed circuitry during termination. Rear termination is made quick and easy using a 4-pair inline 110-type connec-tor compatible with standard multipair impact tool to reduce installation time or single-position 110 termination tool.

Panels include an integrated cable management feature for cable routing and strain relief requirements. An optional cable manage-ment bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief.

KEY FEATURES

  • Transmission performance exceeds ANSI/TIA-568-C.2 specifications
  • Integrated cable management feature for cable routing and strain relief requirements
  • Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
  • Fully enclosed, 6-port modular design, which provides flexibility and protection of printed circuitry during termination
  • Rear termination is made quick and easy using a 4-pair inline 110 type connector compatible with our multi-pair impact tool to re-duce nstallation time or an industry standard single position 110 termination tool
  • A cable management bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief
  • Rated for at least 750 plug insertions providing for the highest level of system reliability
  • Maximum strength and durability construction

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-C.2: meets or exceeds category 6 (1-250 MHz) component specifications

  • TRANSMISSION MEDIA

Unscreened twisted pair (U/UTP)

  • JACK TYPE

8p8c (8-position, 8-contact) "RJ45" style

  • WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • WIRE GAUGE

22-24 AWG (0.644-0.511 mm)

  • ELECTRICAL

Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 mOhm
IDC contact resistance: max 2.5 mOhm

  • CONSTRUCTION

Panel housing: SAE 1010 1.6 mm (0.063 in), black paint coating
Connector housing: high-impact, flame-retardant UL 94V-0 thermoplastic
Jack spring wire: phosphor bronze alloy plated with 50 ?in of gold over 70-100 ?in of nickel
IDC: 110 type, phosphor bronze alloy with 100-?in 100% tin (Sn) alloy

  • MECHANICAL

Retention force: 50 N (11 lbf) for 60 ñ 5 s
Mating cycle life: min 750 cycles

  • MOUNTING DIMENSIONS

12458MD-C5E: 19" rack mountable, 1.75" (1 RMU) high
24458MD-C5E: 19" rack mountable, 1.75" (1 RMU) high
48458MD-C5E: 19" rack mountable, 3.50" (2 RMU) high

  • ENVIRONMENTAL CONDITIONS

Storage: -40 øC - +70 øC (-40 øF - +158 øF)
Operation: -10 øC - +60 øC (+14 øF - +140 øF)
RH (operation): max non-condensing 93 %

  • COMPLIANCE

ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68 Subpart F, UL 94V-0

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T (up to 55 m (180 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
