Twinax - DataTray  600V Twinaxial Cable 18 AWG FS PR FRPP SH PVC Blue, Cairo

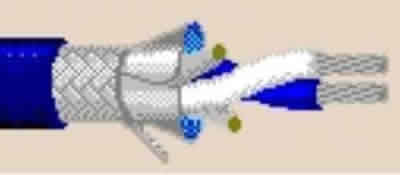

Move your mouse over image or click to enlarge

Twinax - DataTray 600V Twinaxial Cable 18 AWG FS PR FRPP SH PVC Blue, Cairo

FOSCO (Fiber Optics For Sale Co.) Part No.: 3072F-C555000

  • $ 2,275.43 or


Attributes
Coax Type: TWINAXIAL
Impedance: 78 OHM NOMINAL IMPEDANCE
Plenum: GENERAL PURPOSE (CM, CMG, CMX)
Conductor: AWG 18 GAUGE AWG
CONDUCTOR: Type STRANDED CONDUCTOR
Material TINNED COPPER
DIELECTRIC: Material FPO-FOAMED POLYOLEFIN
Braid % 55% BRAID COVERAGE
Braid Matl TINNED COPPER
SCREEN/SHIELD: Type BOTH, BRAID OVER FOIL
JACKETING: Material PVC-POLYVINYLCHLORIDE, PVC-1
Outdoor NO NOT OUTDOOR GRADE MATERIAL
Flooded NO NOT FLOODED OVER BRAID
SPEC/STND: NEC NEC GENERAL USE
CSA FLAME RATED FOR GENERAL USE
RoHS Compliant: YES
Coax Construction: TWINAXIAL
CONDUCTOR: Diameter 0.046 INCHES
_NEC Rating CM
Conductors 1 Pr Stranded TC
Jacket Color Blue
Jacket Material PVC
Rating CMR/CMG
Shield Foil + 55% TC Braid
Shield & Material Foil + 55% TC Braid
RG Type Twinax
Conductor Stranding/Dia. AWG & Type 7/0.046/18/TC
Approx. Wt. lb./1,000 ft. 69
Weight lb./1,000 ft. 69
Nom. Core O.D. (in.) 0.192
Imped. Ohms 78
Nom. Capacitance (pF/ft.) 19.5
Nom. O.D. (in.) 0.324

Product Sheet:
