Overview

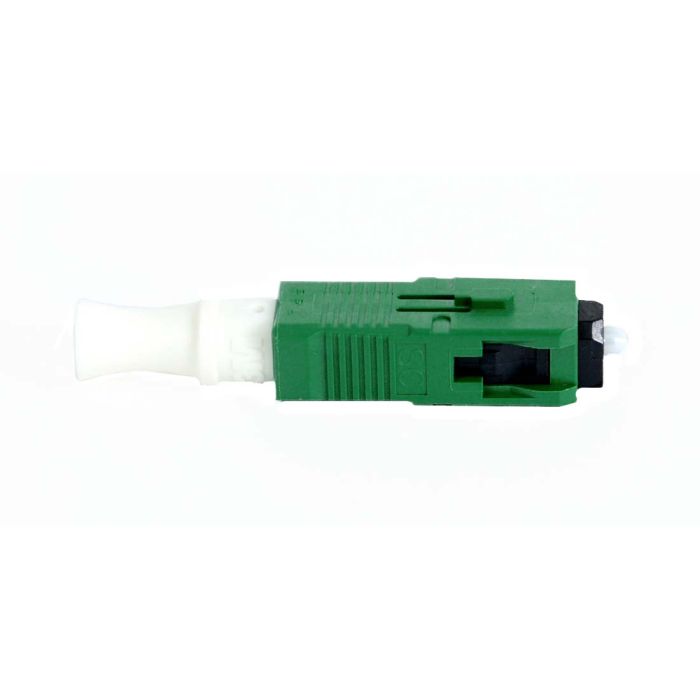

The 3M Crimplok+ Connector is a high-performance, field-installable fiber optic connector designed for rapid and reliable termination of 250\\u00b5m and 900\\u00b5m optical fibers. By eliminating the need for traditional epoxy, adhesives, or splice gels, it significantly reduces assembly time while maintaining high optical integrity in the field.
Engineered with a robust metallic mechanical locking element, these connectors secure the fiber firmly within the assembly. The connector features a thermally balanced design suitable for demanding premises and Fiber-to-the-Premise (FTTP) applications. It is built to operate reliably across a broad temperature range in both indoor and outdoor environments.
The integrated, streamlined boot design ensures ease of use during the termination process, reducing the risk of lost components or improper installation. These connectors offer a professional solution for technicians requiring quick, glue-free field terminations.
Key Features
-
Field Installable
Eliminates the requirement for curing ovens or adhesives for faster deployment. -
No Epoxy or Gel
Uses a clean mechanical process that prevents contamination and reduces prep time. -
Metallic Locking Element
Ensures a secure, long-term fiber hold for consistent optical performance. -
Thermally Balanced Design
Provides stability across wide temperature fluctuations from -40\\u00b0F to 167\\u00b0F. -
Integrated Boot
Attached to the connector body to prevent loss and streamline the installation process. -
Broad Compatibility
Designed to work seamlessly with both 250\\u00b5m and 900\\u00b5m fiber types.
Applications
- Fiber-to-the-Premise (FTTP) networks
- Premises cabling
- Rapid field repairs and restorations
- General fiber optic network installation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Part Number | 8700APC |
| Connector Type | SC/APC |
| Fiber Compatibility | 250\\u00b5m and 900\\u00b5m Singlemode |
| Operating Temperature | -40\\u00b0F to 167\\u00b0F |
Frequently Asked Questions
Does this connector require an oven?
No, the Crimplok+ is a mechanical connector and does not require heat or epoxy for installation.
Is this connector compatible with both 250um and 900um fiber?
Yes, it is designed to accept both 250\\u00b5m and 900\\u00b5m fiber diameters.
Can I use this connector outdoors?
Yes, it is tested for both indoor and outdoor conditions with a temperature range of -40\\u00b0F to 167\\u00b0F.
What tool is required for installation?
The connector uses a dedicated Crimplok+ tool for securing the mechanical lock.
Does the boot come separate?
No, the boot is integrated into the connector body to prevent loss.
