Must be purchased in multiples of qty 12

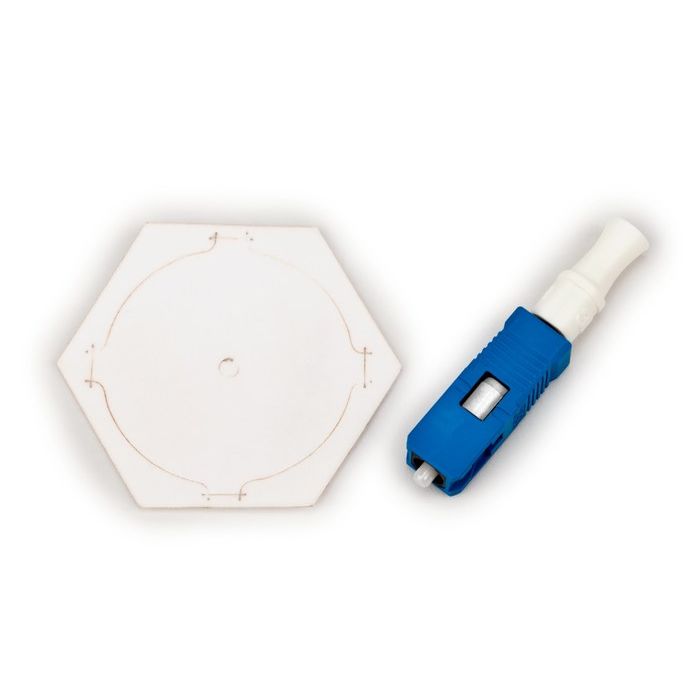

The 3M Crimplok+ SC/UPC connector is a field-installable mechanical fiber optic connector designed for fast, efficient termination without the need for adhesives, gels, or fusion splicing. It utilizes a reliable metallic mechanical locking element to secure the fiber, ensuring a consistent and durable connection in the field.
These connectors are engineered with a thermally balanced design, making them well-suited for a variety of indoor and outdoor premises and FTTP network applications. The integrated, streamlined boot design simplifies the termination process and reduces the risk of misplacing components during installation.
Key Features
-
Mechanical Termination
Eliminates the requirement for epoxy, adhesives, or splice trays for rapid field deployment. -
Broad Operating Temperature
Tested for environmental stability ranging from -40°F to 167°F (-40°C to 75°C). -
Integrated Boot
Streamlined boot attached to the body prevents loss and simplifies the assembly process. -
Fiber Compatibility
Accepts standard 250um and 900um buffered fibers for versatile cabling options. -
SC Compatible
Industry-standard interface allows for seamless integration into existing SC-based hardware. -
Metallic Locking Element
Uses a robust mechanical element to provide secure and stable fiber retention.
Applications
- FTTP (Fiber to the Premises) networks
- Premises cabling
- Indoor and outdoor fiber installations
- Field termination and repair
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Part Number | 8700UPC |
| Connector Type | SC/UPC |
| Fiber Mode | Singlemode |
| Compatibility | 250um and 900um fibers |
| Operating Temperature | -40°F to 167°F (-40°C to 75°C) |
Frequently Asked Questions
Does this connector require epoxy?
No, the Crimplok+ series uses a mechanical locking element and does not require any adhesives, gels, or polishing materials.
What fiber sizes does it accept?
It is designed to terminate both 250um and 900um buffered singlemode fibers.
Is it suitable for outdoor use?
Yes, the connector is tested to perform in environmental conditions from -40°F to 167°F, making it suitable for both indoor and outdoor applications.
What is the minimum purchase quantity?
These connectors must be purchased in multiples of 12.
What type of polishing does the connector have?
This specific model is a UPC (Ultra Physical Contact) connector.
