Overview

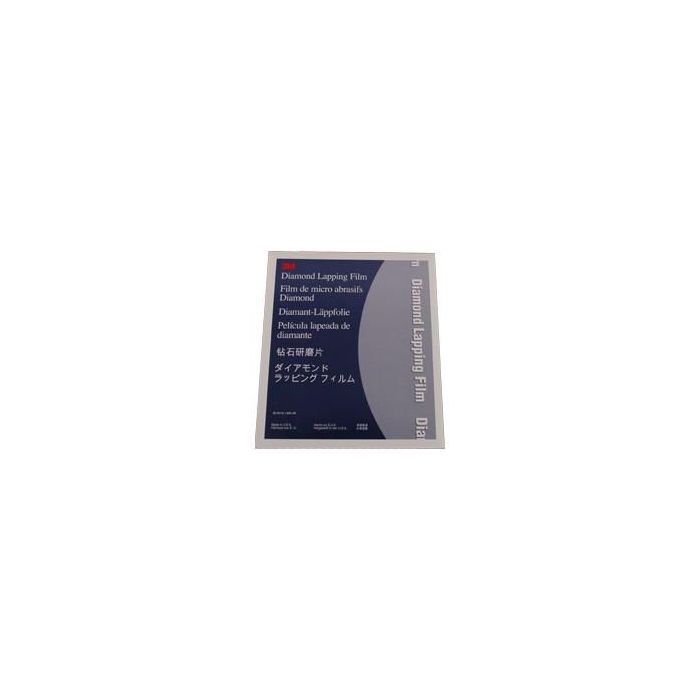

3M Diamond Lapping Films are precision-engineered abrasives designed for high-performance fiber optic connector polishing. Consisting of tightly graded diamond mineral particles uniformly coated onto a high-strength polyester film backing, these films deliver consistent material removal and a superior surface finish across the entire life of the product.
These lapping films are intended for critical polishing applications where surface finish quality and geometry are essential. By providing uniform abrasion, they help eliminate the need for liquid slurries, reducing environmental waste and streamlining the overall connectorization process for technicians and data center operators.
Key Features
-
Uniform Diamond Coating
Ensures consistent material removal and predictable surface finish results. -
Polyester Film Backing
Provides a durable and stable substrate for repeatable polishing performance. -
Slurry-Free Polishing
Eliminates the cleanup and environmental handling issues associated with traditional polishing slurries. -
Long Abrasive Life
Optimized for extended use, resulting in higher throughput and improved process yield. -
Consistent Surface Finish
Delivers high-quality optical face geometry throughout the life of the film. -
Reduced Process Time
Enables faster throughput in volume production environments.
Applications
- Fiber optic connector end-face polishing
- Precision finishing of ceramic ferrules
- General industrial lapping and finishing
Package Contents
- 50 x Diamond Lapping Film Discs (1um)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Part Number | DLF4XN01661X50 |
| Grit Size | 1um |
| Quantity | 50 pack |
| Backing Material | Polyester Film |
Frequently Asked Questions
Are these films pressure-sensitive adhesive (PSA) backed?
The product page indicates availability with or without PSA backing; please verify specific lot requirements if critical.
What is the primary grit size?
This product features a 1 micron (1um) diamond grit.
Can these be used for singlemode connectors?
Yes, diamond lapping film of this micron grade is commonly used for standard fiber optic polishing processes.
How many pieces are included?
This package includes 50 individual lapping film discs.
Do I need water or slurry?
These films are designed to eliminate the need for separate abrasive slurries.
