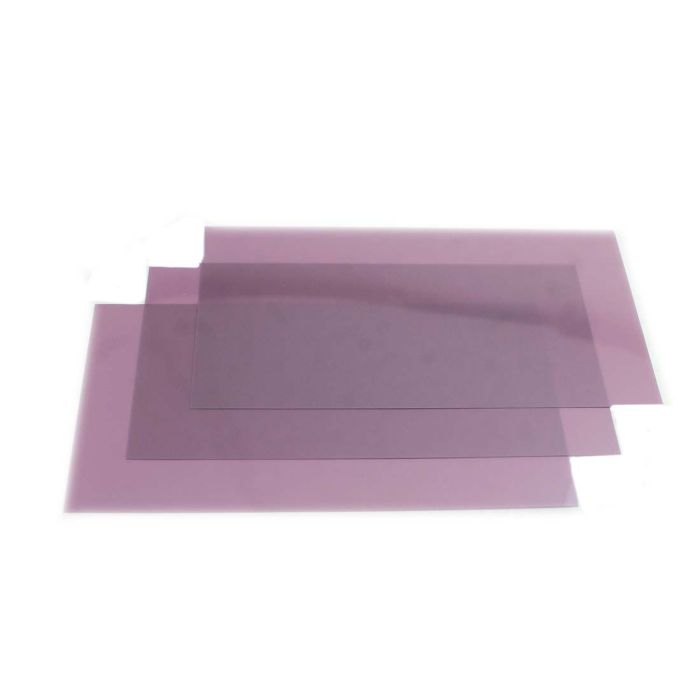

3M Diamond Lapping Film 3x6 1um (25-Pack)

Overview

The 3M Diamond Lapping Film is designed for high-precision fiber optic connector polishing. Utilizing micro-graded diamond abrasives bonded to a uniform 3-mil polyester backing, this film provides consistent and repeatable finishes across various ferrule materials.

Ideal for use in data centers, telecommunications, and field termination environments, these sheets help achieve high connector yields. The film is non-PSA (plain back), making it suitable for standard flat polishing equipment and applications requiring high-quality optical end-faces.

Key Features

• Micro-Graded Abrasives
  Uniform diamond particles ensure consistent material removal and predictable surface finish.
• 3-mil Polyester Backing
  Provides structural stability and durability throughout the polishing cycle.
• Universal Compatibility
  Suitable for polishing ceramic, stainless steel, plastic, and composite ferrules.
• High Yield
  Engineered to minimize re-polishing and maximize throughput in connector fabrication.
• Plain Back Design
  Non-adhesive backing allows for versatile mounting on standard polishing plates.
• Precise Dimensions
  Standard 3-inch by 6-inch format compatible with most common industry polishing machines.

Applications

• Fiber optic connector end-face polishing
• Ferrule refinement
• Precision finishing of ceramic, metallic, and composite components

Package Contents

• 25 sheets of 1um Diamond Lapping Film (3" x 6")

Technical Specifications

Frequently Asked Questions

Is this film self-adhesive?
No, this is a plain back film without PSA.

What ferrule materials can this polish?
It is effective on ceramic, stainless steel, plastic, and composite ferrules.

What is the grit size?
The abrasive grit is 1 micron.

Are these sheets pre-cut?
Yes, they are pre-cut to 3" x 6" dimensions.

How many sheets come in a pack?
Each pack contains 25 sheets.

Downloads

• Product PDF
