Overview

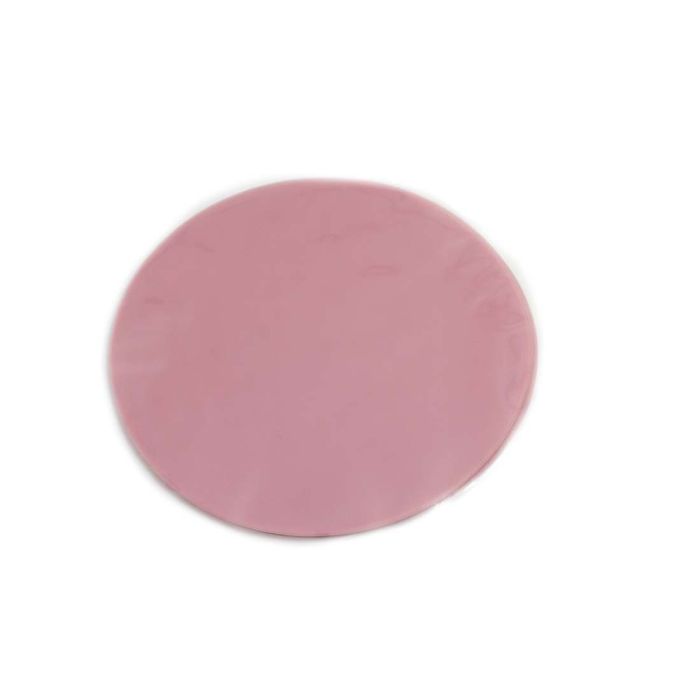

3M Diamond Lapping Films consist of precisely graded diamond minerals uniformly coated onto a durable polyester backing. Designed for high-precision fiber optic polishing, these films are engineered to provide consistent cutting rates and exceptional surface finishes throughout the life of the product.
These 5-inch lapping discs are ideal for demanding connectorization environments, including data centers, manufacturing facilities, and field termination sites. By providing a stable, uniform abrasive surface, they help reduce overall process time and achieve high manufacturing yields while eliminating the need for messy liquid slurries.
Key Features
-
Diamond Abrasive Grain
Tightly graded diamond mineral provides consistent, repeatable polishing results across every disc. -
Polyester Film Backing
Durable substrate ensures the film remains flat and resists tearing during intensive polishing cycles. -
High Yield Efficiency
Engineered to maximize throughput in high-volume connector production environments. -
Slurry-Free Application
Operates clean to reduce cleanup time and eliminate the storage and handling of chemical slurries. -
Uniform Finish
Produces a consistent surface geometry for optimal fiber optic transmission performance. -
Extended Product Life
Designed for durability, reducing the frequency of disc changes during polishing processes.
Applications
- Fiber optic connector end-face polishing
- Ceramic ferrule finishing
- Precision optical component lapping
Package Contents
- 25 x 5-inch Diamond Lapping Film Discs
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Diameter | 5 inches |
| Grit Size | 3 micron |
| Quantity | 25 Pack |
| Backing Material | Polyester Film |
Frequently Asked Questions
Are these films backed with adhesive?
This specific SKU is part of the standard 3M diamond lapping film series. Please verify your specific polishing fixture requirements for PSA (Pressure Sensitive Adhesive) compatibility.
What is the primary material used for the abrasive?
These films use high-grade diamond mineral particles to ensure precise, uniform cutting performance on hard materials like ceramic ferrules.
Can these be used for hand polishing?
While primarily designed for machine-based polishing equipment, they can be used in precision hand-polishing pucks if kept flat.
How many discs are in one pack?
Each package contains 25 individual 5-inch discs.
Are these suitable for wet or dry polishing?
3M Diamond Lapping Films are typically used with minimal water or specialized lubricants for optimal results; please refer to the manufacturer safety and usage guide for your specific connector type.
