Overview

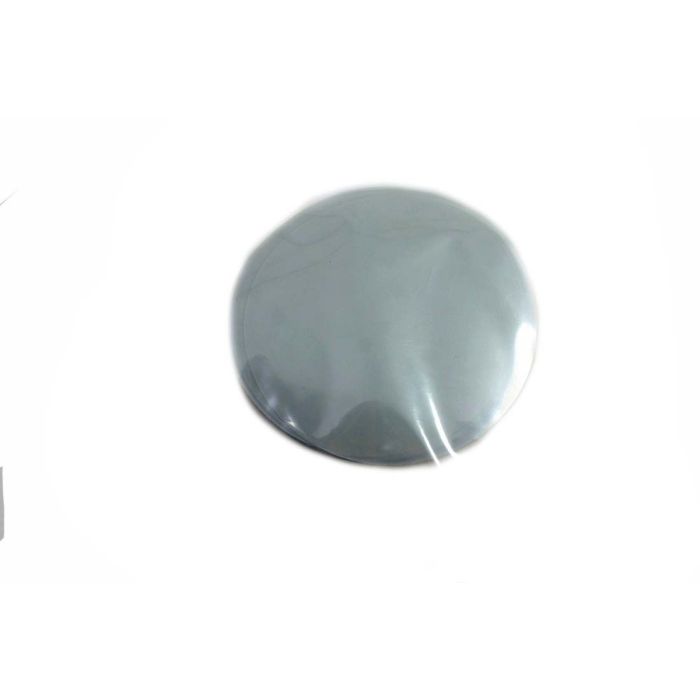

The 3M-EMSD Aluminum Oxide (A/O) Polishing Discs are precision-engineered abrasive films designed for high-performance fiber optic connector termination. These 4-inch discs utilize micro-graded aluminum oxide abrasives bonded to a uniform polyester backing to provide consistent, repeatable surface finishes required for telecommunications and data center applications.
Engineered for versatility, these discs are suitable for polishing a wide variety of ferrule materials, including ceramic, stainless steel, plastic, and composite. By utilizing a non-slurry, dry-polishing process, these films help maintain a clean work environment while reducing total processing time and ensuring high connector yields.
Key Features
-
Aluminum Oxide Abrasive
Features precision micro-graded particles for uniform material removal and consistent finish. -
4-inch Diameter
Standardized size for compatibility with most common fiber optic polishing machines. -
Polyester Backing
Provides a stable, uniform substrate that resists tearing and ensures flatness during the polishing process. -
Multi-Material Compatibility
Suitable for use on ceramic, stainless steel, plastic, and composite ferrules. -
Non-Slurry Processing
Enables dry polishing, which eliminates the mess of liquid slurries and simplifies workspace cleanup. -
High Yield Efficiency
Designed to provide repeatable results to minimize connector rework and scrap rates.
Applications
- Fiber optic connector end-face polishing
- Ferrule finishing
- Telecommunications network installation
- Data center cabling maintenance
Package Contents
- 50 x 4-inch Aluminum Oxide Polishing Discs (.3um)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Abrasive Material | Aluminum Oxide (A/O) |
| Disc Diameter | 4 inches |
| Particle Size | 0.3 micron |
| Backing Material | Uniform Polyester |
| Quantity | 50 Discs per Pack |
Frequently Asked Questions
Are these discs suitable for both singlemode and multimode connectors?
Yes, these 0.3 micron aluminum oxide discs are suitable for the final polishing stages of both singlemode and multimode connectors.
Do I need to use water with these polishing films?
These films are designed for high-performance processing, which can often be performed without liquid slurries; however, follow your specific connector termination procedure for best results.
Can these be used on ceramic ferrules?
Yes, these discs are specifically recommended for polishing ceramic, stainless steel, plastic, and composite ferrules.
What is the primary benefit of the micro-graded abrasive?
The micro-graded abrasive ensures a uniform cut rate and surface finish across the entire disc, which results in more consistent connector back-reflection and insertion loss performance.
Are these compatible with standard 4-inch polishing plates?
Yes, they are designed to fit standard 4-inch fiber optic polishing fixtures.
