Overview

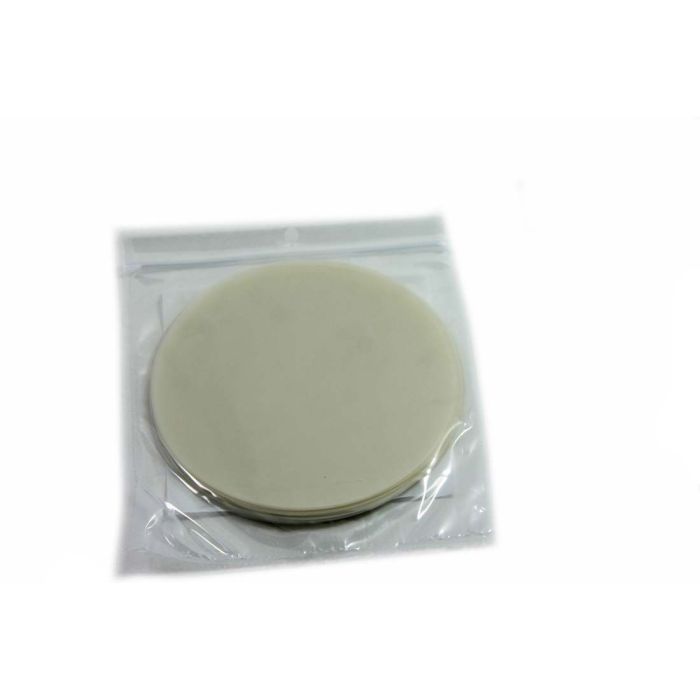

The 3M-EMSD Polish Film 5" Final Step is a professional-grade abrasive designed for the final finishing stages of fiber optic connector termination. This specialized film is engineered to provide a super-smooth end-face finish, which is critical for minimizing back reflection and ensuring optimal signal transmission.
These 5-inch discs utilize micro-graded abrasive particles bonded to a uniform 3 mil polyester backing. This construction ensures consistent, repeatable polishing results across multiple connector types, including ceramic, stainless steel, plastic, and composite ferrules. Designed for efficiency, this film helps maintain high first-pass yields in field and laboratory environments, significantly reducing the need for costly connector rework.
Key Features
-
Micro-Graded Abrasives
Ensures a consistent and uniform removal rate for high-quality, repeatable fiber end-face finishes. -
Precision Polyester Backing
Provides a flat, stable surface for uniform pressure distribution during the polishing process. -
High Connector Yield
Reduces the rate of rejected terminations, saving time and materials in high-volume production. -
Versatile Compatibility
Suitable for use with a wide range of ferrule materials including ceramic, composite, and stainless steel. -
Eliminates Slurries
Dry polishing process removes the need for messy liquids, simplifying cleanup and workspace maintenance. -
Telcordia GR-326 Compliant
Meets established industry standards for back reflection and optical performance.
Applications
- Final polish of fiber optic connector end-faces
- Fiber optic termination and production assembly
- Refurbishment of connector end-faces
- Laboratory fiber preparation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Part Number | 865X5NH50 |
| Disc Diameter | 5 inches |
| Backing Material | 3 mil Polyester |
| Backing Type | Plain (Non-PSA) |
| Abrasive Material | SiO2 |
| Package Quantity | 50 discs |
Frequently Asked Questions
Is this film self-adhesive (PSA)?
No, these discs feature a plain backing and are not PSA (Pressure Sensitive Adhesive).
What ferrule materials can I polish with this film?
It is ideal for ceramic, stainless steel, plastic, and composite ferrules.
Does this meet Telcordia standards?
Yes, this film meets Telcordia GR-326 standards for back reflection.
How many discs are in a pack?
Each package contains 50 polishing discs.
Can I use this for wet polishing?
These are designed to eliminate slurries and are generally used as part of a dry or controlled polishing process to minimize cleanup.
