Overview

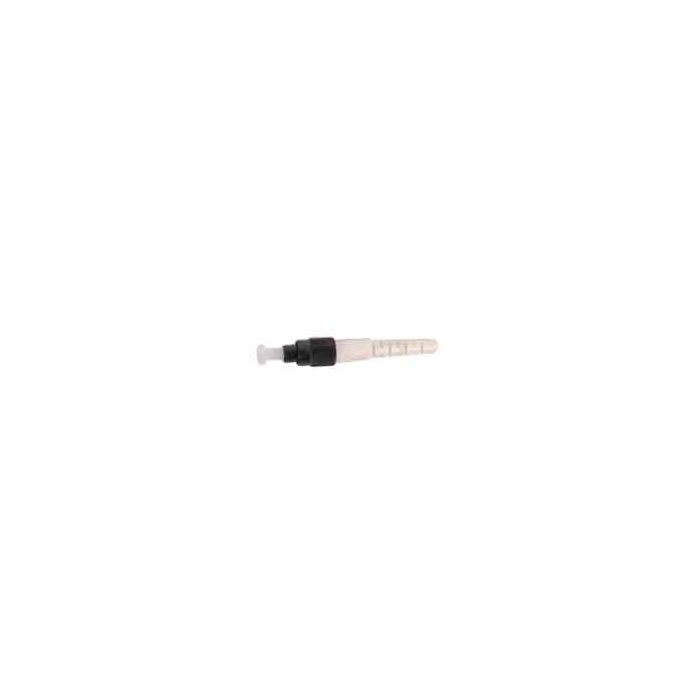

The 3M FC Hot Melt Connector is a field-installable fiber optic connector designed for multimode 125µm fiber applications. Engineered to provide rapid, reliable terminations in the field, this connector utilizes an advanced pre-loaded adhesive technology that eliminates the time-consuming process of mixing and applying separate epoxies.
By streamlining the termination process, these connectors allow technicians to complete terminations in 2 minutes or less. The heat-activated adhesive is also re-heatable, providing the flexibility to reposition the fiber if necessary during installation. These connectors are an ideal choice for network maintenance, repairs, and field deployments where speed and performance are critical.
Key Features
-
Pre-Loaded Adhesive
Features integrated adhesive technology which eliminates the need to mix or apply separate epoxy, reducing preparation time. -
Rapid Termination
Designed for installation in 2 minutes or less, increasing overall field productivity. -
Re-heatable Design
Allows for the adhesive to be re-heated, enabling fiber repositioning if alignment adjustments are required after initial insertion. -
Low Insertion Loss
Delivers consistent optical performance with a typical insertion loss of 0.2dB. -
Standard FC Interface
Compatible with standard FC adapter ports for secure, threaded connections in various equipment setups.
Applications
- Fiber optic network installation
- Field repair and emergency restoration
- Premise wiring and LAN environments
- Fiber testing and monitoring setups
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Model | Hot Melt |
| Part Number | 6200 |
| Connector Style | FC |
| Fiber Type | Multimode |
| Fiber Size | 125µm |
| Typical Insertion Loss | 0.2dB |
Frequently Asked Questions
Does this connector require epoxy?
No, this is a pre-loaded hot melt connector, which eliminates the need for separate epoxy.
How long does it take to terminate?
Termination can be completed in 2 minutes or less.
Can I reposition the fiber after heating?
Yes, the adhesive is re-heatable, allowing for fiber repositioning during the installation process.
What fiber type is this compatible with?
This connector is designed for multimode fiber with a 125µm cladding.
What is the typical insertion loss?
The typical insertion loss for this connector is 0.2dB.
